MPW40-3-U020, Manual Motor Protector, 40A, 16-20A Overload Setting Range, 3-Pole, Screw Terminal, Rotary Handle, IP20

MPW40-3-U020, Manual Motor Protector, 40A, 16-20A Overload Setting Range, 3-Pole, Screw Terminal, Rotary Handle, IP20

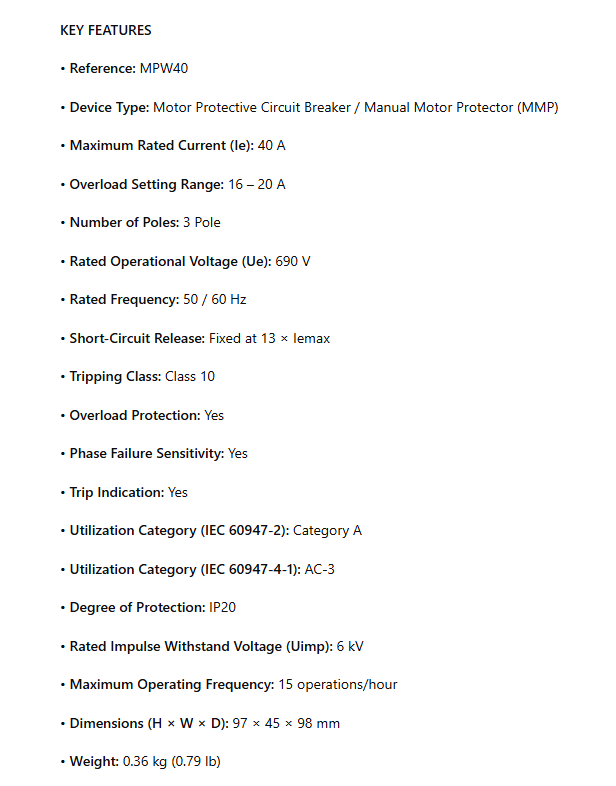

KEY FEATURES

• Reference: MPW40

• Product Type: Motor Protective Circuit Breaker

• Number of Poles: 3

• Maximum Rated Current (Ie): 40 A

• Thermal Release Setting Range: 16–20 A

• Short-Circuit Release: 13 × Ie max

• Rated Operational Voltage (Ue): 690 V

• Rated Operational Frequency: 50 / 60 Hz

• Rated Insulation Voltage (Ui): 690 V

• Impulse Withstand Voltage (Uimp): 6 kV

• Utilization Category (IEC 60947-2): Category A

• Utilization Category (IEC 60947-4-1): AC-3

• Tripping Class: Class 10

• Overload Protection: Yes

• Phase Failure Sensitivity: Yes

• Trip Test & Trip Indication: Yes

• Degree of Protection: IP20

• Maximum Operating Frequency: 15 operations/hour

• Weight: 0.36 kg (0.79 lb)
