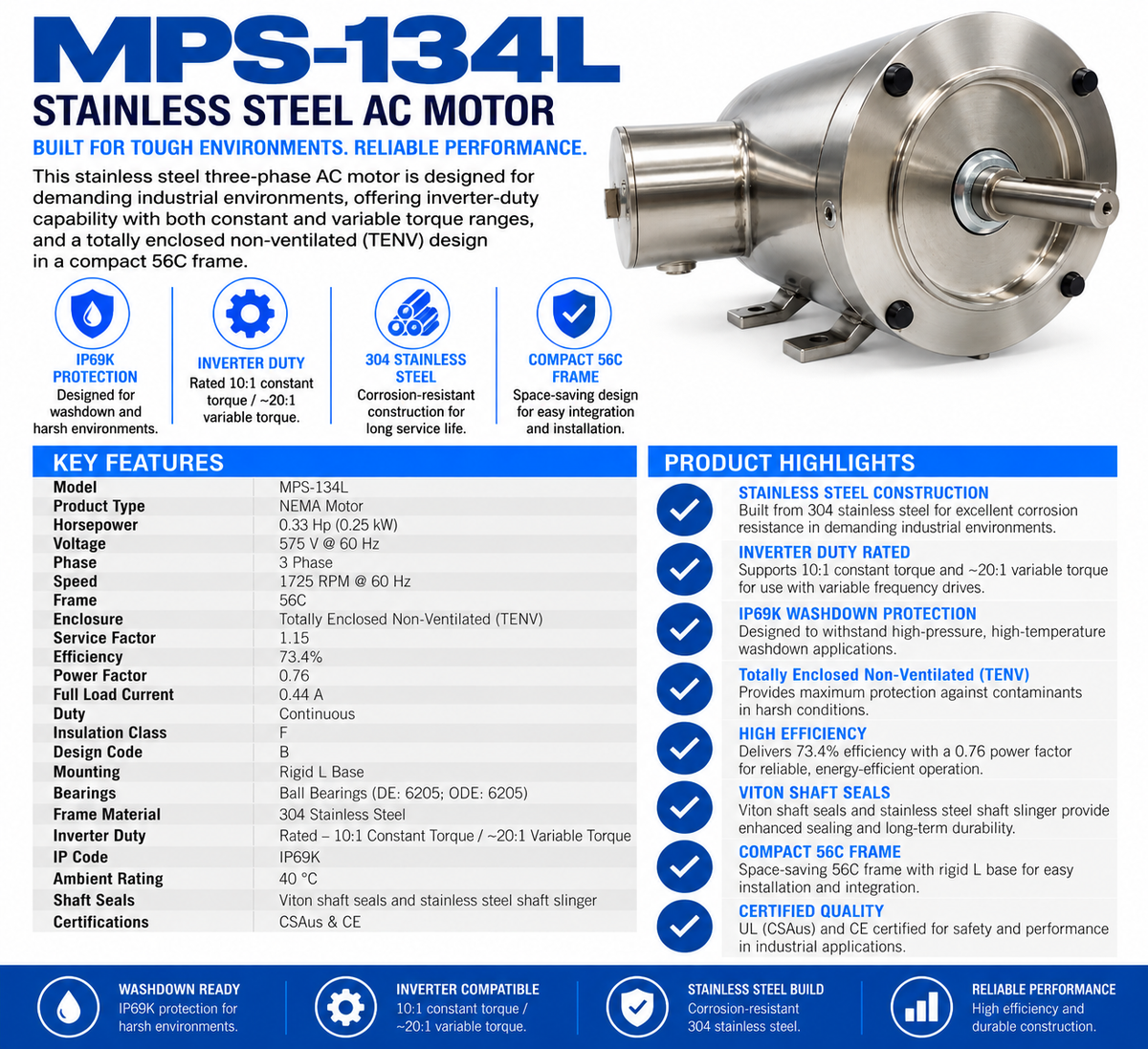

MPS‑134L, 1/3Hp, 1725 RPM, 575 V, 3 Ph, 60 Hz, TENV, Frame 56C

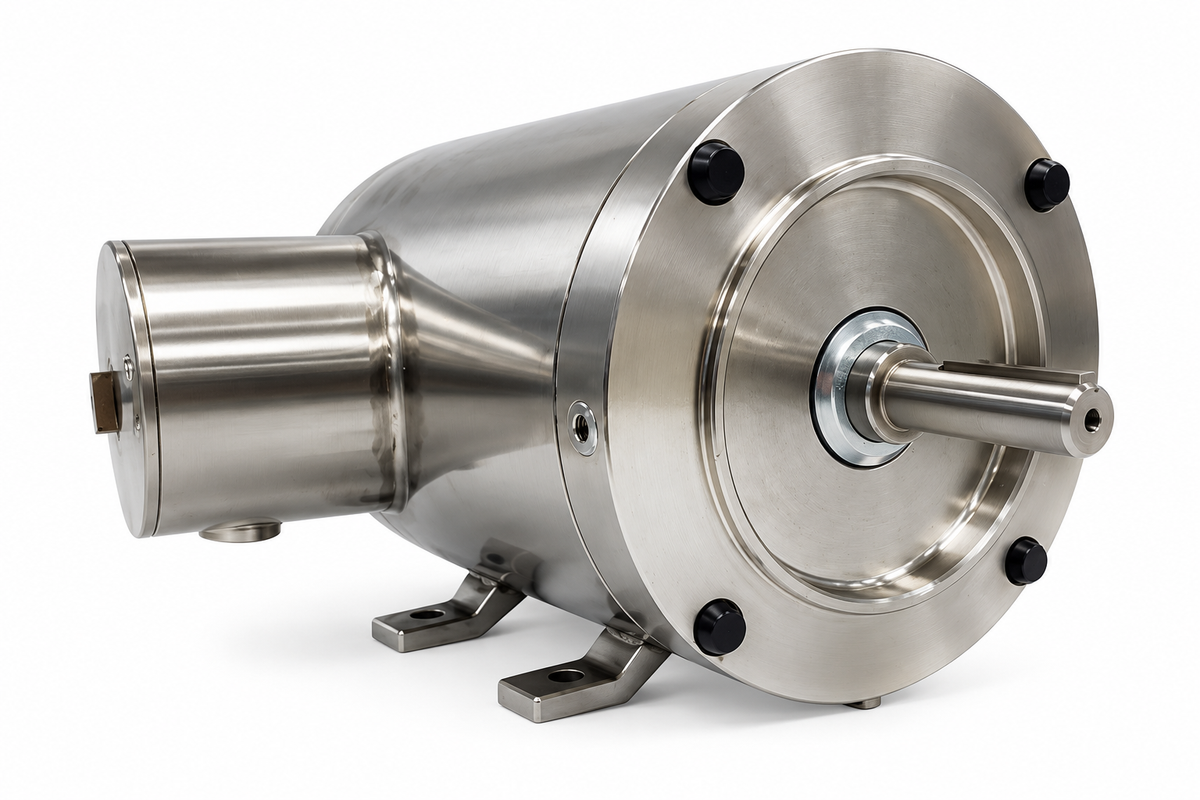

This stainless steel three-phase AC motor is designed for demanding industrial environments, offering inverter-duty capability with both constant and variable torque ranges, and a totally enclosed non-ventilated (TENV) design in a compact 56C frame.

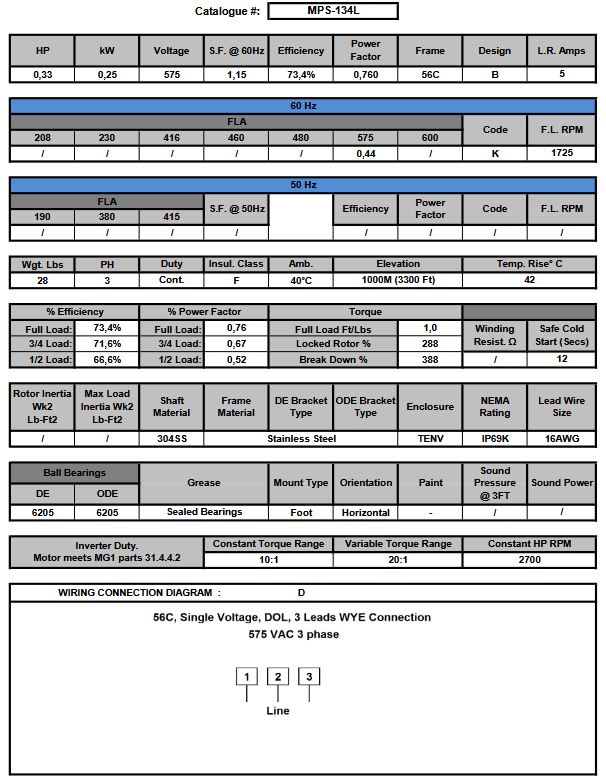

KEY FEATURES

• Model: MPS‑134L

• Product Type: NEMA Motor

• Horsepower: 1/3 Hp (0.25 kW)

• Voltage: 575 V @ 60 Hz – 3 Phase

• Speed: 1725 RPM @ 60 Hz

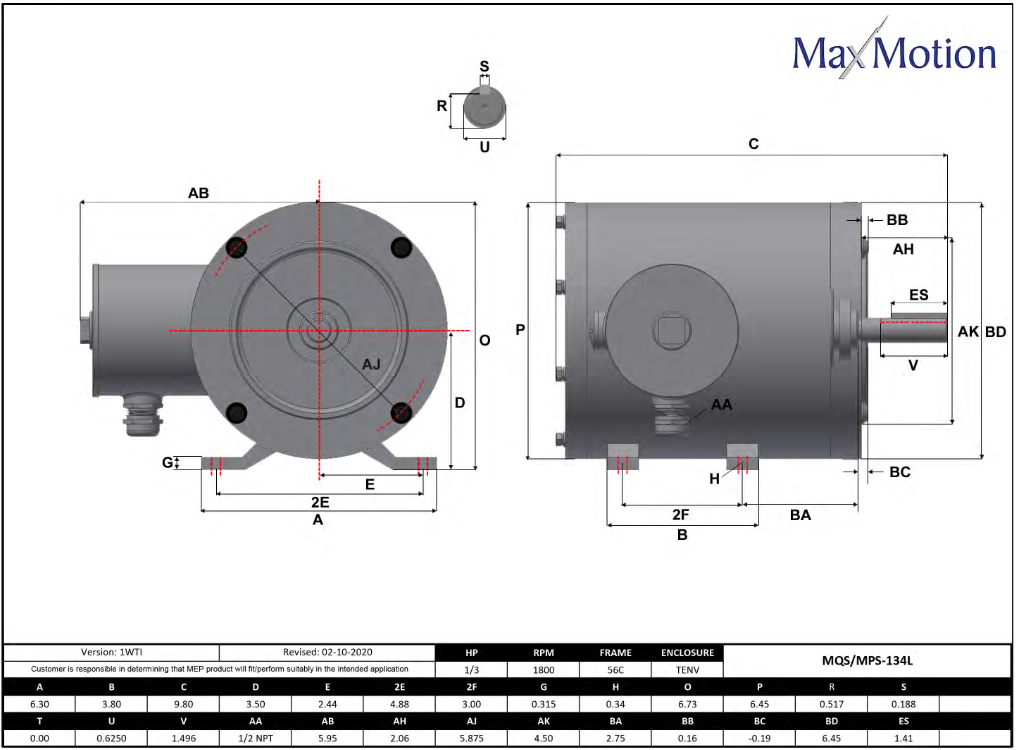

• Frame: 56C

• Enclosure: Totally Enclosed Non-Ventilated (TENV)

• Service Factor: 1.15

• Efficiency: 73.4%

• Power Factor: 0.76

• Current (Full Load): 0.44 A

• Duty: Continuous

• Insulation Class: F

• Design Code: B

• Mounting: Rigid L Base

• Bearings: Ball Bearings (DE: 6205; ODE: 6205)

• Frame Material: 304 Stainless Steel

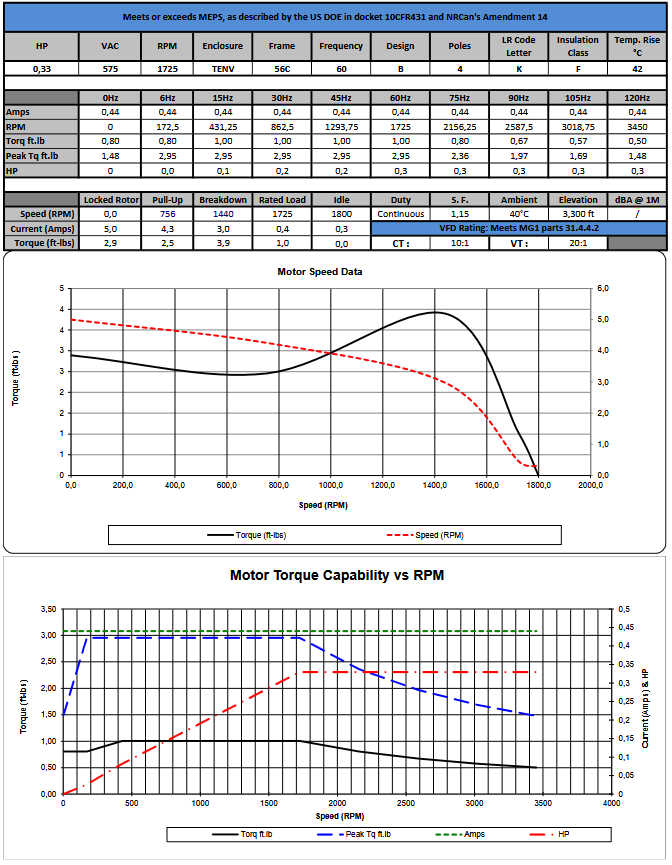

• Inverter Duty: Rated – 10:1 Constant Torque / ~20:1 Variable Torque

• IP Code: IP69K

• Certifications: CSAus & CE

• Ambient Rating: 40 °C

• Special Feature: Viton shaft seals and stainless steel shaft slinger for enhanced protection
