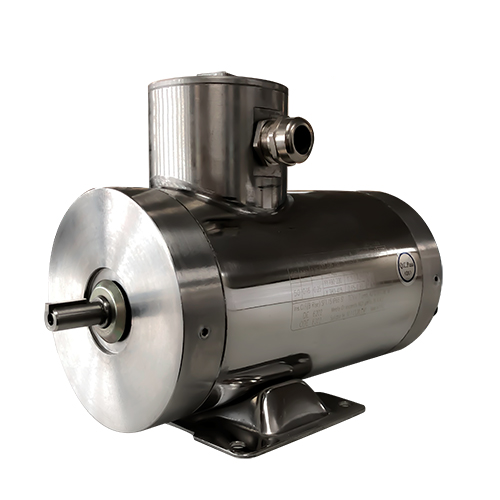

MPS-132S12FC-S3, Metric Motor, 7.5Hp, 3600 RPM, 575V, 3Ph, 60Hz, TEFC, Frame 132S, IP69K

MPS-132S12FC-S3, Metric Motor, 7.5Hp, 3600 RPM, 575V, 3Ph, 60Hz, TEFC, Frame 132S, IP69K

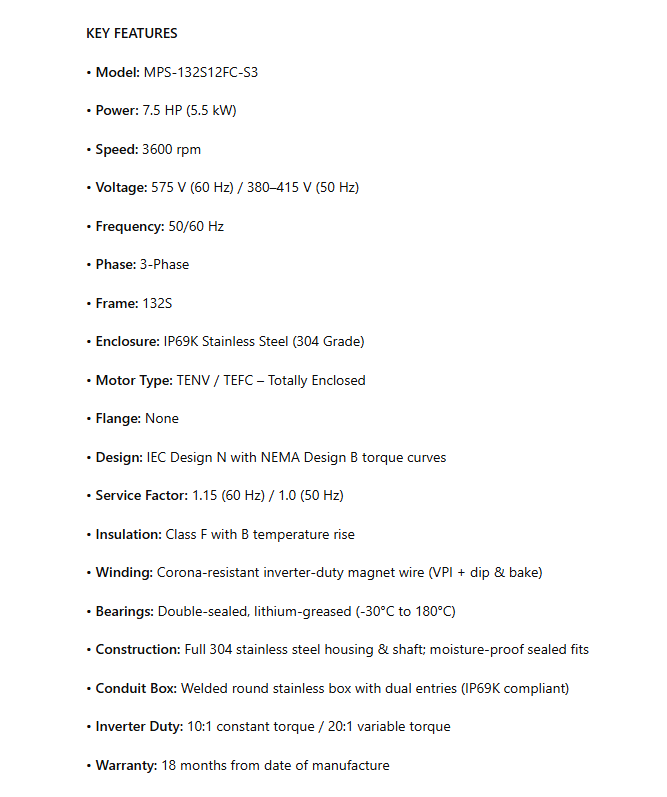

KEY FEATURES

• Model: MPS-132S12FC-S3

• Power: 7.5 HP (5.5 kW)

• Speed: 3600 rpm

• Voltage: 575 V (60 Hz) / 380–415 V (50 Hz)

• Frequency: 50/60 Hz

• Phase: 3-Phase

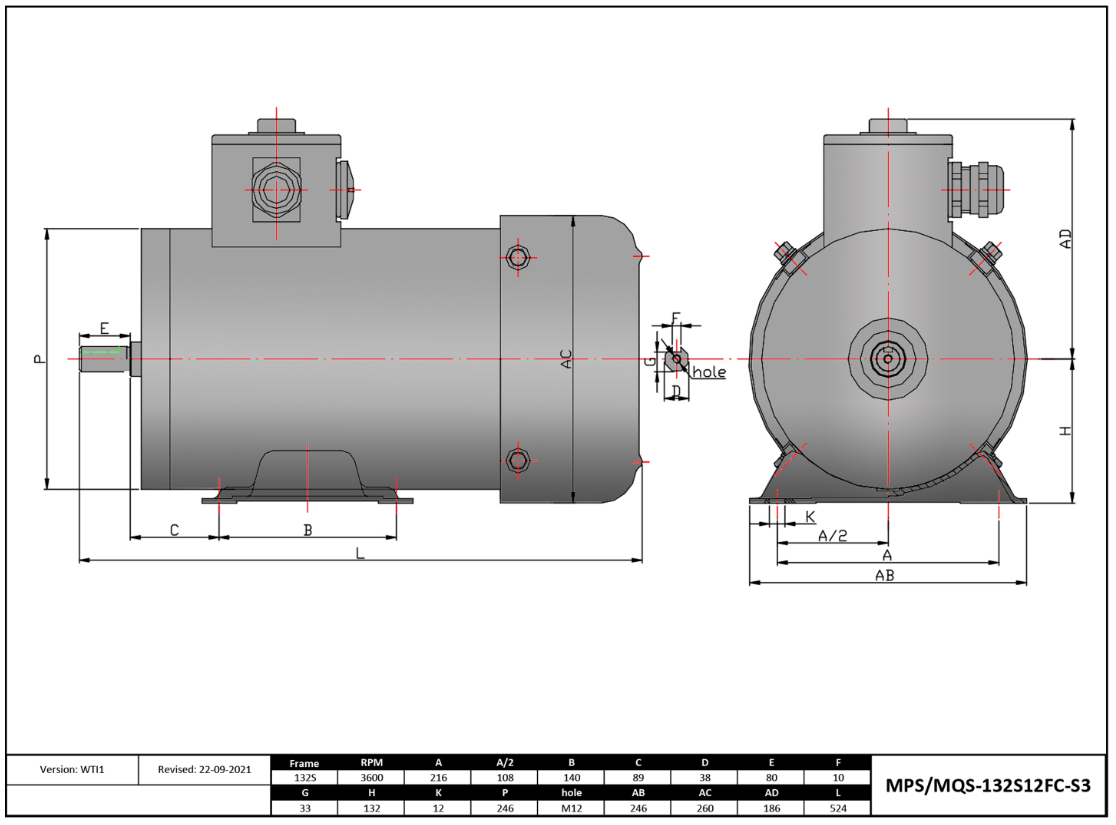

• Frame: 132S

• Enclosure: IP69K Stainless Steel (304 Grade)

• Motor Type: TENV / TEFC – Totally Enclosed

• Flange: None

• Design: IEC Design N with NEMA Design B torque curves

• Service Factor: 1.15 (60 Hz) / 1.0 (50 Hz)

• Insulation: Class F with B temperature rise

• Winding: Corona-resistant inverter-duty magnet wire (VPI + dip & bake)

• Bearings: Double-sealed, lithium-greased (-30°C to 180°C)

• Construction: Full 304 stainless steel housing & shaft; moisture-proof sealed fits

• Conduit Box: Welded round stainless box with dual entries (IP69K compliant)

• Inverter Duty: 10:1 constant torque / 20:1 variable torque

• Warranty: 18 months from date of manufacture
