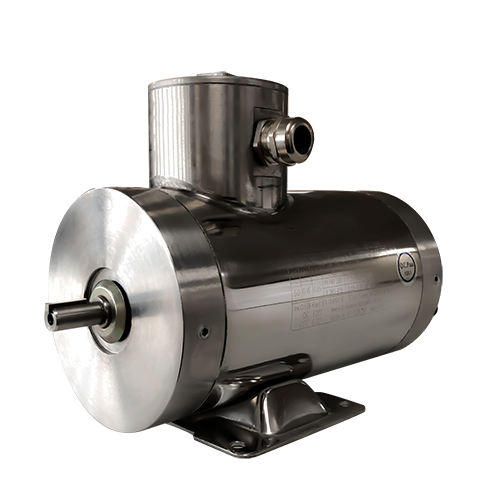

MPS-132S12FC-S3-B34, 7.5Hp, 3525RPM, 575V, 3Ph, 60Hz, TEFC, Frame 132S, IMB34, IP69K

MPS-132S12FC-S3-B34, 7.5Hp, 3525RPM, 575V, 3Ph, 60Hz, TEFC, Frame 132S, IMB34, IP69K

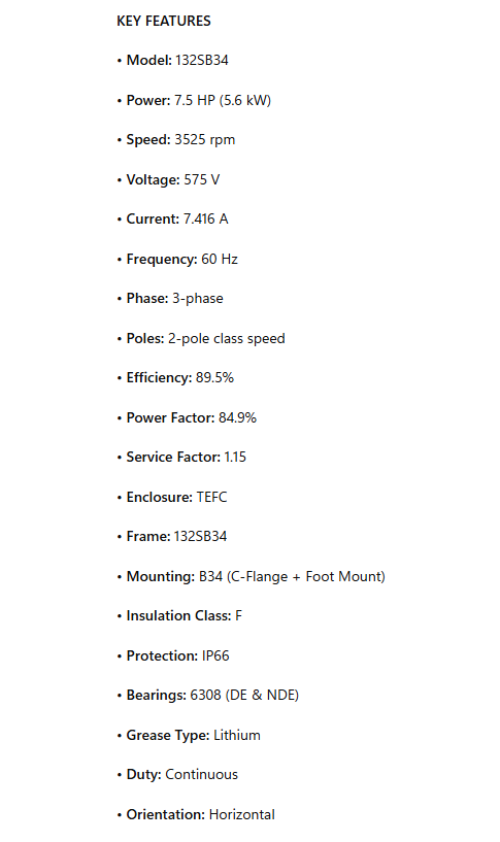

KEY FEATURES

• Model: 132SB34

• Power: 7.5 HP (5.6 kW)

• Speed: 3525 rpm

• Voltage: 575 V

• Current: 7.416 A

• Frequency: 60 Hz

• Phase: 3-phase

• Poles: 2-pole class speed

• Efficiency: 89.5%

• Power Factor: 84.9%

• Service Factor: 1.15

• Enclosure: TEFC

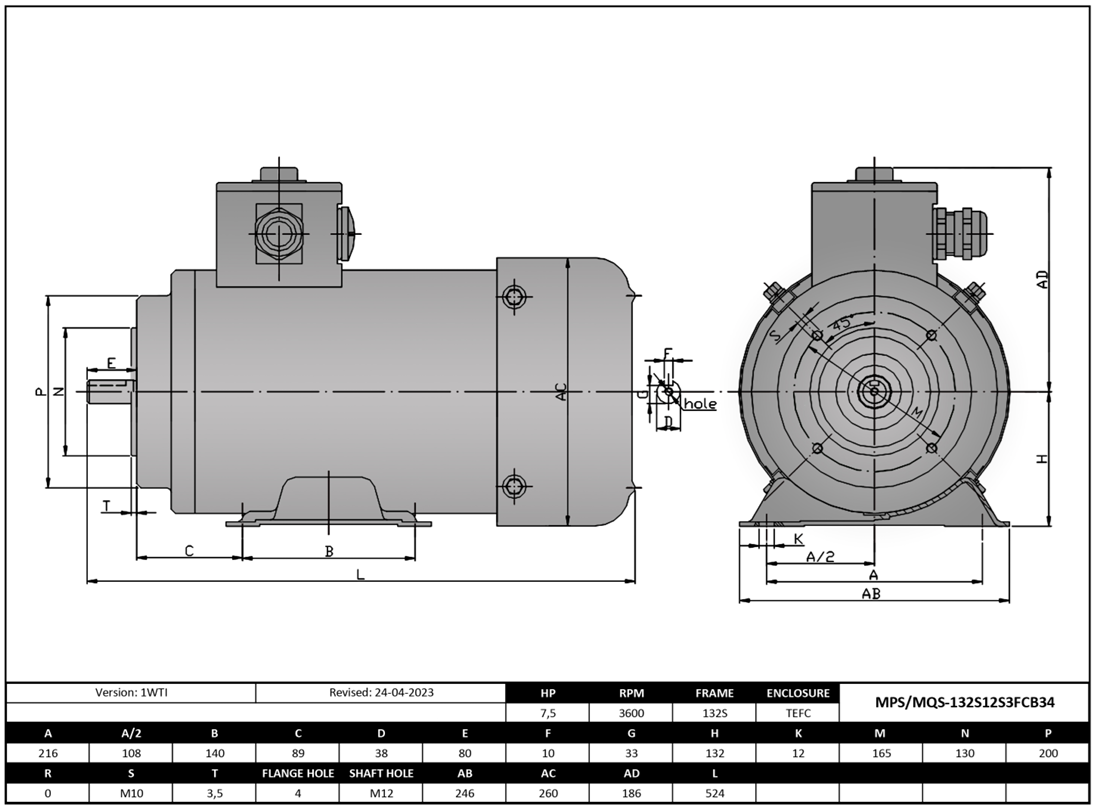

• Frame: 132SB34

• Mounting: B34 (C-Flange + Foot Mount)

• Insulation Class: F

• Protection: IP66

• Bearings: 6308 (DE & NDE)

• Grease Type: Lithium

• Duty: Continuous

• Orientation: Horizontal
