MPP-22C, 5Hp, 1755 RPM, 575V, 3Ph, 60Hz, Frame 182/4TC, TEFC, IP55, Class F

MPP-22C, 5Hp, 1755 RPM, 575V, 3Ph, 60Hz, Frame 182/4TC, TEFC, IP55, Class F

Replace MPRP-202CW, K723A, 056T34F5352 MARATHON, K723, 056T34F99015

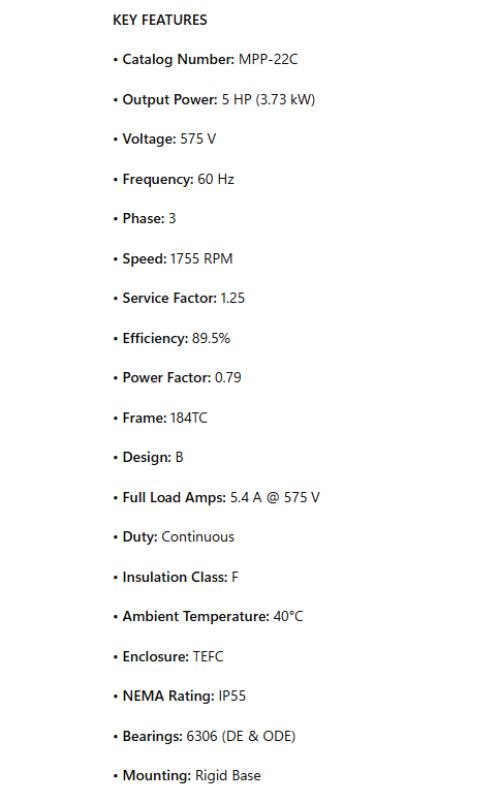

KEY FEATURES

• Catalog Number: MPP-22C

• Output Power: 5 HP (3.73 kW)

• Voltage: 575 V

• Frequency: 60 Hz

• Phase: 3

• Speed: 1755 RPM

• Service Factor: 1.25

• Efficiency: 89.5%

• Power Factor: 0.79

• Frame: 184TC

• Design: B

• Full Load Amps: 5.4 A @ 575 V

• Duty: Continuous

• Insulation Class: F

• Ambient Temperature: 40°C

• Enclosure: TEFC

• NEMA Rating: IP55

• Bearings: 6306 (DE & ODE)

• Mounting: Rigid Base
