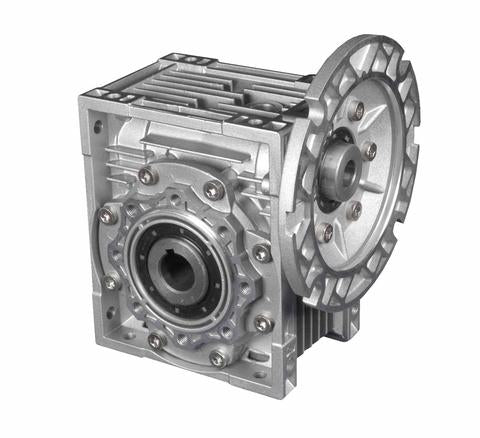

MMR50-60-56C, ALUMINUM GEARBOX RIGHT ANGLE, NEMA C FACE INPUT, MAXMOTION GEARBOX REDUCER

• MMR50-60-56C, GEARBOX
• RATIO 60:1
• INPUT FRAME : 56C
• MAX INPUT 0.5 HP
• OUTPUT TORQUE LBS/IN (646)
• ALUMIUM ALLOYS HOUSING WITH HEAT SINK DESIGN
• DOUBLE LIP OIL SEAL
• HARDENED WORM SHAFT

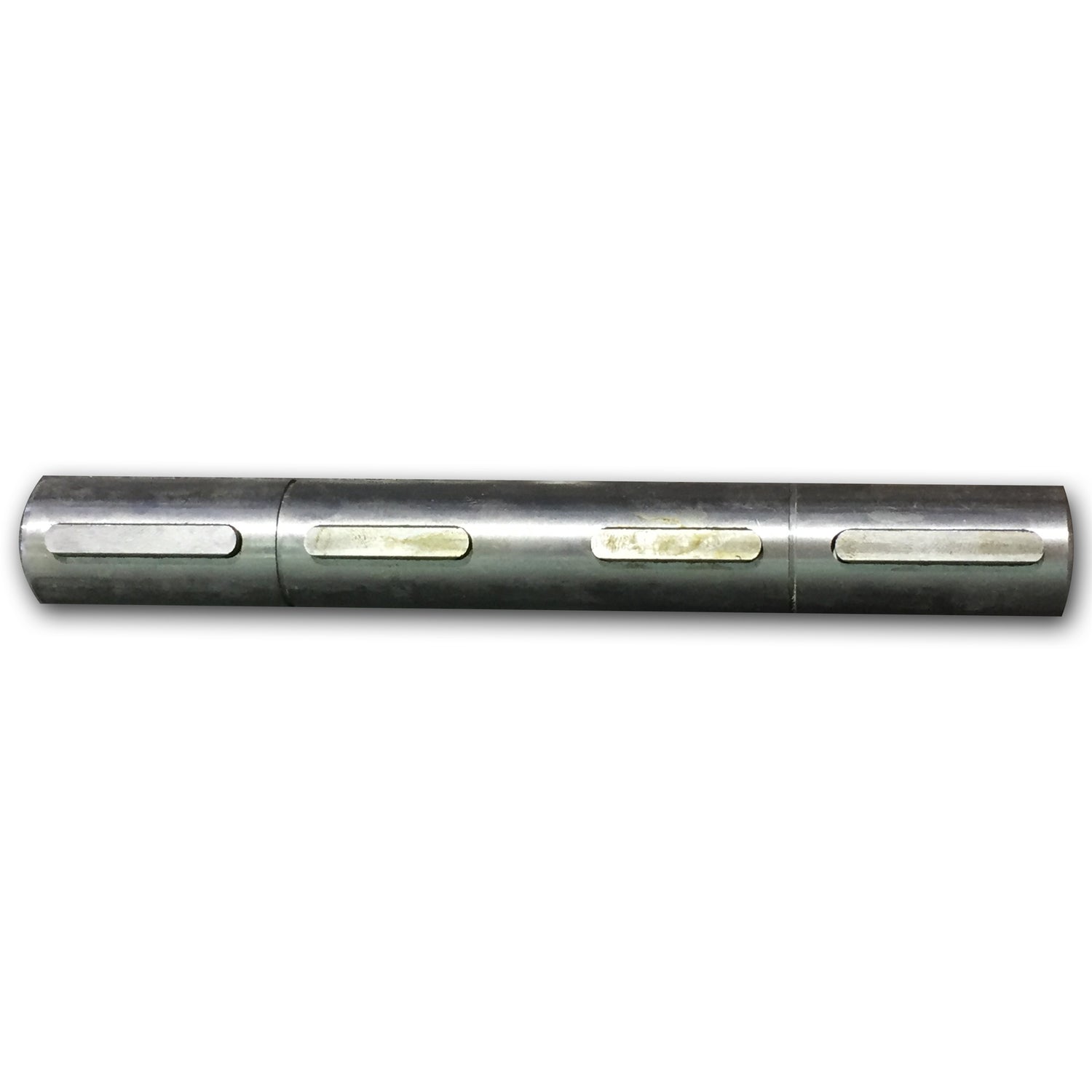

• SINGLE OUTPUT SHAFT 1'' OR DOUBLE OUTPUT 1'' (NOT INCLUDED )

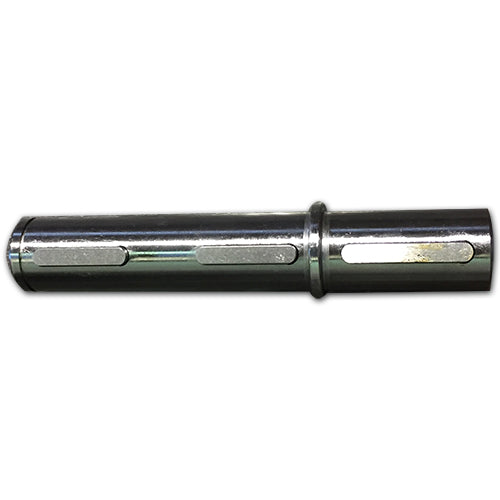

• SHAFT SIMPLE 1'' PART # MMR50-SS ( OPTIONNAL)
• PERMANENTLY SEALED WITH SYNTHETIC LUBRICATION

MMR50-10-56C, MMR50-15-56C,MMR50-20-56C,MMR50-25-56C,MMR50-30-56C,

MMR50-40-56C,MMR50-50-56C,MMR50-60-56C,MMR50-80-56C,MMR50-100-56C
