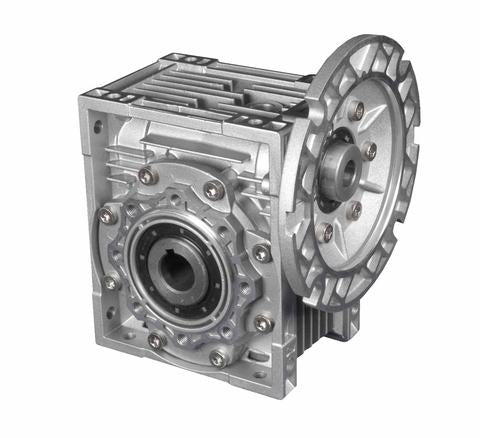

MMR50-15-56C, ALUMINUM GEARBOX RIGHT ANGLE, NEMA C FACE INPUT, MAXMOTION GEARBOX REDUCER

MAXMOTION

  • $236.65


  • MMR50-15-56C, GEARBOX
  • RATIO 15:1
  • INPUT FRAME : 56C
  • MAX INPUT 1.5 HP
  • OUTPUT TORQUE LBS/IN (655)
  • ALUMIUM ALLOYS HOUSING WITH HEAT SINK DESIGN
  • DOUBLE LIP OIL SEAL
  • HARDENED WORM SHAFT

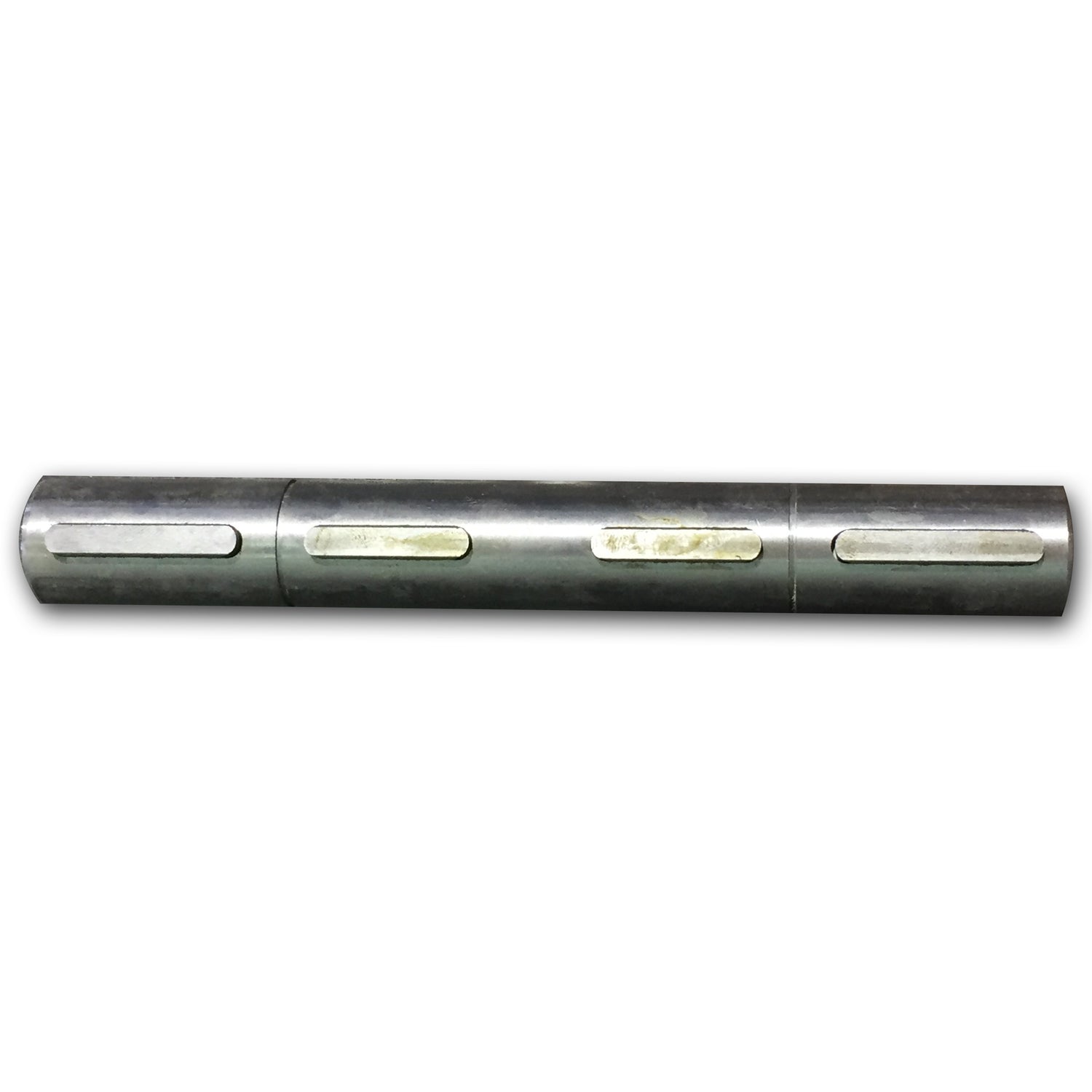

  • SINGLE OUTPUT SHAFT 1'' OR DOUBLE OUTPUT 1'' (NOT INCLUDED )

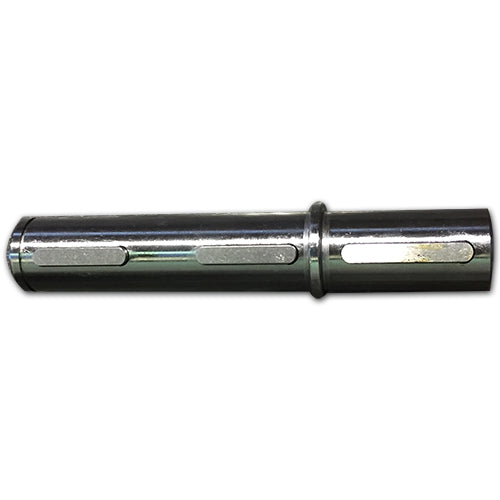

  • SHAFT SIMPLE 1'' PART # MMR50-SS ( OPTIONNAL)
  • PERMANENTLY SEALED WITH SYNTHETIC LUBRICATION
  •  Right Angle Gear Reducers
  •  1
  •  15:1
  •  C-Flange Quill
  •  56C
  •  Hollow Bore
  •  1" Bore
  •  117
  •  1.48
  •  1.48 SF @ 1 HP
  •  1.97 SF @ 3/4 HP
  •  2.96 SF @ 1/2 HP
  •  655 lb-in
  •  464 lbs
  •  Aluminum
  •  50
  •  2.36
  •  8lb
  •  Mobil Glygoyle 460 polyalkylene glycol (Mobil PAG 460)
  •  CHINA
  •  12 Months from the Date of Installation or 18 Months from the Date Purchased



MMR50-10-56C, MMR50-15-56C,MMR50-20-56C,MMR50-25-56C,MMR50-30-56C,

MMR50-40-56C,MMR50-50-56C,MMR50-60-56C,MMR50-80-56C,MMR50-100-56C
