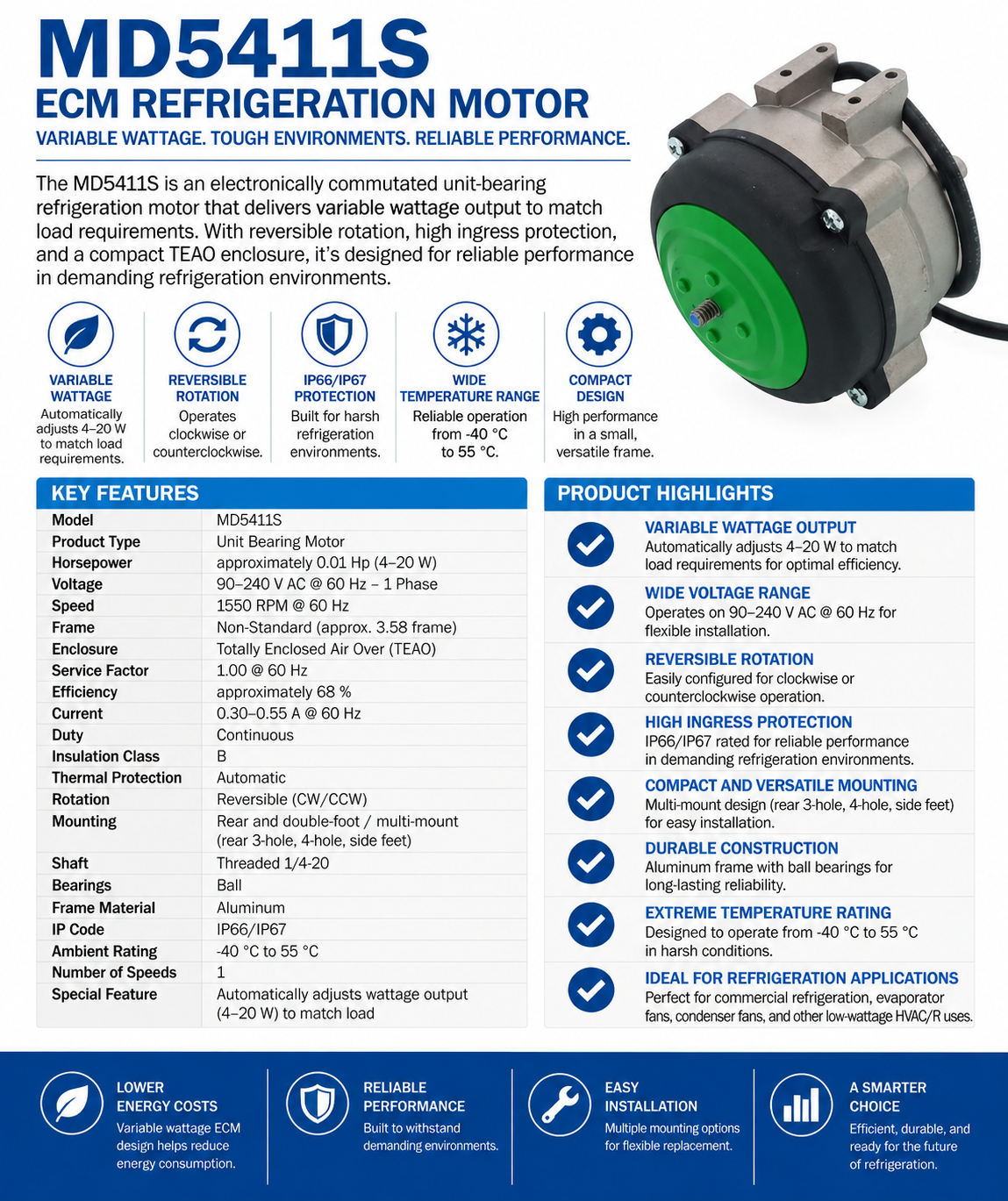

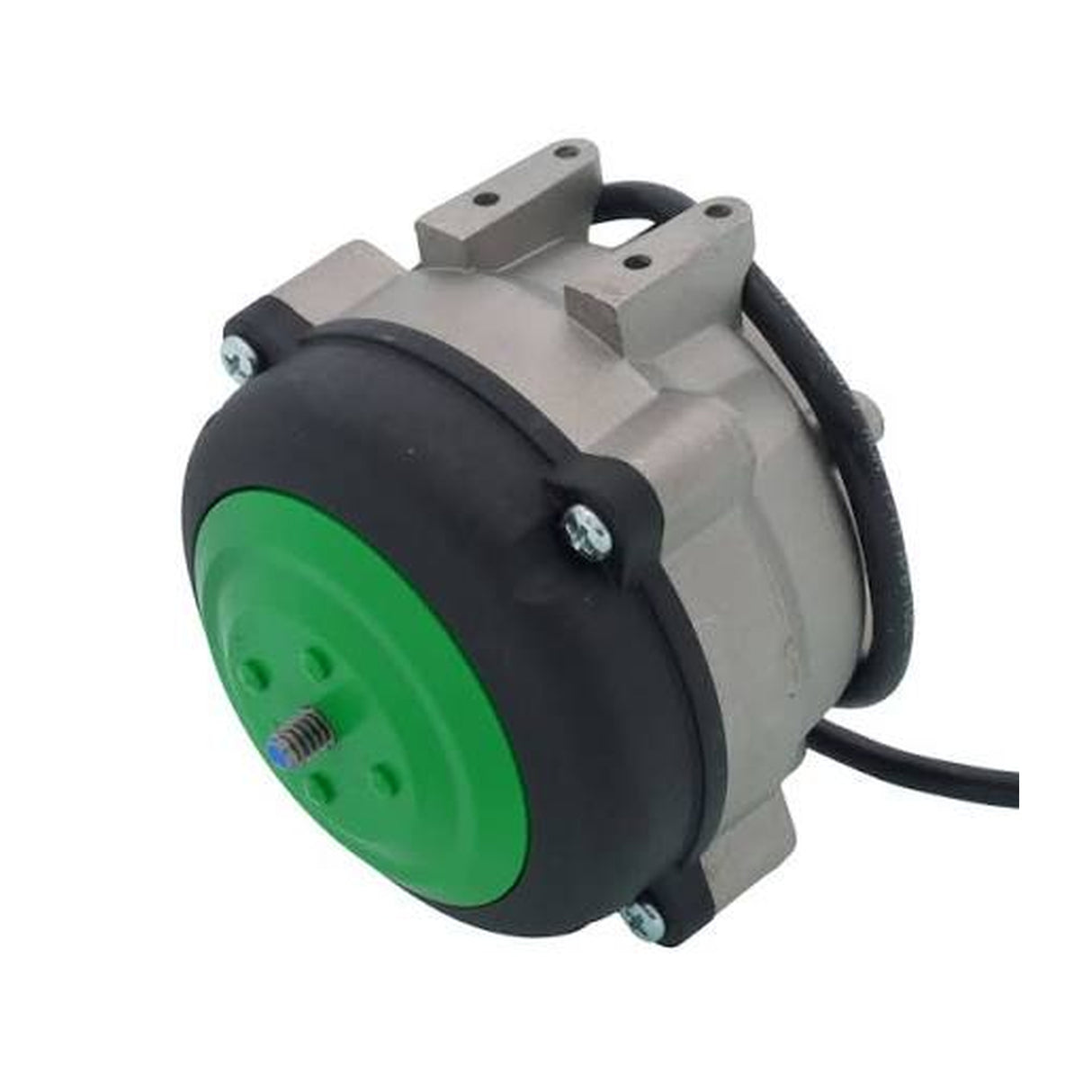

MD5411S, 0.01 Hp (approx.), 1550 RPM, 90‑240 V, 1 Ph, 60 Hz, TEAO, Non‑Standard Frame

This electronically commutated unit‑bearing refrigeration motor delivers variable wattage output to match load requirements, offering reversible rotation and high ingress protection in a compact TEAO enclosure.

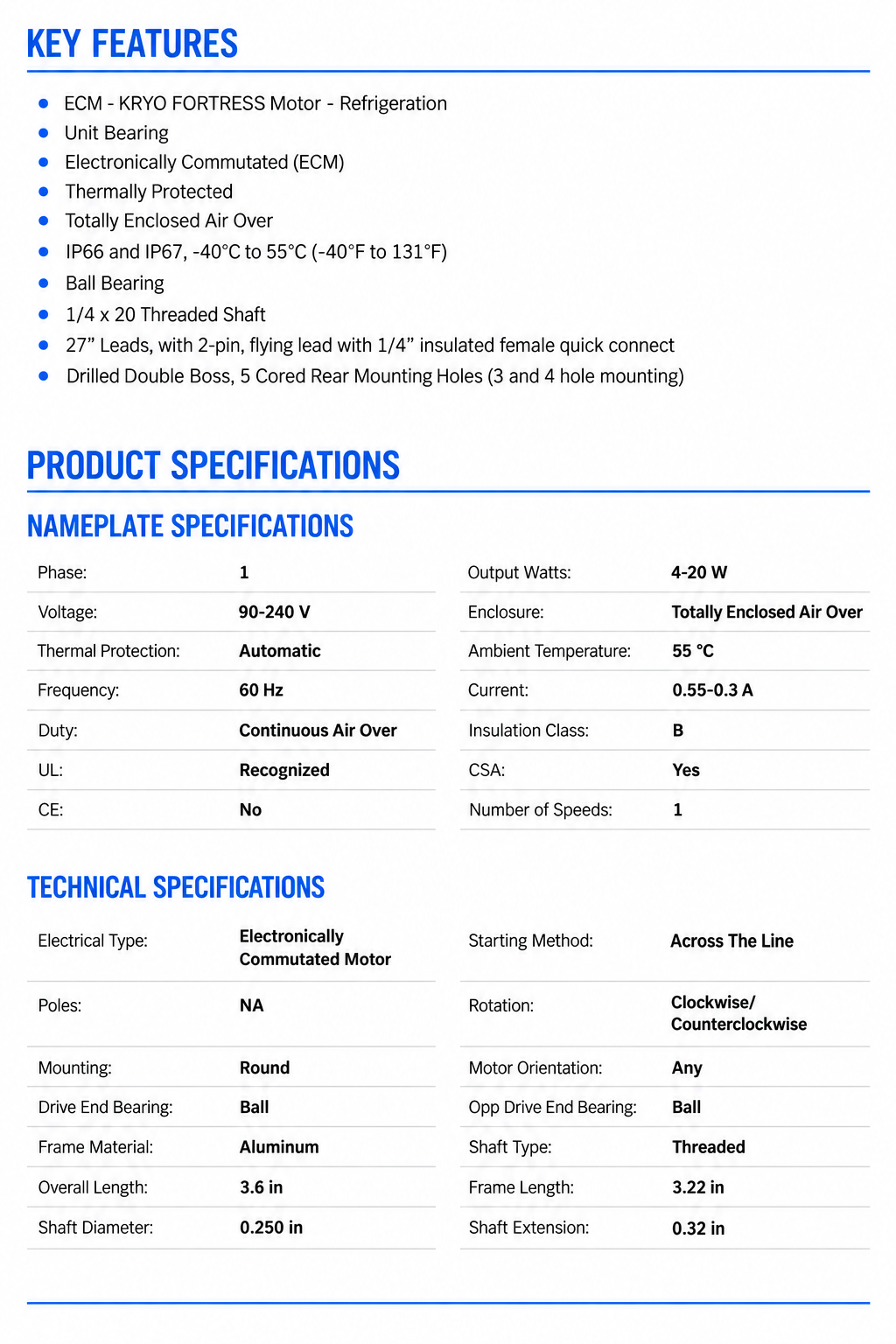

KEY FEATURES

• Model: MD5411S

• Product Type: Unit Bearing Motor

• Horsepower: approximately 0.01 Hp (4‑20 W)

• Voltage: 90‑240 V AC @ 60 Hz – 1 Phase

• Speed: 1550 RPM @ 60 Hz

• Frame: Non‑Standard (approx. 3.58 frame)

• Enclosure: Totally Enclosed Air Over (TEAO)

• Service Factor: 1.00 @ 60 Hz

• Efficiency: approximately 68 %

• Current: 0.30‑0.55 A @ 60 Hz

• Duty: Continuous

• Insulation Class: B

• Rotation: Reversible (CW/CCW)

• Mounting: Rear and double‑foot / multi‑mount (rear 3‑hole, 4‑hole, side feet)

• Shaft: Threaded 1/4‑20

• Bearings: Ball

• Frame Material: Aluminum

• IP Code: IP66/IP67

• Thermal Protection: Automatic

• Ambient Rating: ‑40 °C to 55 °C

• Special Feature: Automatically adjusts wattage output (4‑20 W) to match load

This compact ECM motor stands out for its variable wattage capability and robust IP66/IP67 protection, making it suitable for demanding refrigeration environments.
