MB60X1-1/8, BK62-1-1/8, Transmission Pulley; 1-1/8" Bore; 1 Groove; 5.95" Outside Diameter; Finished Bore; 4L | A | 5L | B Belt Series; 5.2" Pitch Minimum; 5.6" Pitch Maximum; Keyway

MB60X1-1/8, BK62-1-1/8, Transmission Pulley; 1-1/8" Bore; 1 Groove; 5.95" Outside Diameter; Finished Bore; 4L | A | 5L | B Belt Series; 5.2" Pitch Minimum; 5.6" Pitch Maximum; Keyway

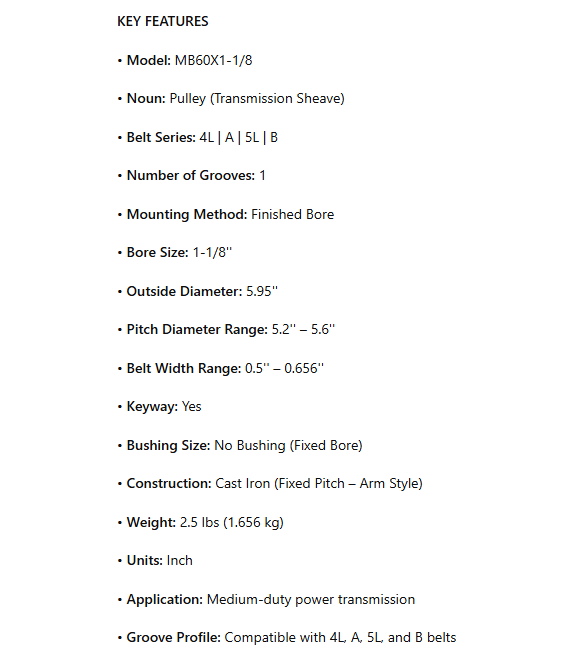

KEY FEATURES

• Model: MB60X1-1/8

• Noun: Pulley (Transmission Sheave)

• Belt Series: 4L | A | 5L | B

• Number of Grooves: 1

• Mounting Method: Finished Bore

• Bore Size: 1-1/8''

• Outside Diameter: 5.95''

• Pitch Diameter Range: 5.2'' – 5.6''

• Belt Width Range: 0.5'' – 0.656''

• Keyway: Yes

• Bushing Size: No Bushing (Fixed Bore)

• Construction: Cast Iron (Fixed Pitch – Arm Style)

• Weight: 2.5 lbs (1.656 kg)

• Units: Inch

• Application: Medium-duty power transmission

• Groove Profile: Compatible with 4L, A, 5L, and B belts
