MA60X7/8, AK61-7/8, Transmission Pulley; 7/8" Bore; 1 Groove; 5.95" Outside Diameter; Finished Bore; 3L | 4L | A Belt Series; 5.36" Pitch Minimum; 5.7" Pitch Maximum; Keyway

MA60X7/8, AK61-7/8, Transmission Pulley; 7/8" Bore; 1 Groove; 5.95" Outside Diameter; Finished Bore; 3L | 4L | A Belt Series; 5.36" Pitch Minimum; 5.7" Pitch Maximum; Keyway

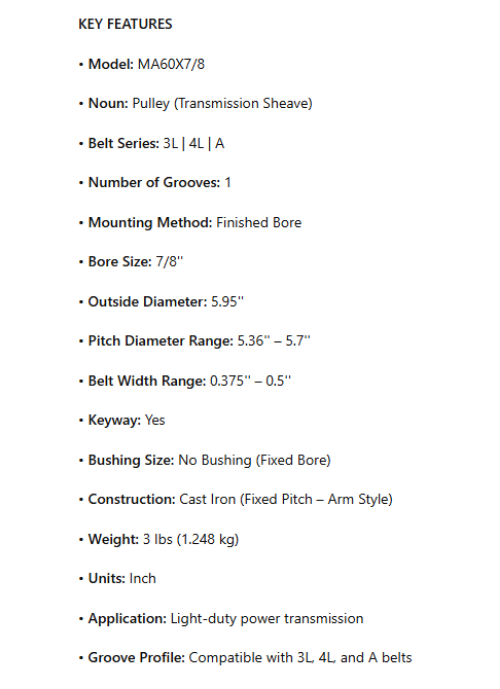

KEY FEATURES

• Model: MA60X7/8

• Noun: Pulley (Transmission Sheave)

• Belt Series: 3L | 4L | A

• Number of Grooves: 1

• Mounting Method: Finished Bore

• Bore Size: 7/8''

• Outside Diameter: 5.95''

• Pitch Diameter Range: 5.36'' – 5.7''

• Belt Width Range: 0.375'' – 0.5''

• Keyway: Yes

• Bushing Size: No Bushing (Fixed Bore)

• Construction: Cast Iron (Fixed Pitch – Arm Style)

• Weight: 3 lbs (1.248 kg)

• Units: Inch

• Application: Light-duty power transmission

• Groove Profile: Compatible with 3L, 4L, and A belts
