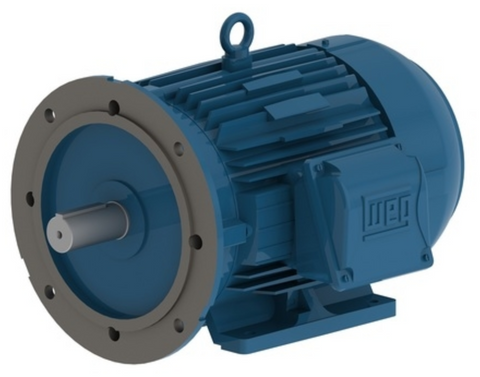

MA007504W22132S, W22 Tru-Metric IE3, 7.5Hp, 1770 RPM, 575 V, 60 Hz, 3Ph, 4P, 132S, IC411, TEFC ,B35L(E)

MA007504W22132S,  W22 Tru-Metric IE3, 7.5Hp, 1770 RPM, 575 V, 60 Hz, 3Ph, 4P, 132S, IC411, TEFC ,B35L(E)

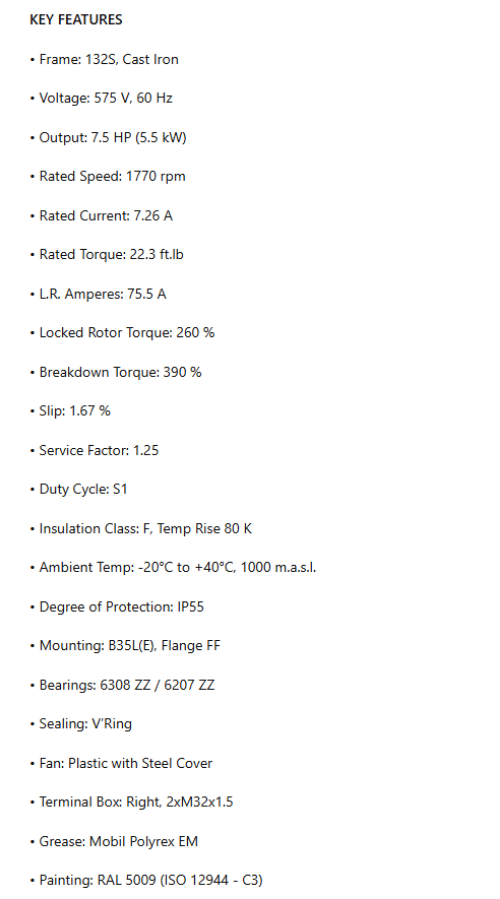

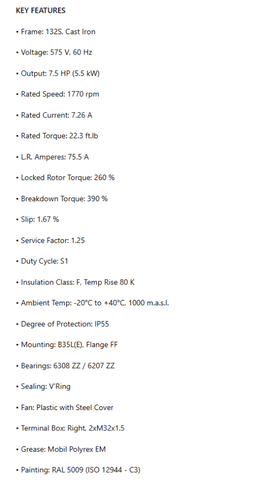

KEY FEATURES

• Frame: 132S, Cast Iron

• Voltage: 575 V, 60 Hz

• Output: 7.5 HP (5.5 kW)

• Rated Speed: 1770 rpm

• Rated Current: 7.26 A

• Rated Torque: 22.3 ft.lb

• L.R. Amperes: 75.5 A

• Locked Rotor Torque: 260 %

• Breakdown Torque: 390 %

• Slip: 1.67 %

• Service Factor: 1.25

• Duty Cycle: S1

• Insulation Class: F, Temp Rise 80 K

• Ambient Temp: -20°C to +40°C, 1000 m.a.s.l.

• Degree of Protection: IP55

• Mounting: B35L(E), Flange FF

• Bearings: 6308 ZZ / 6207 ZZ

• Sealing: V’Ring

• Fan: Plastic with Steel Cover

• Terminal Box: Right, 2xM32x1.5

• Grease: Mobil Polyrex EM

• Painting: RAL 5009 (ISO 12944 - C3)
