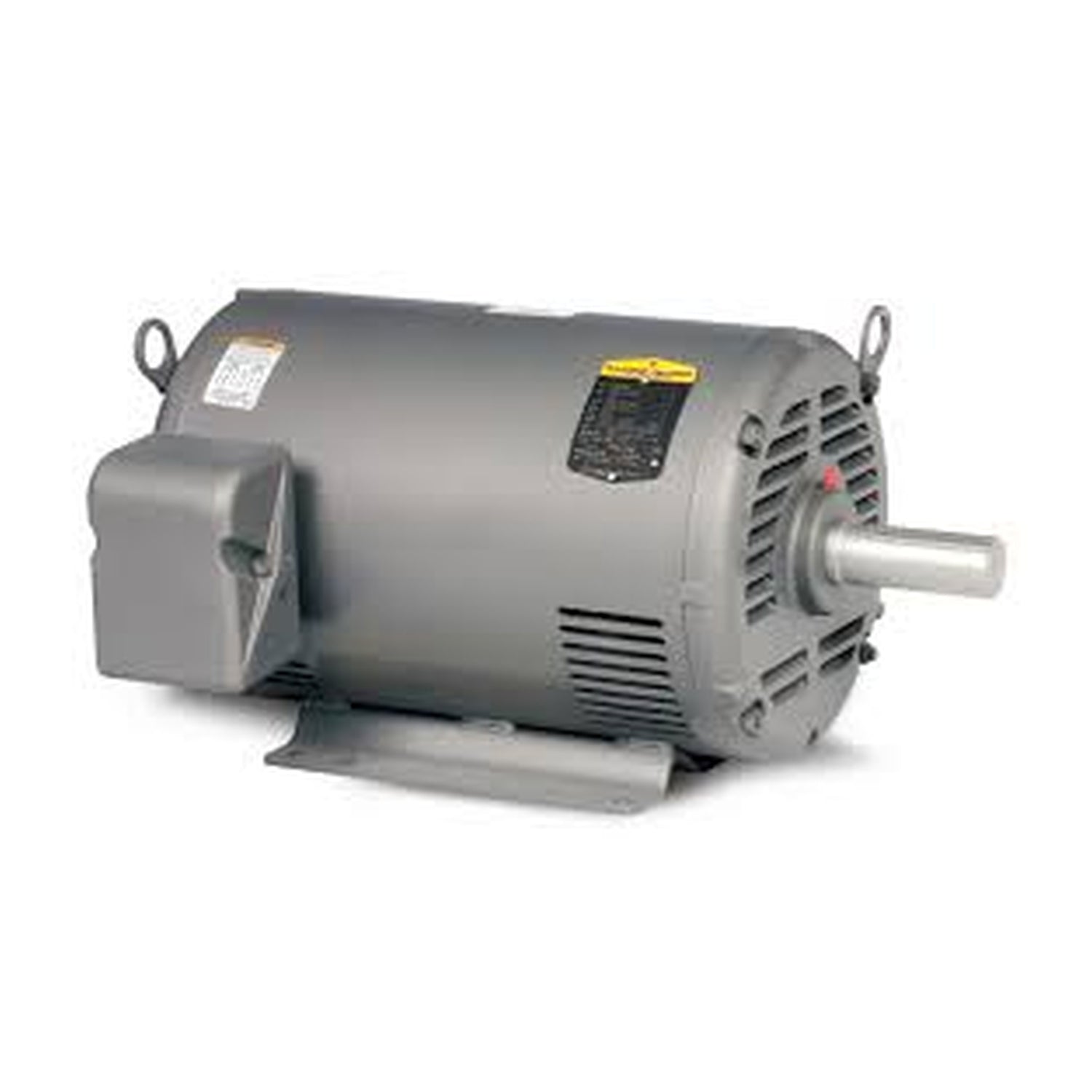

M3160, 0.5Hp, 865 RPM, 230/460 V, 3Ph, 60 Hz, Open Enclosure, Frame 56, 35B011G341G1

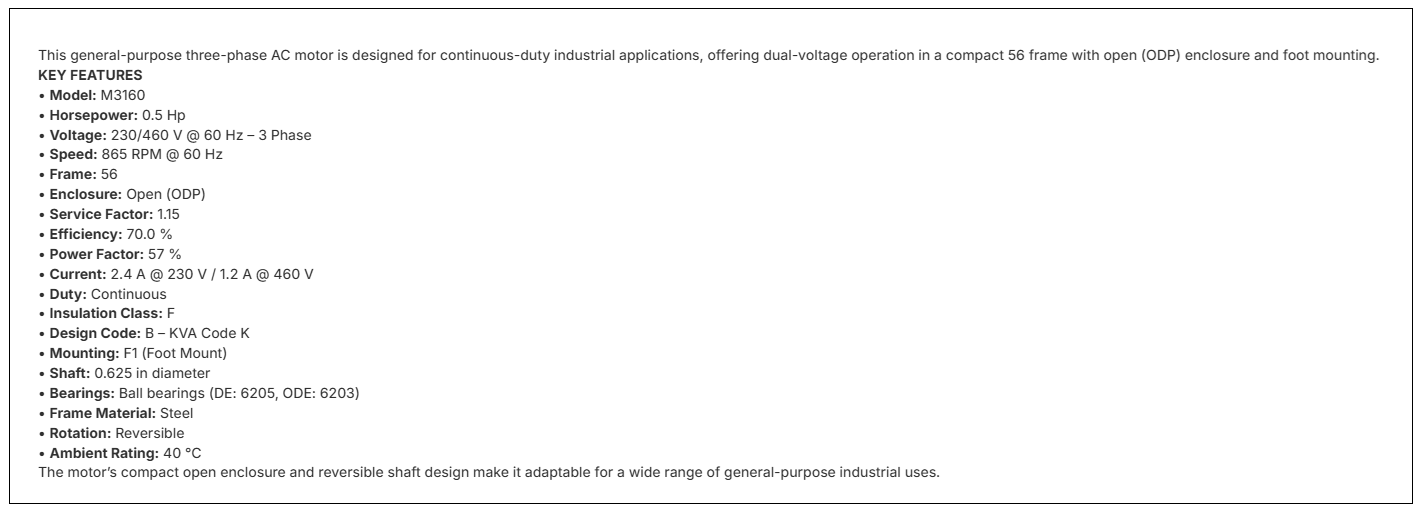

This general-purpose three-phase AC motor is designed for continuous-duty industrial applications, offering dual-voltage operation in a compact 56 frame with open (ODP) enclosure and foot mounting.

KEY FEATURES

• Model: M3160

• Horsepower: 0.5 Hp

• Voltage: 230/460 V @ 60 Hz – 3 Phase

• Speed: 865 RPM @ 60 Hz

• Frame: 56

• Enclosure: Open (ODP)

• Service Factor: 1.15

• Efficiency: 70.0 %

• Power Factor: 57 %

• Current: 2.4 A @ 230 V / 1.2 A @ 460 V

• Duty: Continuous

• Insulation Class: F

• Design Code: B – KVA Code K

• Mounting: F1 (Foot Mount)

• Shaft: 0.625 in diameter

• Bearings: Ball bearings (DE: 6205, ODE: 6203)

• Frame Material: Steel

• Rotation: Reversible

• Ambient Rating: 40 °C

The motor’s compact open enclosure and reversible shaft design make it adaptable for a wide range of general-purpose industrial uses.
