M283, Oval coolBLUE Inductive Absorber , VFD 51-100Hp, 80x63MM

M283, Oval coolBLUE Inductive Absorber , VFD 51-100Hp, 80x63MM

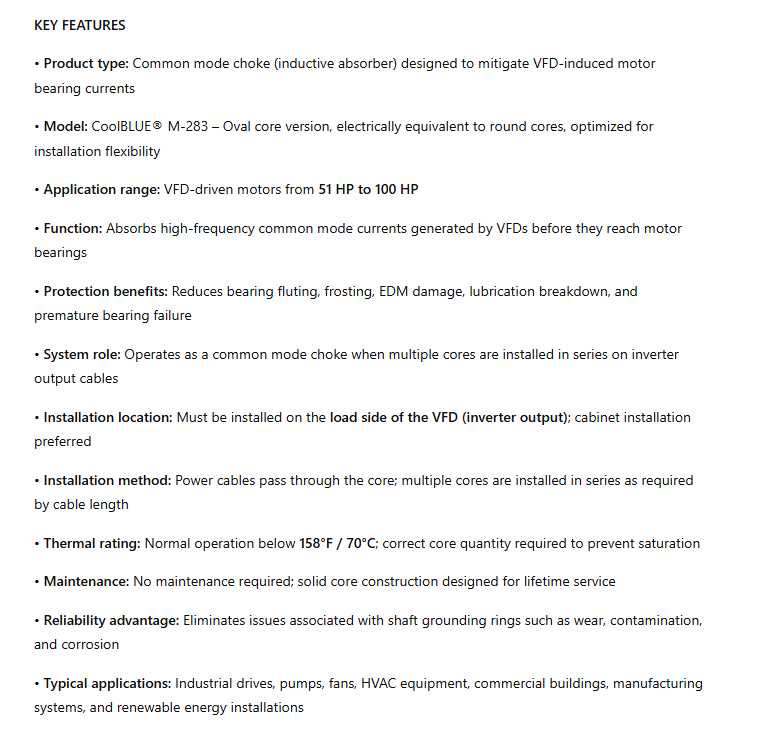

KEY FEATURES

• Product type: Common mode choke (inductive absorber) designed to mitigate VFD-induced motor bearing currents

• Model: CoolBLUE® M-283 – Oval core version, electrically equivalent to round cores, optimized for installation flexibility

• Application range: VFD-driven motors from 51 HP to 100 HP

• Function: Absorbs high-frequency common mode currents generated by VFDs before they reach motor bearings

• Protection benefits: Reduces bearing fluting, frosting, EDM damage, lubrication breakdown, and premature bearing failure

• System role: Operates as a common mode choke when multiple cores are installed in series on inverter output cables

• Installation location: Must be installed on the load side of the VFD (inverter output); cabinet installation preferred

• Installation method: Power cables pass through the core; multiple cores are installed in series as required by cable length

• Thermal rating: Normal operation below 158°F / 70°C; correct core quantity required to prevent saturation

• Maintenance: No maintenance required; solid core construction designed for lifetime service

• Reliability advantage: Eliminates issues associated with shaft grounding rings such as wear, contamination, and corrosion

• Typical applications: Industrial drives, pumps, fans, HVAC equipment, commercial buildings, manufacturing systems, and renewable energy installations

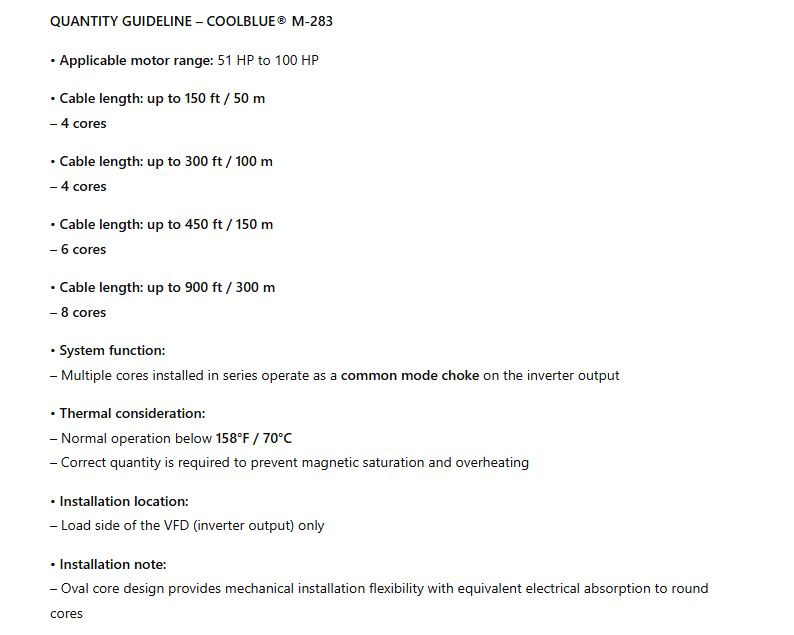

QUANTITY GUIDELINE – COOLBLUE® M-283

• Applicable motor range: 51 HP to 100 HP

• Cable length: up to 150 ft / 50 m
– 4 cores

• Cable length: up to 300 ft / 100 m
– 4 cores

• Cable length: up to 450 ft / 150 m
– 6 cores

• Cable length: up to 900 ft / 300 m
– 8 cores

• System function:
– Multiple cores installed in series operate as a common mode choke on the inverter output

• Thermal consideration:
– Normal operation below 158°F / 70°C
– Correct quantity is required to prevent magnetic saturation and overheating

• Installation location:
– Load side of the VFD (inverter output) only

• Installation note:
– Oval core design provides mechanical installation flexibility with equivalent electrical absorption to round cores

CoolBLUE® toroids made from the nanocrystalline material NANOPERM® are
being used increasingly to reduce damaging motor bearing currents in modern
high power inverter systems operating at high switching frequencies. As a result of
these unwanted currents, the bearings corrugate, leading to electrical breakdown
in the lubrication and finally to a standstill of the entire motor.
The use of CoolBLUE® cores not only significantly reduces the over voltage peaks
at the motor terminals, but also suppresses the asymmetrical EMI currents which
are generated by the parasitic capacities of the motor itself together with the motor
cable. In order to achieve an efficient reduction in these destructive effects, one or
more CoolBLUE® cores of suitable geometry have to be placed together over the
connector cables in the DC-link as well as at the inverter output. In this configura-
tion, the cores operate as a common-mode choke.
