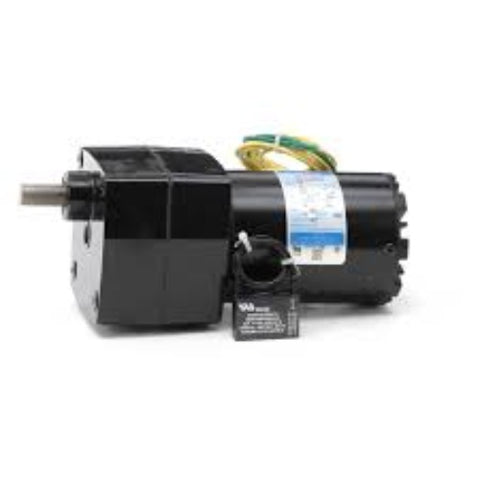

M1125050.00, Leeson, CM31P17NZ1C, 115V, 2 RPM, TENV, Gearmotor, Frame 31, 900:1

LEESON

  • $768.24


M1125050.00, Leeson, Gearmotor,

Nameplate Specifications

Output HP : 0.01 Hp Output KW : 0.03 kW
Frequency : 60 Hz Voltage : 115 V
Current : 0.40 A Speed : 2 rpm
Service Factor : 1 Phase : 1
Duty : Continuous Insulation Class : F
KVA Code : L Frame : 31
Enclosure : Totally Enclosed Non Ventilated Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6000
Opp Drive End Bearing Size : R6 UL : Recognized



General Specifications

Model : CM31P17NZ1C Catalog No : M1125050.00
Part Description : PZ...900:1.1.9RPM.100LBIN..007HP.31...AC GEARMOTORS SUB-FHP./115V.1PH.60HZ.TENV.CM31P17NZ1C Category :

PZ Series





Technical Specifications

Rotation : Reversible Mounting : Special
Shaft Type : Parallel Overall Length : 8.71 in
Frame Length : 3.87 in Shaft Diameter : 0.500 in
Shaft Extension : 1 in UPC : 691720091111
Weight : 9.00 LB
