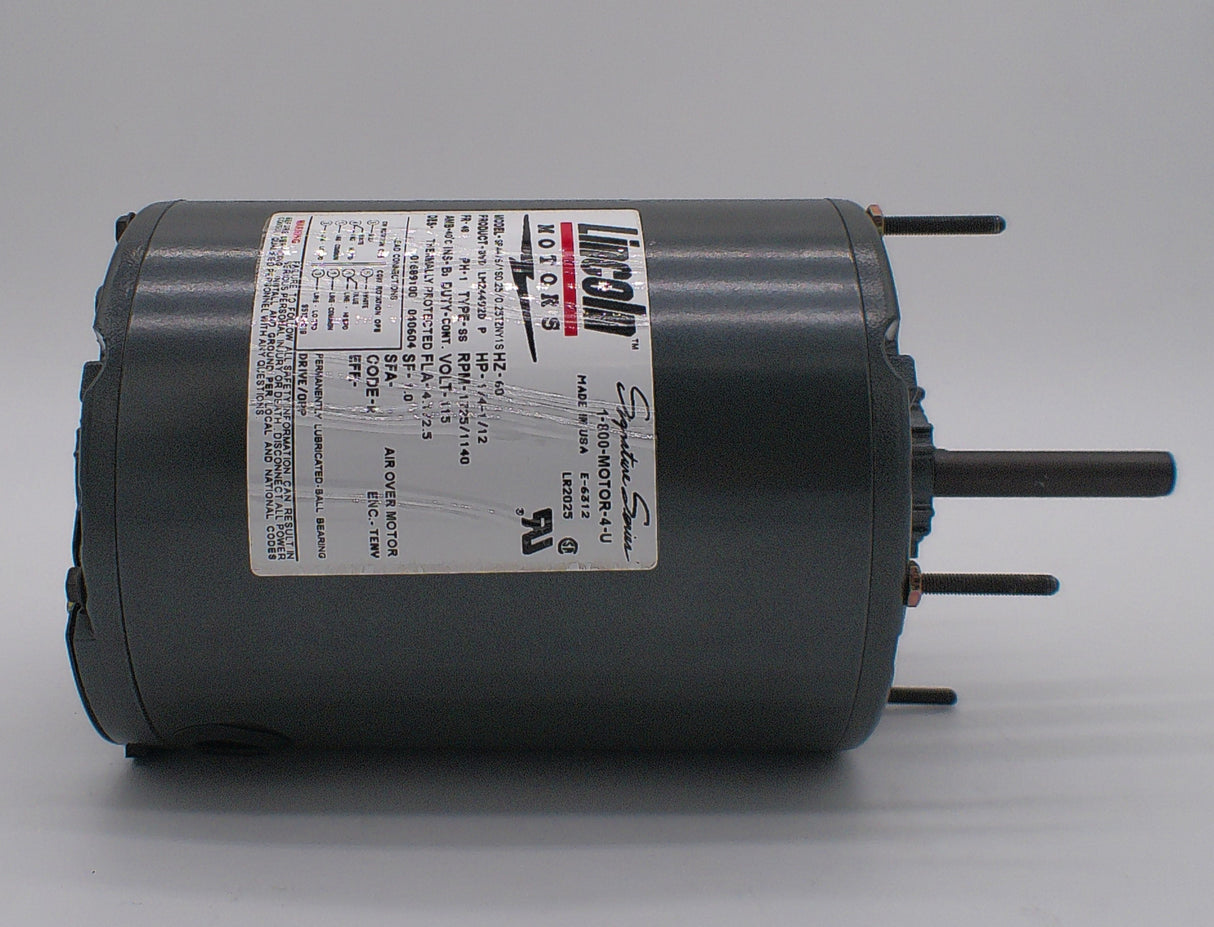

LM24492, Lincoln motors, 1/12Hp, 1725 Rpm, 115 Volts, Frame: 48, Tenv,

LM24492, Model: SPA4/6/180.25/0.25TZNY1SW, Lincoln motors

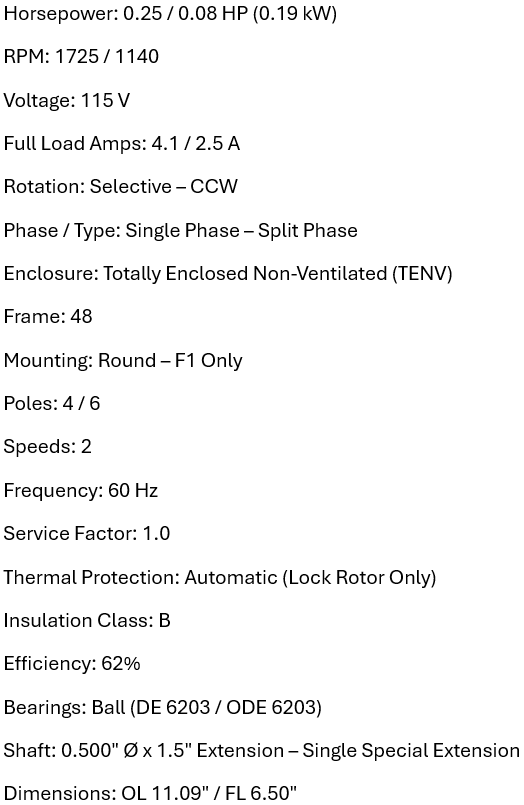

• Horsepower: 0.25 / 0.08 HP (0.19 kW)

• RPM: 1725 / 1140

• Voltage: 115 V

• Full Load Amps: 4.1 / 2.5 A

• Rotation: Selective – CCW

• Phase / Type: Single Phase – Split Phase

• Enclosure: Totally Enclosed Non-Ventilated (TENV)

• Frame: 48

• Mounting: Round – F1 Only

• Poles: 4 / 6

• Speeds: 2

• Frequency: 60 Hz

• Service Factor: 1.0

• Thermal Protection: Automatic (Lock Rotor Only)

• Insulation Class: B

• Efficiency: 62%

• Bearings: Ball (DE 6203 / ODE 6203)

• Shaft: 0.500" Ø x 1.5" Extension – Single Special Extension

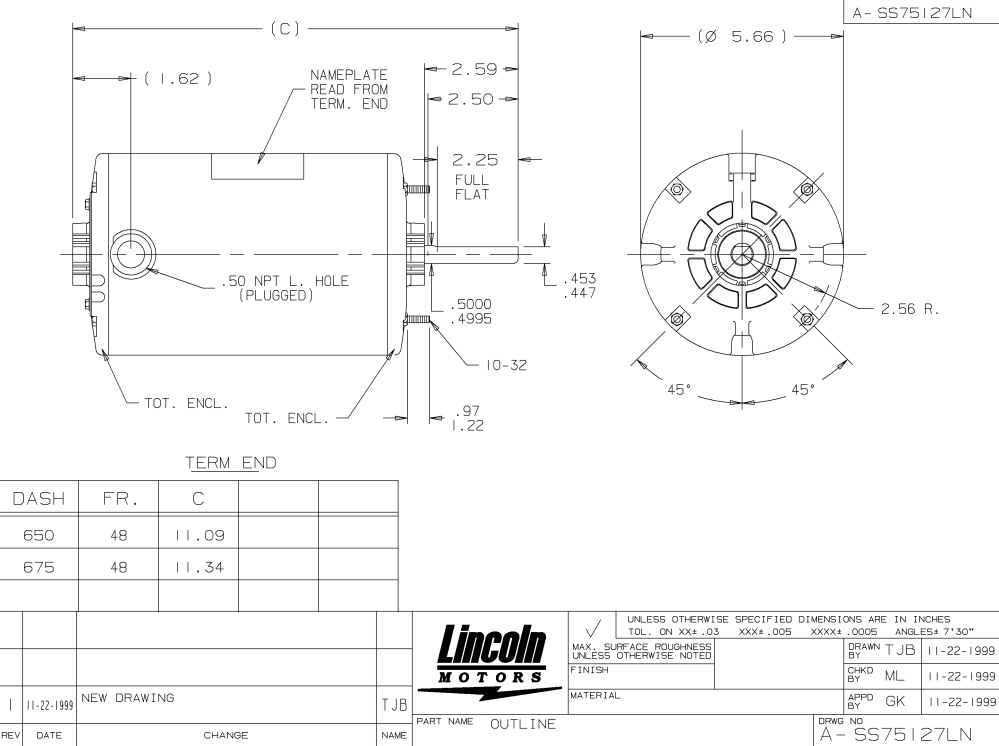

• Dimensions: OL 11.09" / FL 6.50"
