WEG  |  SKU: EMN-019125

KO.50502W01DOE, Rolled Steel Jet Pump - C type Premium Efficiency 0.5Hp 3450 Rpm 2P W56C 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted

$316.47
shipping

Estimate shipping

Description

KO.50502W01DOE,  Rolled Steel Jet Pump - C type Premium Efficiency 0.5Hp 3450 Rpm 2P W56C 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted

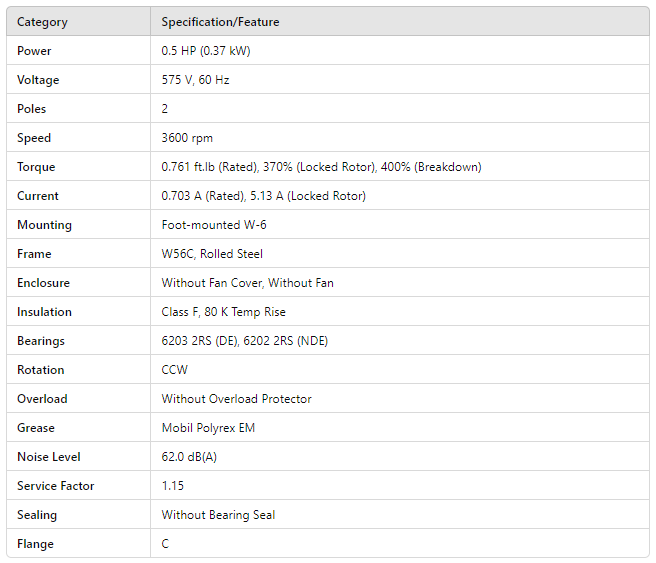

Category Specification/Feature
Power 0.5 HP (0.37 kW)
Voltage 575 V, 60 Hz
Poles 2
Speed 3600 rpm
Torque 0.761 ft.lb (Rated), 370% (Locked Rotor), 400% (Breakdown)
Current 0.703 A (Rated), 5.13 A (Locked Rotor)
Mounting Foot-mounted W-6
Frame W56C, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6203 2RS (DE), 6202 2RS (NDE)
Rotation CCW
Overload Without Overload Protector
Grease Mobil Polyrex EM
Noise Level 62.0 dB(A)
Service Factor 1.15
Sealing Without Bearing Seal
Flange C
