KBMM Barrier Terminal Board, P/N 9897, KB ELECTRONICS, CHASSIS

KB ELECTRONIC

  • $54.85

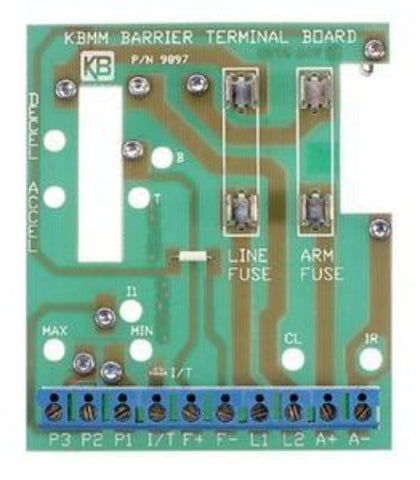

KBMM 9897 Barrier Terminal Board easily converts a standard control with quick-connect terminals to barrier terminals. Provision is made for AC line and armature fusing. The Barrier Terminal Board installs directly over the control by mating the Q-D terminals. A separate .110” jumper wire can be used to connect to the I1 Inhibit terminal or, on the KBMM™, to the T or B terminals which are used for tach feedback. (Refer to KBMM™ Instruction Manual.) Fuses supplied separately.

Models where used:

KBMM

KBIC

Converts KBIC® and KBMM™ Controls from Quick-Connect Terminals to Barrier Terminals Contains Provision for AC Line and Armature Fusing▲

The KBIC® and KBMM™ Barrier Terminal Boards easily convert a standard control with quick-connect terminals to barrier terminals. Provision is made for AC line and armature fusing. The Barrier Terminal Board installs directly over the control by mating the Q-D terminals. A separate .110" jumper wire can be used to connect to the I1 inhibit terminal or, on the KBMM™, to the T or B terminals which are used for tach feedback. (Refer to KBMM Instruction Manual.) Fuses supplied separately



The KBIC® and KBMM™ Barrier Terminal Boards easily convert a standard control with quick-connect terminals to barrier terminals. Provision is made for AC line and armature fusing. The Barrier Terminal Board installs directly over the control by mating the Q-D terminals. A separate .110" jumper wire can be used to connect to the I1 inhibit terminal or, on the KBMM™, to the T or B terminals which are used for tach feedback. (Refer to KBMM Instruction Manual.) Fuses supplied separately
