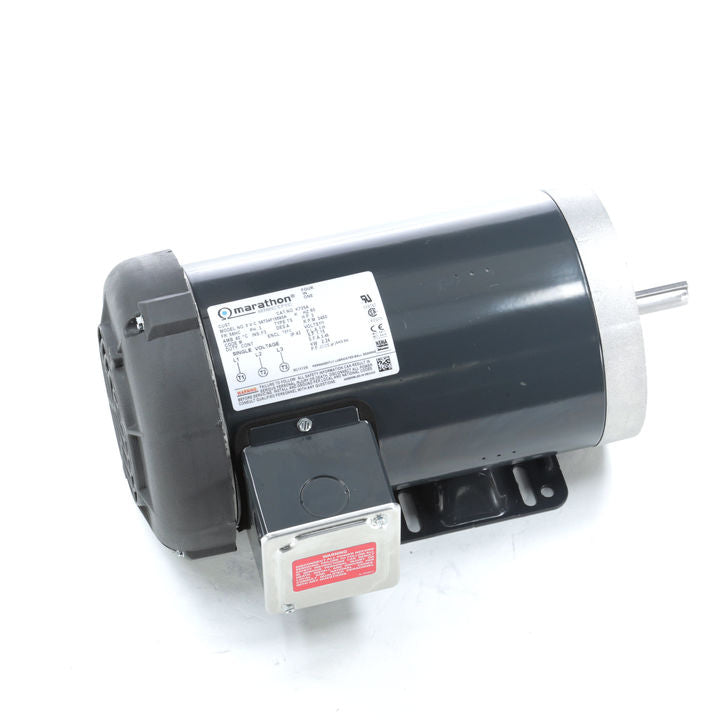

K725A, 056T34F15593, 056T34F5353, Marathon, 3 HP, 3600 Rpm, mpr-302CW

MARATHON

$869.13

K725A, 056T34F15593, 056T34F5353, MARATHON, MPR-302CW,

Nameplate Specifications

Output HP :	3 Hp
Output KW :	2.24 kW
Frequency :	60 Hz
Voltage :	575 V
Current :	3.05 A
Speed :	3450 rpm
Service Factor :	1.15
Phase :	3
Efficiency :	87.5 %
Duty :	CONTINUOUS
Insulation Class :	F
Design Code :	A
KVA Code :	M
Frame :	56HC
Enclosure :	TEFC
Overload Protector :	NOT
Ambient Temperature :	40 °C
Drive End Bearing Size :	6205
Opp Drive End Bearing Size :	6203
UL :	Recognized
CSA :	Y
CE :	Y
IP Code :	43

Technical Specifications

Electrical Type :	SQ CAGE IND RUN
Starting Method :	ACROSS THE LINE
Poles :	2
Rotation :	REV
Mounting :	BOLT-ON
Motor Orientation :	HORIZONTAL OR UP OR DOWN
Drive End Bearing :	BALL
Opp Drive End Bearing :	BALL
Frame Material :	ROLLED STEEL
Shaft Type :	STANDARD 56
Overall Length :	14.31 in
Frame Length :	9.06 in
Shaft Diameter :	0.63 in
Shaft Extension :	2.06 in
Assembly/Box Mounting :	F1 ONLY
UPC :	722856052063
