WEG  |  SKU: EMN-019104

JO001102W01DOE, Rolled Steel Jet Pump - J type 1.5Hp 3500 Rpm 2P 56J 1Ph 115/208-230 V 60 Hz IC01 - ODP - Footless

$397.62
shipping

Estimate shipping

Description

JO001102W01DOE,  Rolled Steel Jet Pump - J type 1.5Hp 3500 Rpm 2P 56J 1Ph 115/208-230 V 60 Hz IC01 - ODP - Footless

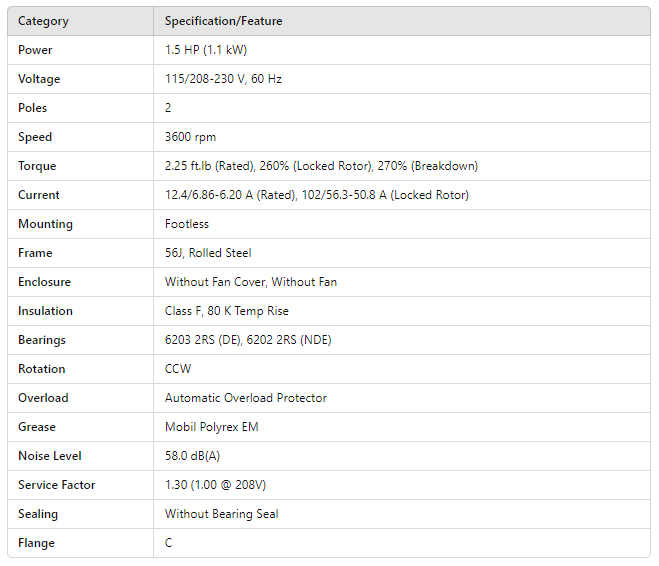

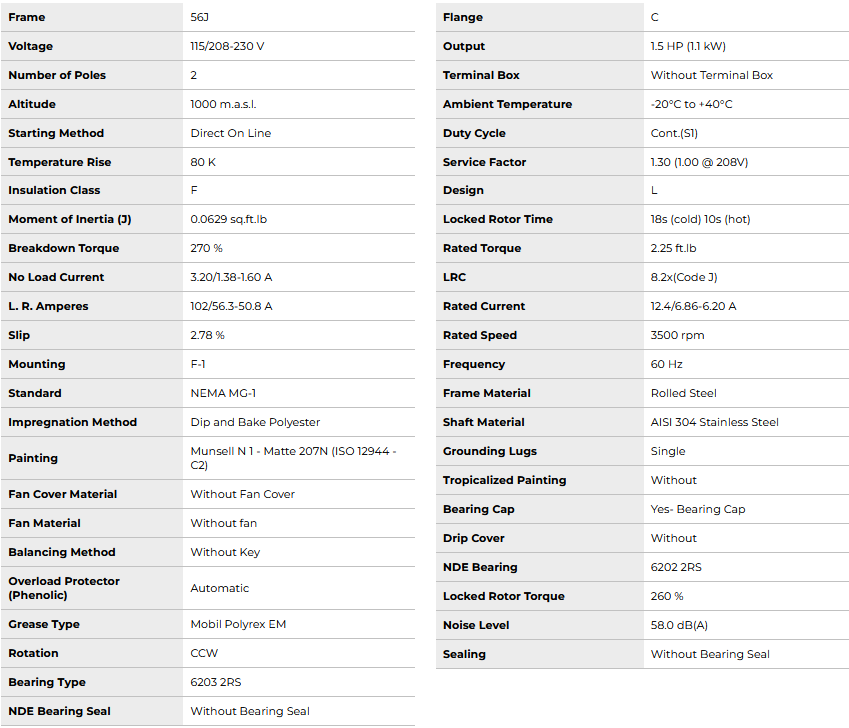

Category Specification/Feature
Power 1.5 HP (1.1 kW)
Voltage 115/208-230 V, 60 Hz
Poles 2
Speed 3600 rpm
Torque 2.25 ft.lb (Rated), 260% (Locked Rotor), 270% (Breakdown)
Current 12.4/6.86-6.20 A (Rated), 102/56.3-50.8 A (Locked Rotor)
Mounting Footless
Frame 56J, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6203 2RS (DE), 6202 2RS (NDE)
Rotation CCW
Overload Automatic Overload Protector
Grease Mobil Polyrex EM
Noise Level 58.0 dB(A)
Service Factor 1.30 (1.00 @ 208V)
Sealing Without Bearing Seal
Flange C
