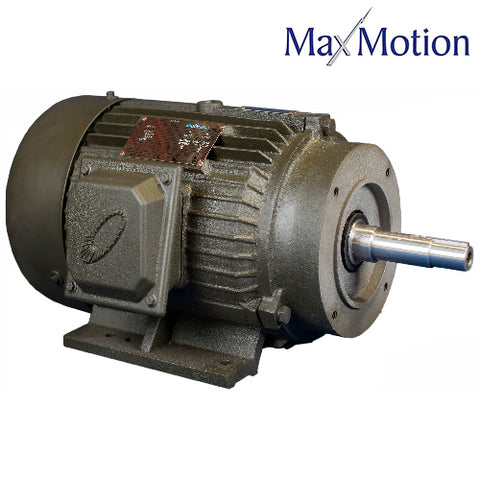

JMQP-21, 5 HP, 3515 RPM, 208-230/460V, FR:184JM, TEFC,MAXMOTION ELECTRIC MOTORS

MAXMOTION

  • $678.71


  • REPLACED MOTOR PART JMQ-21
  • JMQP-21
  • 5 HP
  • 3515 RPM
  • FRAME 184JM
  • 208-230/460 VOLTS
  • 50/60 HZ
  • TEFC
  • INVERTER DUTY
  • IP55
  • PUMP MOTOR
  • Inverter Duty Magnet Wire, 10:1 CT ~ 20:1 V
  • Meets or exceeds MG1 Part 31
  • MAXMOTION

General product Features

  • Design ‐ NEMA Standard MG‐1 Design B
  • Agency listings and standards ‐ NEMA, IEEE, CSA, CSAus, IEC, CE, NRCan
  • Electrical Supply ‐ At 60Hz: 575V and 208‐230/416‐480V dual rated for 50Hz: 190/380‐415
  • Voltage and Frequency Variation ‐ +/-10% voltage variation and +/-5% frequency variation
  • Windings ‐ High quality copper magnet wire class F insulation system with class H VPI epoxy resin protection.
  • Bearings ‐ 143T to 215T are double sealed and grease filled, 254T and larger are regreasable with brass grease nipples and retaining bearing caps
  • Bearing lubricant ‐ Frame 143T to 215T is lithium grease, ‐30 Deg C to 180 Deg C Amb. Frames 254T and larger are long life Mobil Polyrex EM, ‐29 Deg C to 177 Deg C.
  • Enclosure Protection ‐ Enclosure Protection - Totally Enclosed Fan Cooled meeting IEC standard Ip55. Factory Certified Division 2 Class I Groups A,B,C,D Class II Groups F,G. Meets Temp Code T2B
  • Conduit Box ‐ Oversize cast iron diagonally split and can be rotated in 90 Deg steps. Lead separator gasket to seal conduit box from frame and gasketed cover. Grounding terminal inside conduit box and threaded conduit entry
  • Inverter Duty ‐ Suitable for Inverter application at 230V, 460V, and 575V for speed ranges of 2:1 constant torque and 10:1 variable torque
  • Nameplate ‐ Corrosion resistant stainless steel showing all data, connection diagrams and certifications
  • Drain Plugs ‐ Located at the lowest point of each end bracket
