US MOTORS | SKU:
EMN-016187

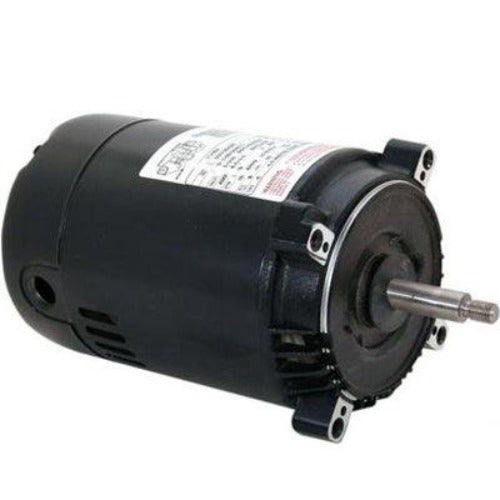

JJ0502-2V, Us Motors, 1/2 Hp. 3450 Rpm, 115/230V, 56J, C055KTN5124013J, T1052 Us Motors
Regular price
$423.09
Unit price
/
Unavailable
JJ0502-2V, Us Motors, 1/2 Hp. 3450 Rpm, 115/230V, 56J, C055KTN5124013J, T1052 Us Motors is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
![JJ0502-2V, Us Motors, 1/2 Hp. 3450 Rpm, 115/230V, 56J, C055KTN5124013J, T1052 Us Motors - JET PUMP - US MOTORS - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur](http://www.emotornations.com/cdn/shop/products/JJ0502-2V_US_MOTORS.jpg?v=1756479576&width=112)
JJ0502-2V, Us Motors, 1/2 Hp. 3450 Rpm, 115/230V, 56J, C055KTN51240...
Regular price
$423.09
Unit price
/
Unavailable
Description
Description
JJ0502-2V, C055KTN5124013J, Us Motors, T1052, CENTURY, AO SMITH
| Model Number: | C055KTN5124013J |
| PRODUCT NAME: | .5 HP - 3450 RPM |
| PHASE TYPE: | 1 PH |
| MOTOR ENCLOSURE: | ODP |
| HORSEPOWER: | 1/2 |
| KILOWATTS: | 0.4 |
| POLES: | 2 |
| NUMBER SPEEDS: | 1 |
| RPM: | 3450 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 115/230 |
| VOLTS : | 115 |
| VOLTS 2: | 230 |
| FRAME : | 56 |
| SHAFT CODE: | J |
| STATOR DIAMETER: | 5.5 |
| STACK: | 1.5 |
| MOUNTING: | J-FACE |
| MOTOR TYPE: | FHP |
| OPPOSITE END BEARING: | BALL |
| SHAFT END BEARING: | BALL |
| AMBIENT: | 40 |
| ROTATION: | CCW DRIVE END |
| SERVICE FACTOR: | 1.6 |
| START CAP MFD: | 198 |
| SHIPPING WEIGHT: | 25 |
| THERMAL PROTECTION: | AUTOMATIC RESET |
| BREAKDOWN TORQUE: | 41.71 |
| BREAKDOWN TORQUE UOM: | OZ FT |
| LOCKED ROTOR TORQUE: | 20.11 |
| LOCKED ROTOR TORQUE UOM: | OZ FT |
| INSULATION CLASS: | B |
| KVA CODE LETTER: | M |
| LOCKED ROTOR AMPS: | 41.87 |
| FULL LOAD AMPS PRIMARY: | 9.6/4.8 |
| SERVICE FACTOR AMPS PRIMARY: | 11.8/5.9 |
