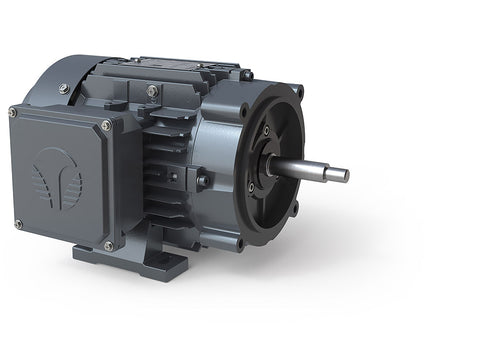

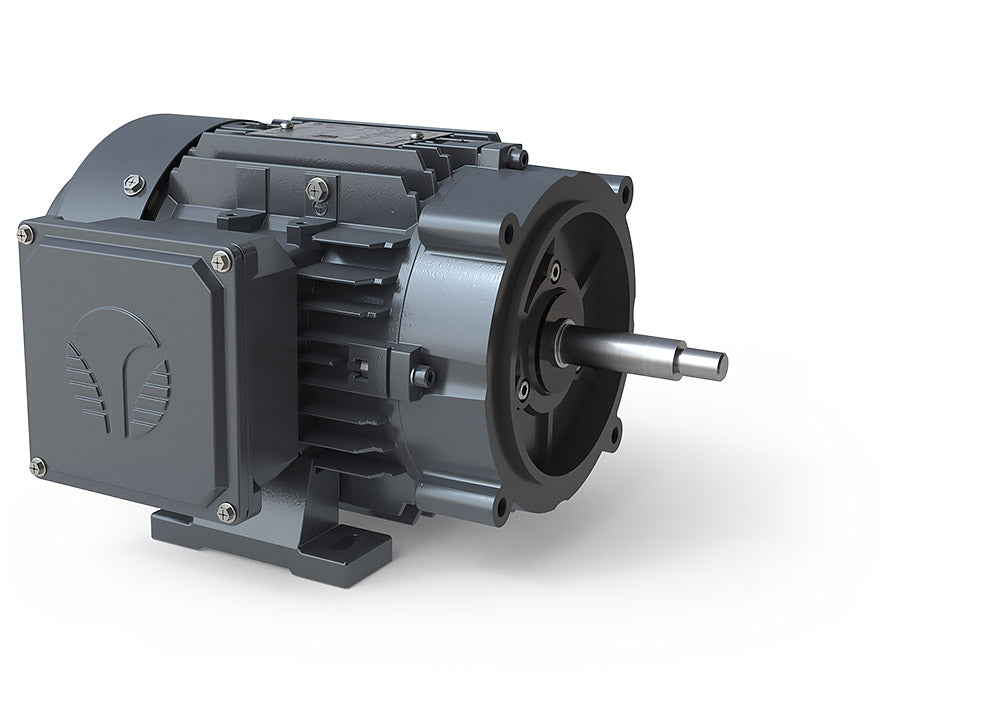

JEP0032F, Techtop, 3 Hp, 3600 Rpm, 575V, Fr: 56J, Pump Motor, TEFC, PREMIUM

• 3 HP
• 3600 RPM
• 575 VOLTS
• FRAME: 56J
• TEFC

STANDARD FEATURES

• Removable feet F1, F2, F0 field convertible
• 1.25 Service Factor with 60Hz operation / 1.0 Service Factor with 50Hz operation
• 36 Month warranty
• Conduit Box is 90º rotatable
• Cast aluminum construction with cast aluminum c-flanges
• Class I, Division II, Groups A, B, C and D compliant
• Anti-microbial (tropicalization) on stator winding
• Compact lightweight design
• Dual oversized shielded bearings
• AISI 304 grade stainless steel threaded shaft
• Surface finish:
  • Alkyd enamel RAL7024 - Graphite Gray
  • Black oxide surface treatment for increased corrosion resistance
• Stainless steel nameplate
• Corrosion resistant hardware

OPERATING PARAMETERS

• Continuous (S1) duty
• Ambient temperatures up to 40ºC
• Installation up to 1000 MASL (3300 ft.)

CONNECTION

• 9-Lead 230V parallel-wye / 460V series-wye connection
• 3-Lead 575V wye connection

INGRESS PROTECTION

The standard degree of enclosure protection is IP55 (increased IP protection is available). Both drive end and non-drive end are fitted with double lip oil seals, including a rubber shaft slinger on the drive end. Terminal box is double gasketed. DE and NDE end bell fitted with sintered brass one-way drain.

INSULATION AND INVERTER RATING

• Class F Insulation (Impregnation resin, magnet wire and insulation materials are Class H)
• Designed to Class B temperature rise
• Vacuum Impregnated
• Inverter Rated 15:1 Constant Torque, 30:1 Variable Torque (1.0 S.F. on VFD Power)
• Exceeds NEMA MG 1 Part 31.4.4.2
