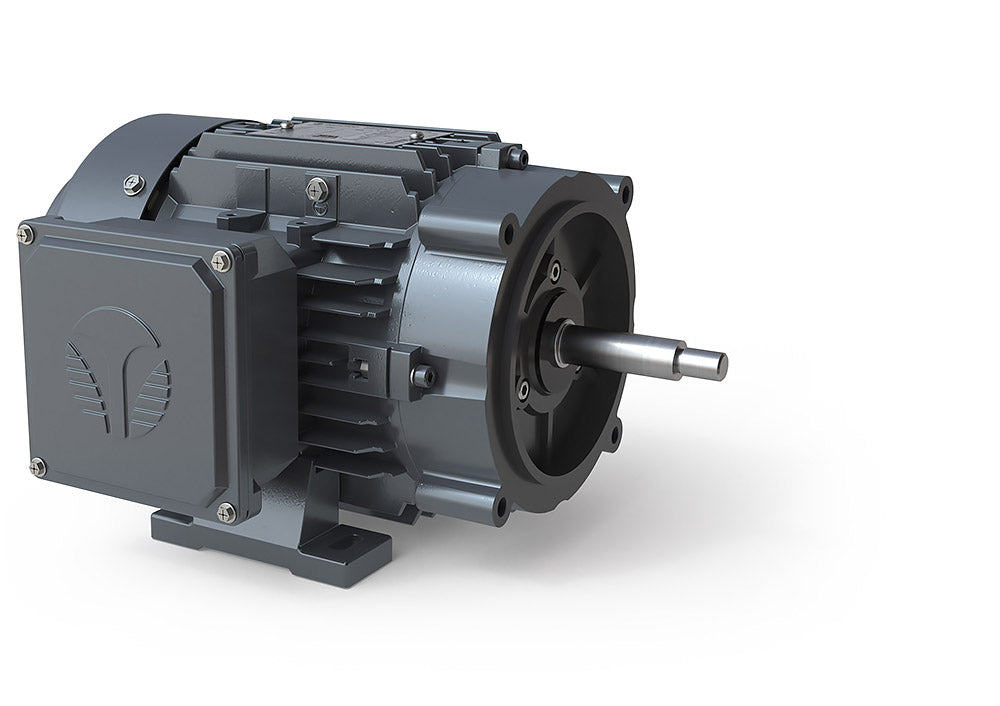

JEP0012FP, Techtop, 1.5 Hp, 3600 Rpm, 575V, Fr: 56J, Pump Motor, TEFC, PREMIUM

TECHTOP

  • $339.13


JEP0012FP, TECHTOP, REPLACE WEG B56J 1298, MPR-152J MAXMOTION, MPRP-152J, 00156ET3HJP56J-S WEG,
  • 1.5 HP
  • 3600 RPM
  • 575 VOLTS
  • FRAME: 56J
  • TEFC

STANDARD FEATURES

  • Removable feet F1, F2, F0 field convertible
  • 1.25 Service Factor with 60Hz operation / 1.0 Service Factor with 50Hz operation
  • 36 Month warranty
  • Conduit Box is 90º rotatable
  • Cast aluminum construction with cast aluminum c-flanges
  • Class I, Division II, Groups A, B, C and D compliant
  • Anti-microbial (tropicalization) on stator winding
  • Compact lightweight design
  • Dual oversized shielded bearings
  • AISI 304 grade stainless steel threaded shaft
  • Surface finish:
    • Alkyd enamel RAL7024 - Graphite Gray
    • Black oxide surface treatment for increased corrosion resistance
  • Stainless steel nameplate
  • Corrosion resistant hardware

OPERATING PARAMETERS

  • Continuous (S1) duty
  • Ambient temperatures up to 40ºC
  • Installation up to 1000 MASL (3300 ft.)


CONNECTION

  • 9-Lead 230V parallel-wye / 460V series-wye connection
  • 3-Lead 575V wye connection


INGRESS PROTECTION

The standard degree of enclosure protection is IP55 (increased IP protection is available). Both drive end and non-drive end are fitted with double lip oil seals, including a rubber shaft slinger on the drive end. Terminal box is double gasketed. DE and NDE end bell fitted with sintered brass one-way drain.


INSULATION AND INVERTER RATING

  • Class F Insulation (Impregnation resin, magnet wire and insulation materials are Class H)
  • Designed to Class B temperature rise
  • Vacuum Impregnated
  • Inverter Rated 15:1 Constant Torque, 30:1 Variable Torque (1.0 S.F. on VFD Power)
  • Exceeds NEMA MG 1 Part 31.4.4.2
