MAGNETEK | SKU:
EMN-019506

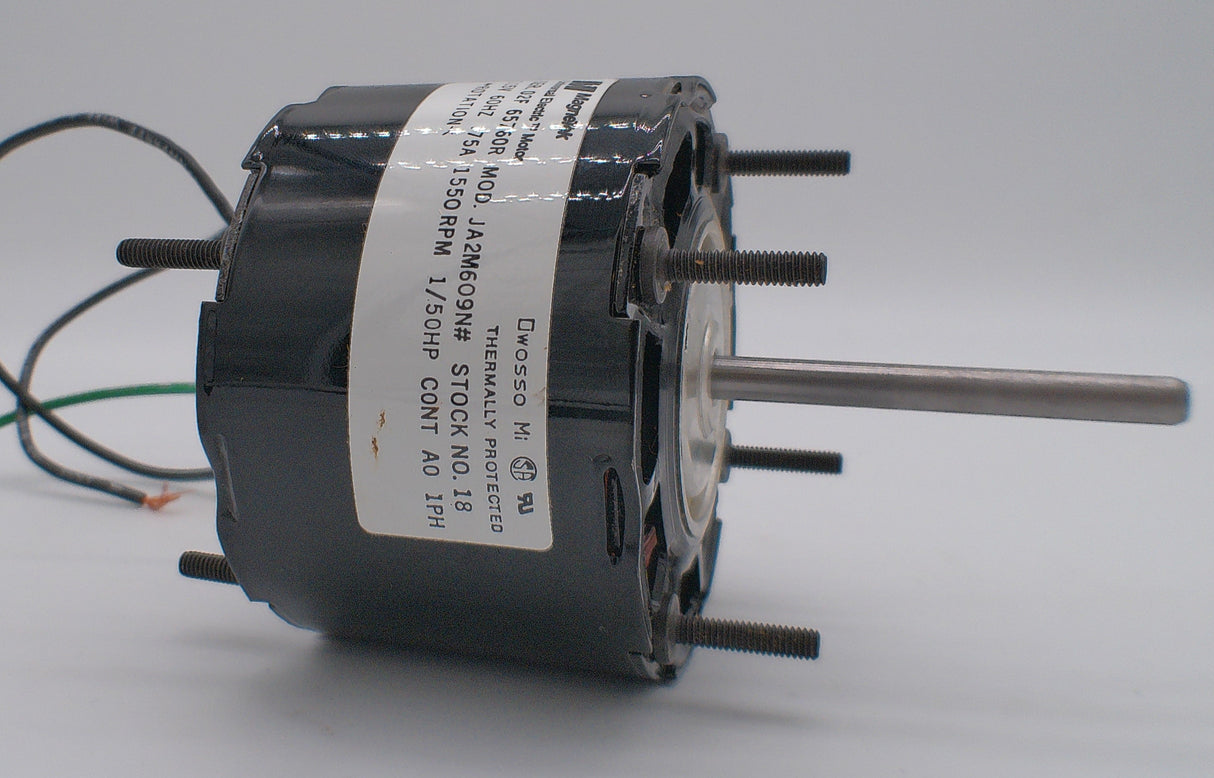

JA2M609N, Magnetek, 1/50 Hp, 1550 Rpm, 115 Volts, Frame: 3.3, OAO,
Regular price
$170.60
Unit price
/
Unavailable
JA2M609N, Magnetek, 1/50 Hp, 1550 Rpm, 115 Volts, Frame: 3.3, OAO, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
JA2M609N, Magnetek, 1/50 Hp, 1550 Rpm, 115 Volts, Frame: 3.3, OAO,
Regular price
$170.60
Unit price
/
Unavailable
Description
Description
JA2M609N, SER. 02F 65760R, Stock no. 18, Magnetek, Replaced By D603 Fasco

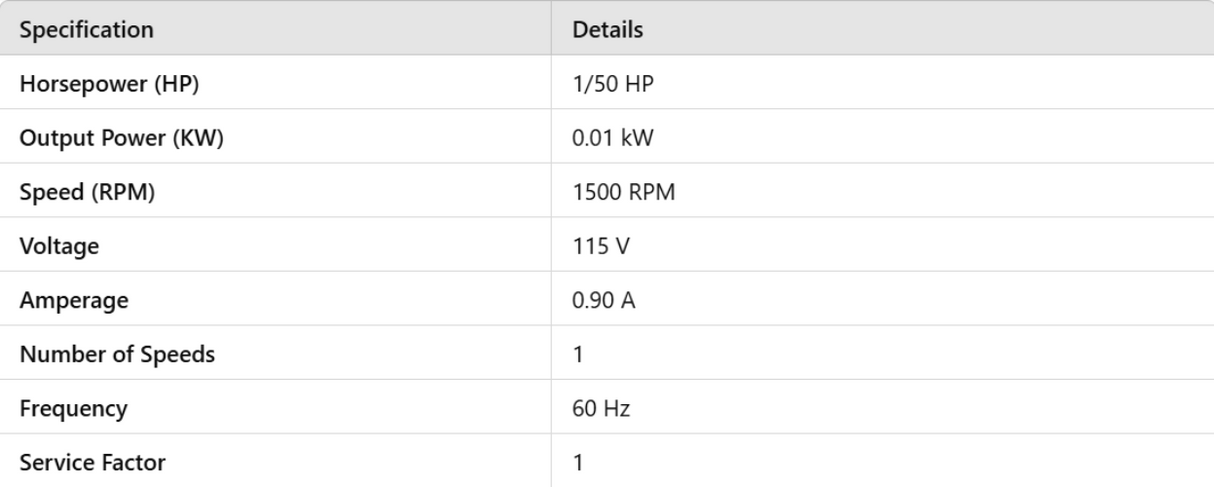

| Specification | Details |
|---|---|
| Horsepower (HP) | 1/50 HP |
| Output Power (KW) | 0.01 kW |
| Speed (RPM) | 1500 RPM |
| Voltage | 115 V |
| Amperage | 0.90 A |
| Number of Speeds | 1 |
| Frequency | 60 Hz |
| Service Factor | 1 |

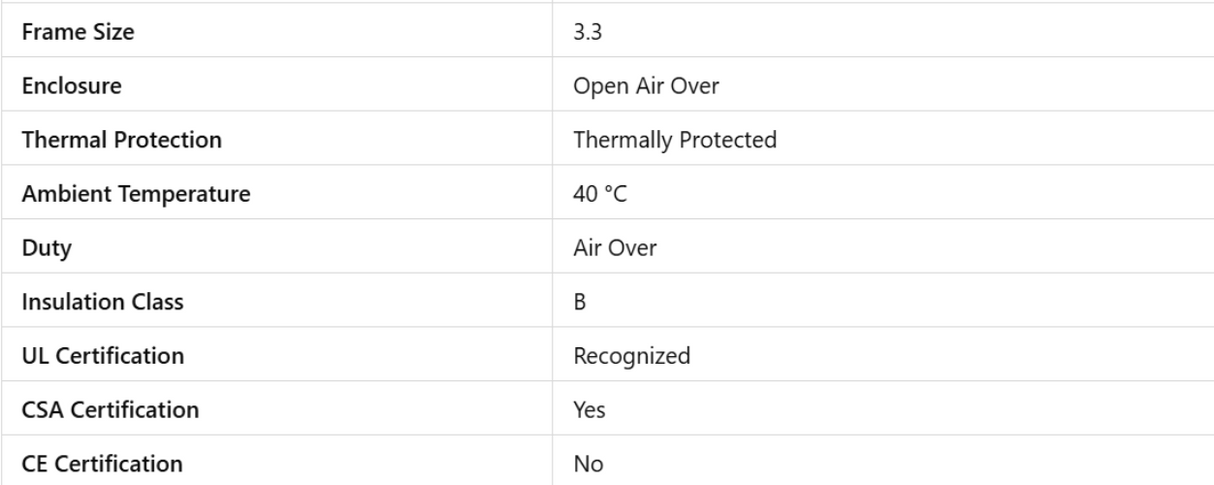

| Frame Size | 3.3 |
| Enclosure | Open Air Over |
| Thermal Protection | Thermally Protected |
| Ambient Temperature | 40 °C |
| Duty | Air Over |
| Insulation Class | B |
| UL Certification | Recognized |
| CSA Certification | Yes |
| CE Certification | No |

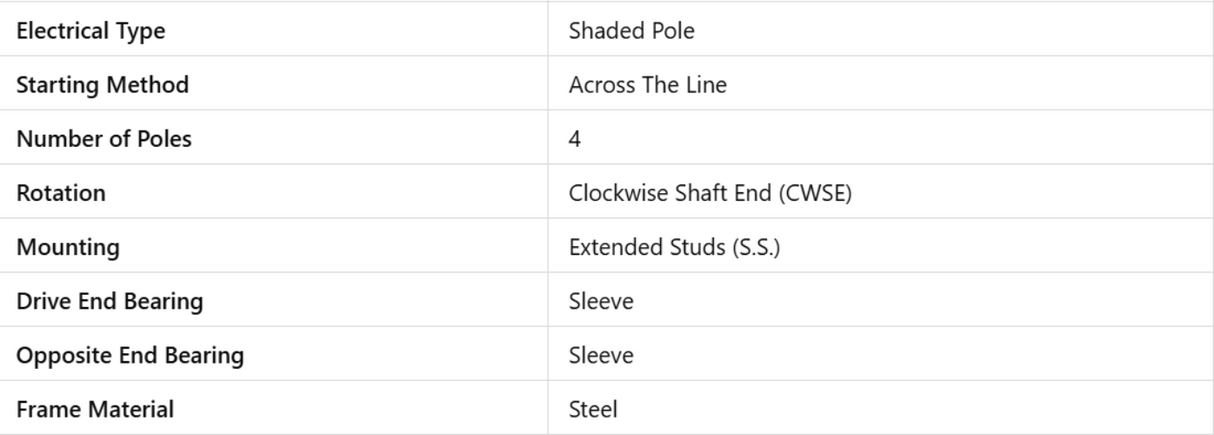

| Electrical Type | Shaded Pole |
| Starting Method | Across The Line |
| Number of Poles | 4 |
| Rotation | Clockwise Shaft End (CWSE) |
| Mounting | Extended Studs (S.S.) |
| Drive End Bearing | Sleeve |
| Opposite End Bearing | Sleeve |
| Frame Material | Steel |
| Shaft Type | Flat |
| Body Length | 2.10 in |
