MARATHON | SKU:
EMN-017395
J034,Marathon,1/2Hp,3450Rpm,115/230V,Fr:56J,ODP,5KC36JN269X,C331,
Regular price
$358.62
Unit price
/
Unavailable
J034,Marathon,1/2Hp,3450Rpm,115/230V,Fr:56J,ODP,5KC36JN269X,C331, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
J034,Marathon,1/2Hp,3450Rpm,115/230V,Fr:56J,ODP,5KC36JN269X,C331,
Regular price
$358.62
Unit price
/
Unavailable
Description
Description
J034,Marathon,5KC36JN269X,C331,C331V1,C055JZN4768013J,EU0502,

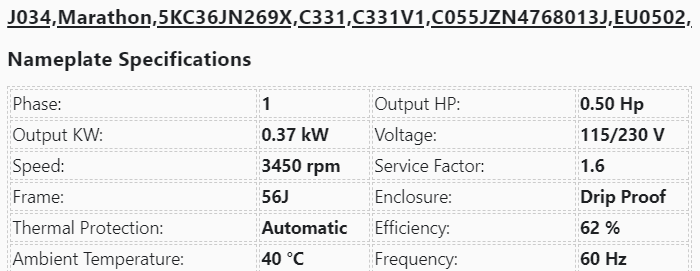

Nameplate Specifications
| Phase: | 1 | Output HP: | 0.50 Hp |
| Output KW: | 0.37 kW | Voltage: | 115/230 V |
| Speed: | 3450 rpm | Service Factor: | 1.6 |
| Frame: | 56J | Enclosure: | Drip Proof |
| Thermal Protection: | Automatic | Efficiency: | 62 % |
| Ambient Temperature: | 40 °C | Frequency: | 60 Hz |

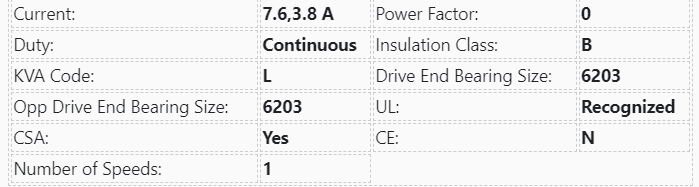

| Current: | 7.6,3.8 A | Power Factor: | 0 |
| Duty: | Continuous | Insulation Class: | B |
| KVA Code: | L | Drive End Bearing Size: | 6203 |
| Opp Drive End Bearing Size: | 6203 | UL: | Recognized |
| CSA: | Yes | CE: | N |
| Number of Speeds: | 1 |

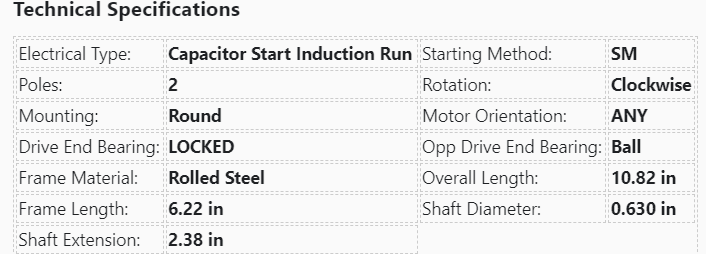

Technical Specifications
| Electrical Type: | Capacitor Start Induction Run | Starting Method: | SM |
| Poles: | 2 | Rotation: | Clockwise |
| Mounting: | Round | Motor Orientation: | ANY |
| Drive End Bearing: | LOCKED | Opp Drive End Bearing: | Ball |
| Frame Material: | Rolled Steel | Overall Length: | 10.82 in |
| Frame Length: | 6.22 in | Shaft Diameter: | 0.630 in |
| Shaft Extension: | 2.38 in |

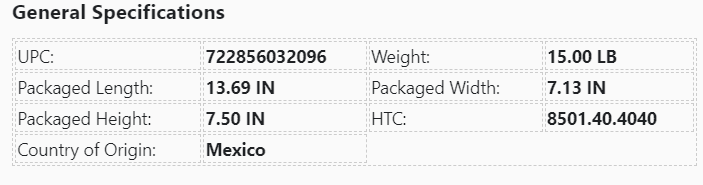

General Specifications
| UPC: | 722856032096 | Weight: | 15.00 LB |
| Packaged Length: | 13.69 IN | Packaged Width: | 7.13 IN |
| Packaged Height: | 7.50 IN | HTC: | 8501.40.4040 |
| Country of Origin: | Mexico |

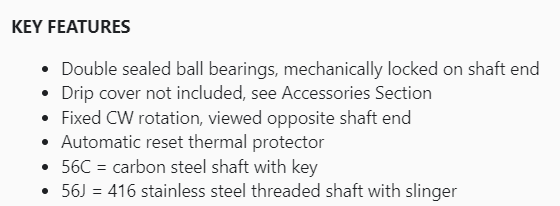

KEY FEATURES
- Double sealed ball bearings, mechanically locked on shaft end
- Drip cover not included, see Accessories Section
- Fixed CW rotation, viewed opposite shaft end
- Automatic reset thermal protector
- 56C = carbon steel shaft with key
- 56J = 416 stainless steel threaded shaft with slinger
