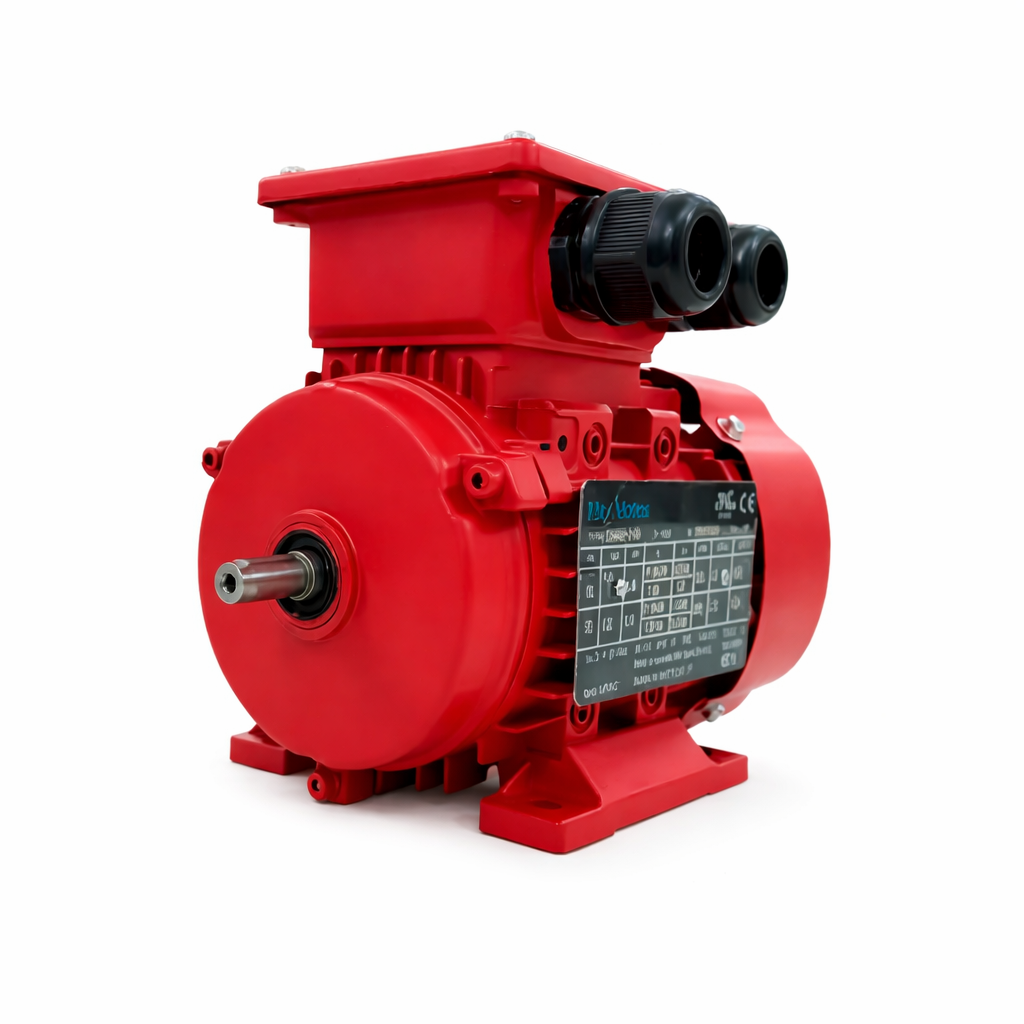

IJC180L‑4‑46, 30Hp, 1760 RPM, 230/460 V, 3‑Phase, 60 Hz, TEFC, Frame 180L
IJC180L‑4‑46, 30Hp, 1760 RPM, 230/460 V, 3‑Phase, 60 Hz, TEFC, Frame 180L is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Estimate shipping
Please correct the following errors:
IJC180L‑4‑46, 30Hp, 1760 RPM, 230/460 V, 3‑Phase, 60 Hz, TEFC, Fram...
Description
Description

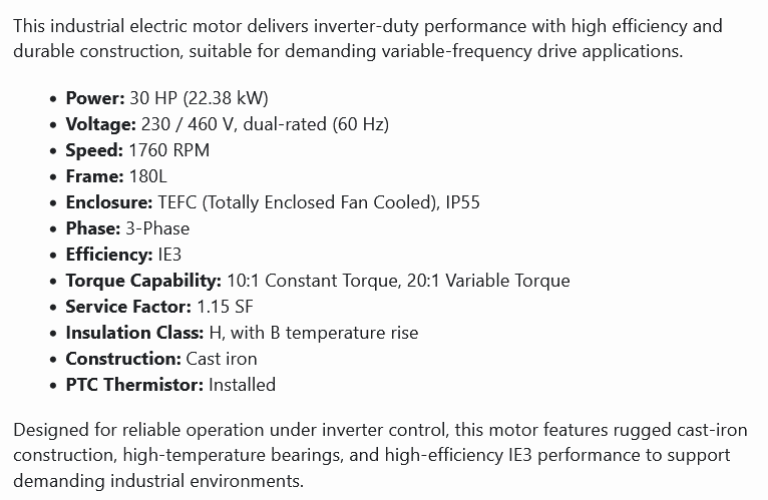

This industrial electric motor delivers inverter‑duty performance with high efficiency and durable construction, suitable for demanding variable‑frequency drive applications.
- Power: 30 HP (22.38 kW)
- Voltage: 230 / 460 V, dual‑rated (60 Hz)
- Speed: 1760 RPM
- Frame: 180L
- Enclosure: TEFC (Totally Enclosed Fan Cooled), IP55
- Phase: 3‑Phase
- Efficiency: IE3
- Torque Capability: 10:1 Constant Torque, 20:1 Variable Torque
- Service Factor: 1.15 SF
- Insulation Class: H, with B temperature rise
- Construction: Cast iron
- PTC Thermistor: Installed
Designed for reliable operation under inverter control, this motor features rugged cast‑iron construction, high‑temperature bearings, and high‑efficiency IE3 performance to support demanding industrial environments.
