IJA711-2-24, 0.50 HP, 3600 RPM, 208-230/460V, FRAME 71L, TEFC, MAXMOTION

MAXMOTION

  • $228.67


METRIC IEC ALUMINUM & CAST IRON CONSTRUCTION

TEFC TOTALLY ENCLOSED FAN COOLED IE1, and IE3 EFFICIENCIES

FEATURES:

  • IP55 weather protection

  • Class H Insulation, with B Temp Rise

  • Inverter Duty Magnet Wire,

    meets MG1 Part 31 10:1 CT, 20:1 VT

  • SKF High Temp bearings

  • 56-112 Frames come with

    Seal/lubricated Bearings,
    132 and larger are re-greasable

  • Aluminum Construction 56-160 frame, Cast Iron 180-500 frame

  • Rotatable/Removable Base 63-160 Frame, Rigid Base 180 larger

  • PTC installed on frames 132 and larger

  • IEC Design N, with NEMA B Torques

  • Terminal Blocks, Stud

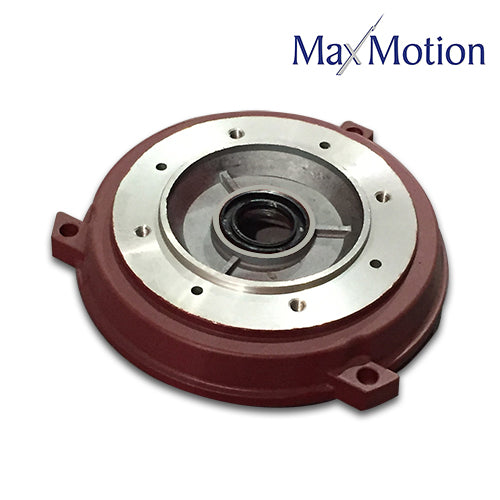

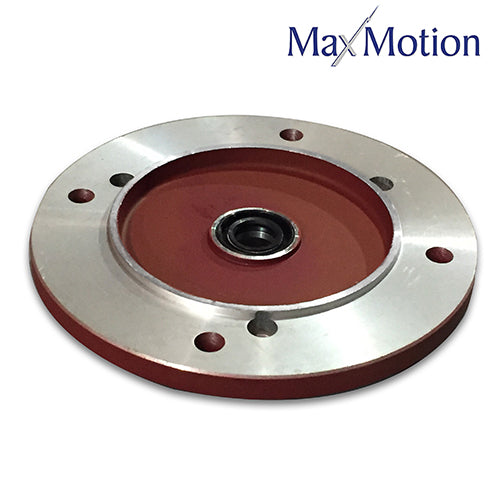

  • B14 and B5 Flanges are available

  • MAX MOTION
HP 0.50
CAT. # IJA711-2-24
RPM 3600
VOLTAGE 208-230/460
FRAME 71
TORQUE (IN.LBS.)
WGT. LBS. 21.6
“L” DIM. 242
KW 0.37
EFF IE1
IJA
