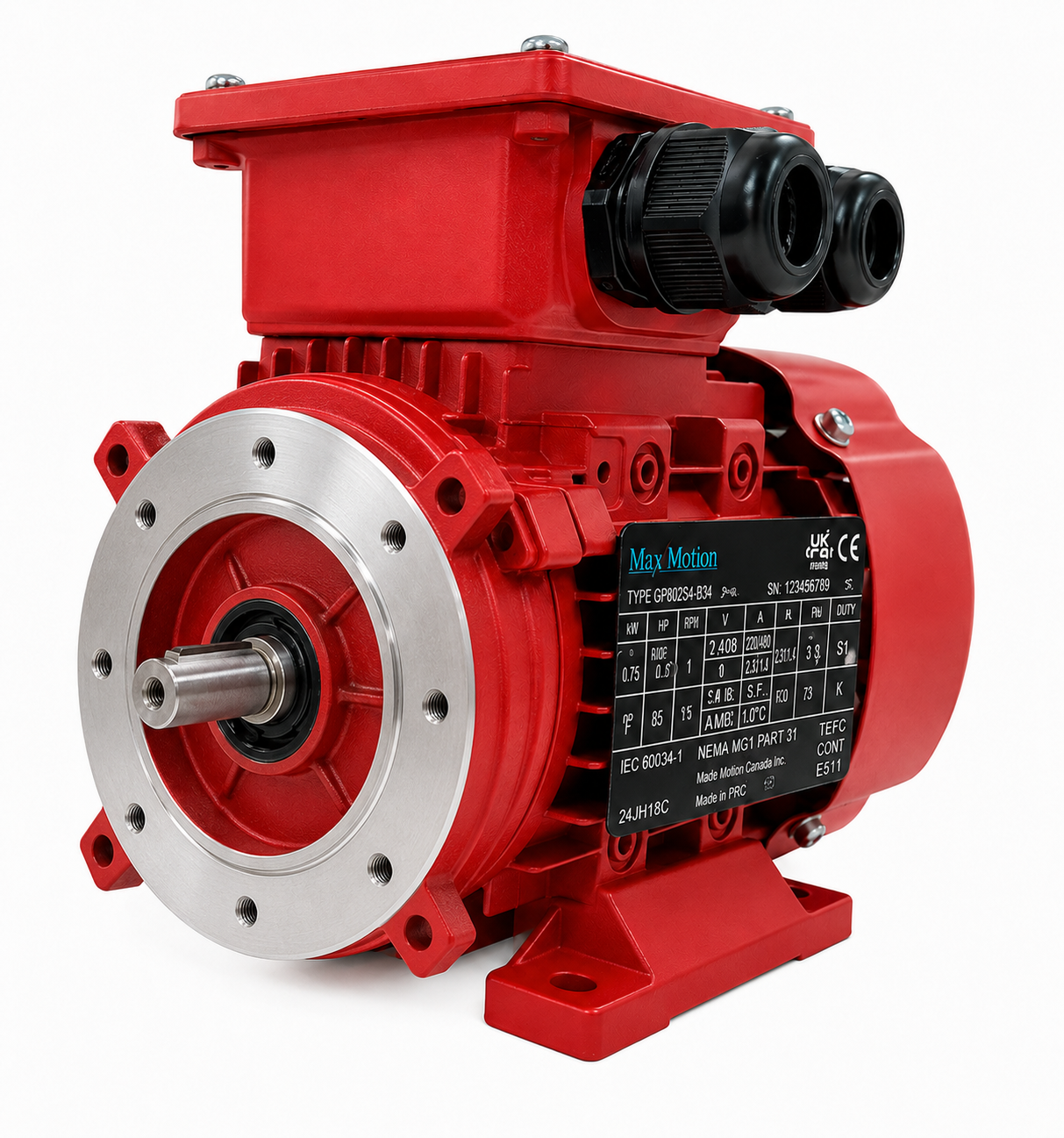

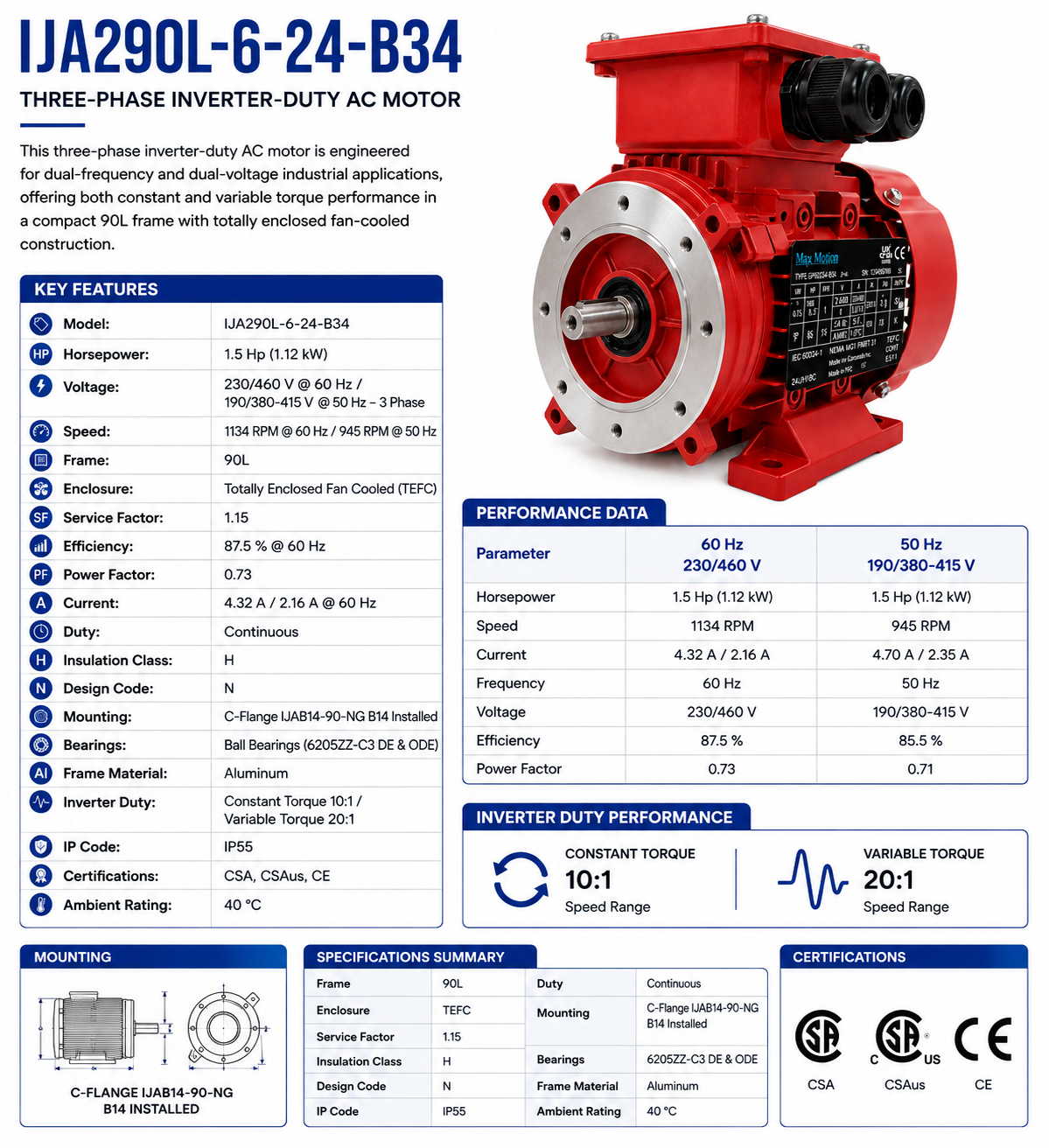

IJA290L‑6‑24-B34, 1.5Hp, 1134 RPM @ 60 Hz / 945 RPM @ 50 Hz, 230/460 V @ 60 Hz / 190/380‑415 V @ 50 Hz, 3 Ph, TEFC, Frame 90L (Copy)

This three‑phase inverter‑duty AC motor is engineered for dual‑frequency and dual‑voltage industrial applications, offering both constant and variable torque performance in a compact 90L frame with totally enclosed fan‑cooled construction.

KEY FEATURES

• Model: IJA290L‑6‑24-B34

• Horsepower: 1.5 Hp (1.12 kW)

• Voltage: 230/460 V @ 60 Hz / 190/380‑415 V @ 50 Hz – 3 Phase

• Speed: 1134 RPM @ 60 Hz / 945 RPM @ 50 Hz

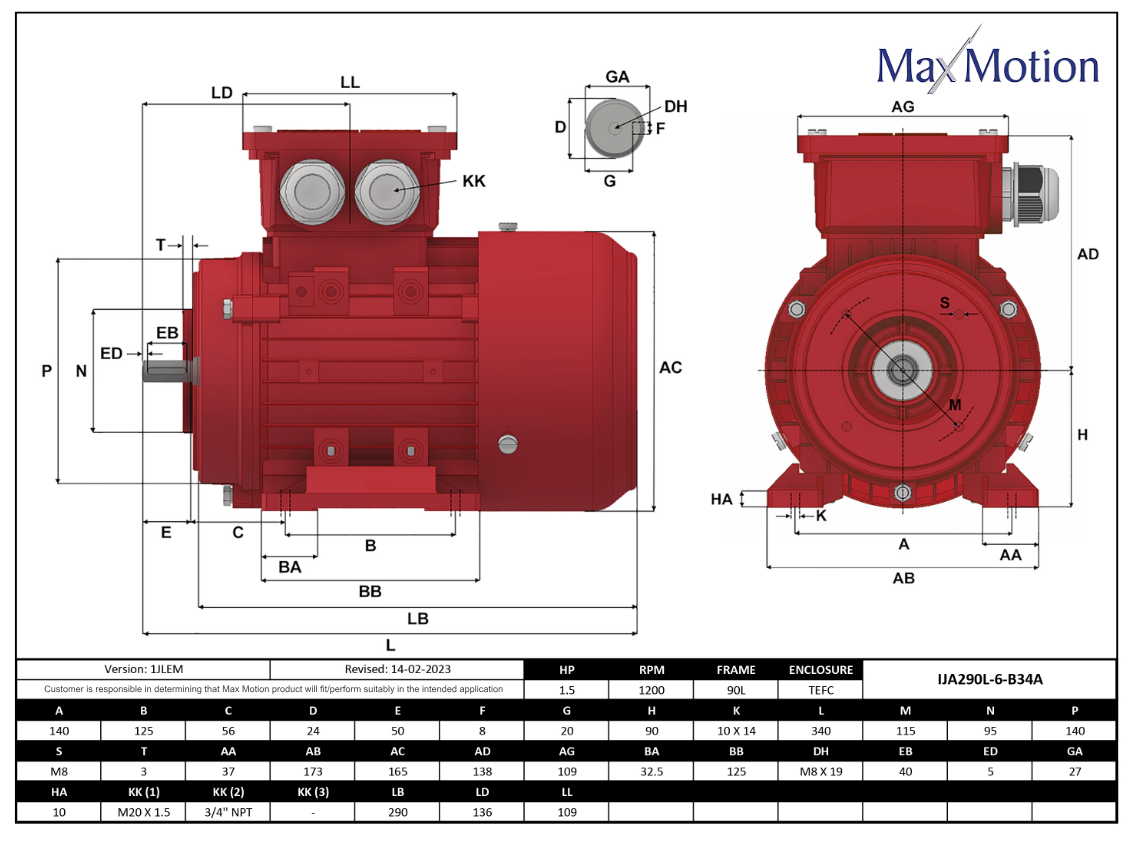

• Frame: 90L

• Enclosure: Totally Enclosed Fan Cooled (TEFC)

• Service Factor: 1.15

• Efficiency: 87.5 % @ 60 Hz

• Power Factor: 0.73

• Current: 4.32 A / 2.16 A @ 60 Hz

• Duty: Continuous

• Insulation Class: H

• Design Code: N

• Mounting: C-Flange IJAB14-90-NG B14 Installed

• Bearings: Ball Bearings (6205ZZ‑C3 DE & ODE)

• Frame Material: Aluminum

• Inverter Duty: Constant Torque 10:1 / Variable Torque 20:1

• IP Code: IP55

• Certifications: CSA, CSAus, CE

• Ambient Rating: 40 °C
