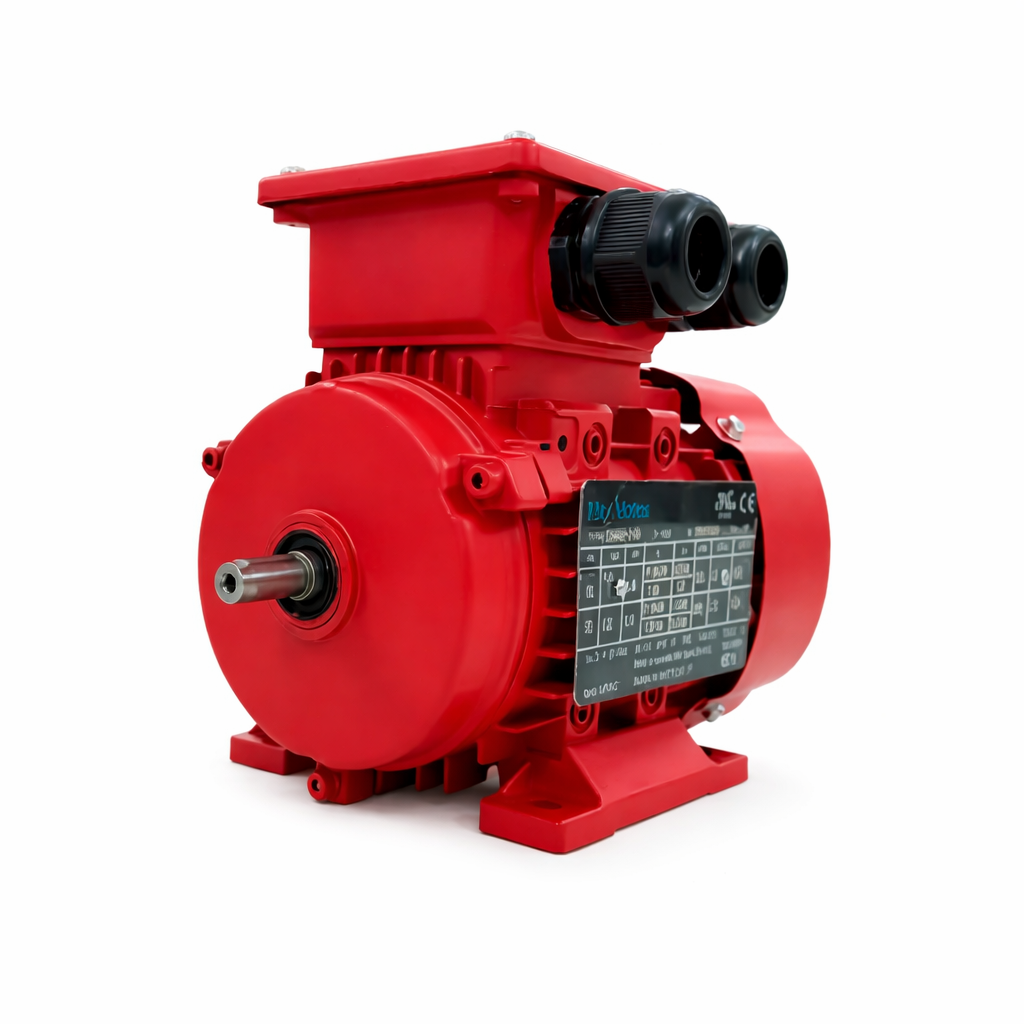

IJA290L-4-24-B35, 2Hp, 1734 RPM, 208-230/460V, 3Ph, 60-50Hz, TEFC, Frame 90L +B5, IP55

IJA290L-4-24-B35, 2Hp, 1734 RPM, 208-230/460V, 3Ph, 60-50Hz, TEFC, Frame 90L +B5, IP55

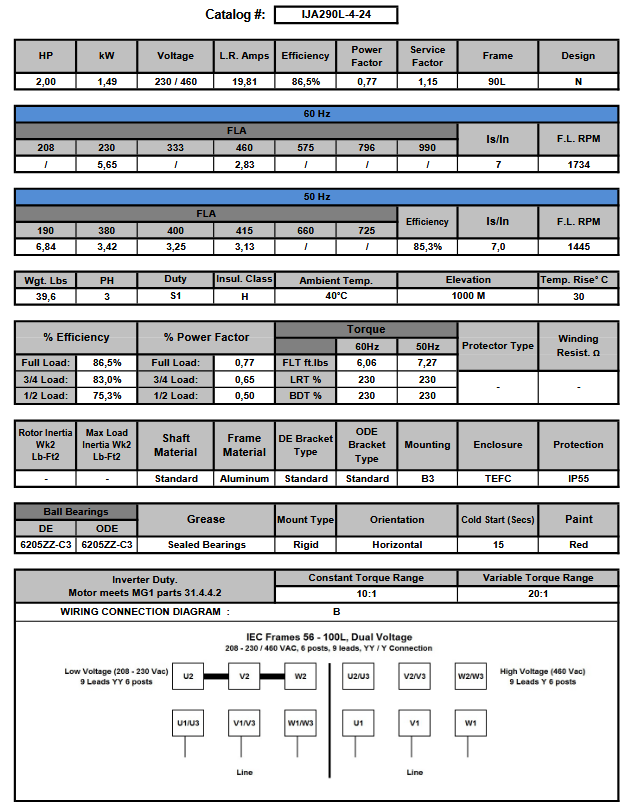

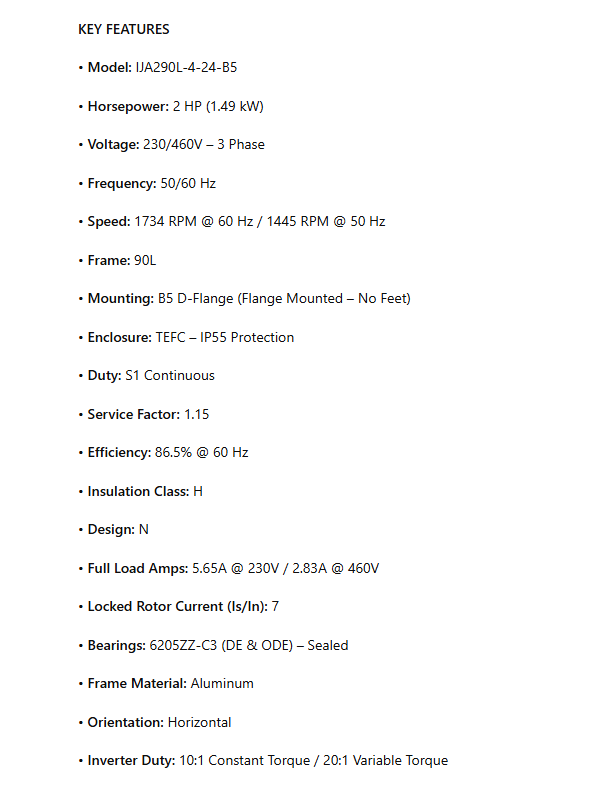

KEY FEATURES

• Model: IJA290L-4-24-B35

• Horsepower: 2 HP (1.49 kW)

• Voltage: 230/460V – 3 Phase

• Speed: 1734 RPM @ 60 Hz / 1445 RPM @ 50 Hz

• Frame: 90L

• Mounting: Foot Mounted with B5 D-Flange Installed

• Enclosure: TEFC – IP55 Protection

• Duty: S1 Continuous

• Service Factor: 1.15

• Efficiency: 86.5% @ 60 Hz

• Insulation Class: H

• Design: N

• Full Load Amps: 5.65A @ 230V / 2.83A @ 460V

• Locked Rotor Current (Is/In): 7

• Bearings: 6205ZZ-C3 (Drive End & Opposite End) – Sealed

• Frame Material: Aluminum

• Orientation: Horizontal

• Inverter Duty: 10:1 Constant Torque / 20:1 Variable Torque

• Cold Start Time: 15 Seconds
