IJA290L-4-24, 2Hp, 1734 RPM, 208-230/460V, 3Ph, 60-50Hz, TEFC, Frame 90L, IP55, (131mm O.D. NO GROOVE)

IJA290L-4-24, 2Hp, 1734 RPM, 208-230/460V, 3Ph, 60-50Hz, TEFC, Frame 90L, IP55, (131mm O.D. NO GROOVE)

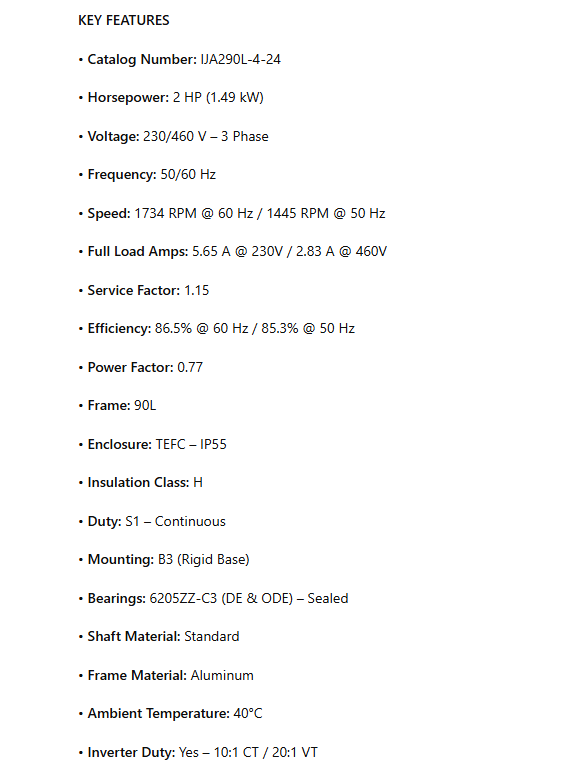

KEY FEATURES

• Catalog Number: IJA290L-4-24

• Horsepower: 2 HP (1.49 kW)

• Voltage: 230/460 V – 3 Phase

• Frequency: 50/60 Hz

• Speed: 1734 RPM @ 60 Hz / 1445 RPM @ 50 Hz

• Full Load Amps: 5.65 A @ 230V / 2.83 A @ 460V

• Service Factor: 1.15

• Efficiency: 86.5% @ 60 Hz / 85.3% @ 50 Hz

• Power Factor: 0.77

• Frame: 90L

• Enclosure: TEFC – IP55

• Insulation Class: H

• Duty: S1 – Continuous

• Mounting: B3 (Rigid Base)

• Bearings: 6205ZZ-C3 (DE & ODE) – Sealed

• Shaft Material: Standard

• Frame Material: Aluminum

• Ambient Temperature: 40°C

• Inverter Duty: Yes – 10:1 CT / 20:1 VT
