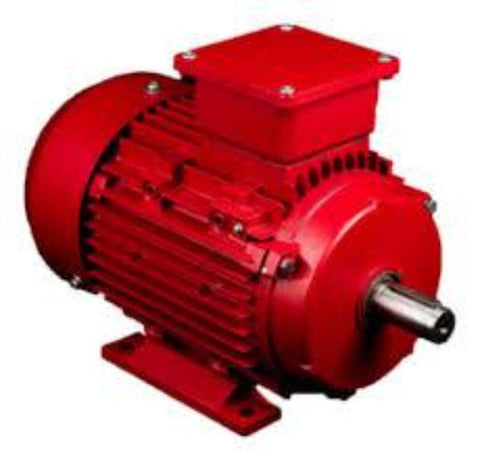

IJA112M-2-46, 5.5 HP, 3600 RPM, 208-230/460V, FRAME 112L,TEFC,MAXMOTION

MAXMOTION

  • $745.00


METRIC IEC ALUMINUM & CAST IRON CONSTRUCTION

TEFC TOTALLY ENCLOSED FAN COOLED IE1, and IE3 EFFICIENCIES

FEATURES:

    • IP55 weather protection

    • Class H Insulation, with B Temp Rise

    • Inverter Duty Magnet Wire,

      meets MG1 Part 31 10:1 CT, 20:1 VT

    • SKF High Temp bearings

    • 56-112 Frames come with

      Seal/lubricated Bearings,
      132 and larger are re-greasable

    • Aluminum Construction 56-160 frame, Cast Iron 180-500 frame

    • Rotatable/Removable Base 63-160 Frame, Rigid Base 180 larger

    • PTC installed on frames 132 and larger

    • IEC Design N, with NEMA B Torques
  • Terminal Blocks, Stud

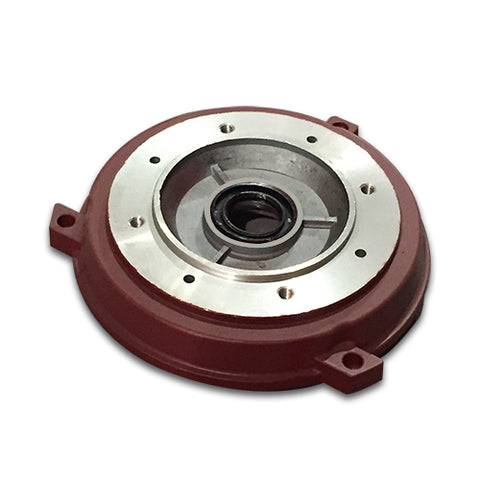

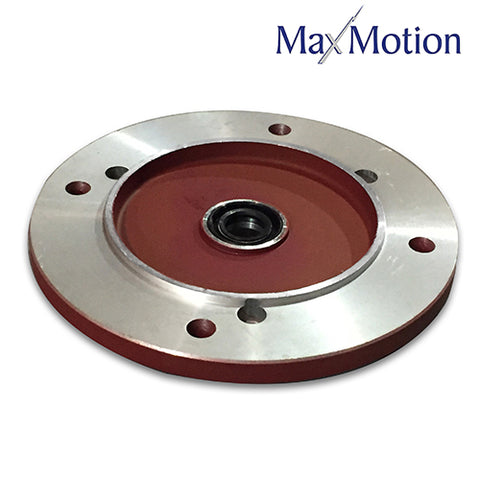

  • B14 and B5 Flanges are available

  • MAX MOTION ELECTRIC MOTOR



HP 5.5
CAT. # IJA112M-2-46
RPM 3600
VOLTAGE 208-230/460
FRAME 112
TORQUE (IN.LBS.)
WGT. LBS. 106.4532
“L” DIM. 395
KW 4
EFF IE3



IJA
