IDVSWDM3554, Baldor 1.5Hp, 1770RPM, 3PH, 60HZ ,56C, 3524M, TEFC, F1, 35S640L955G1

E-Motor Nations

$3,211.83

IDVSWDM3554, Baldor 1.5Hp, 1770RPM, 3PH, 60HZ ,56C, 3524M, TEFC, F1, 35S640L955G1

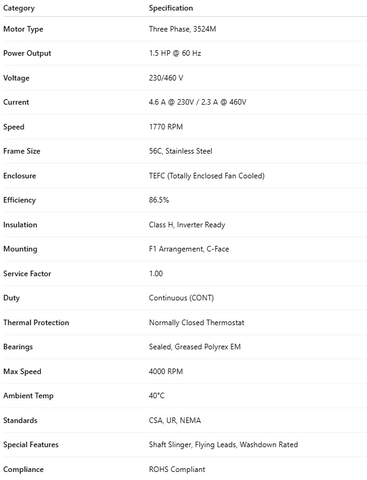

Category	Specification
Motor Type	Three Phase, 3524M
Power Output	1.5 HP @ 60 Hz
Voltage	230/460 V
Current	4.6 A @ 230V / 2.3 A @ 460V
Speed	1770 RPM
Frame Size	56C, Stainless Steel
Enclosure	TEFC (Totally Enclosed Fan Cooled)
Efficiency	86.5%
Insulation	Class H, Inverter Ready
Mounting	F1 Arrangement, C-Face
Service Factor	1.00
Duty	Continuous (CONT)
Thermal Protection	Normally Closed Thermostat
Bearings	Sealed, Greased Polyrex EM
Max Speed	4000 RPM
Ambient Temp	40°C
Standards	CSA, UR, NEMA
Special Features	Shaft Slinger, Flying Leads, Washdown Rated
Compliance	ROHS Compliant
