I55AP322F00311K00S, i550 protec, NEMA 1 / IP31, 22.0 kW, 30.0Hp, 3ph 400/480V, Standard I/O, no safety technology, no extension box, LCD keypad module

I55AP322F00311K00S, i550 protec, NEMA 1 / IP31, 22.0 kW, 30.0Hp, 3ph 400/480V, Standard I/O, no safety technology, no extension box, LCD keypad module

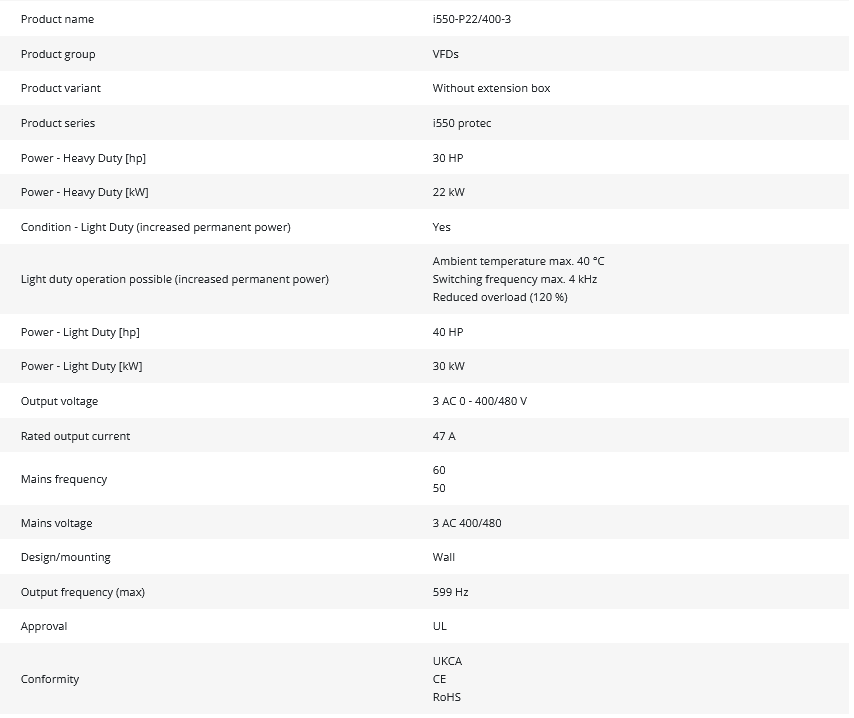

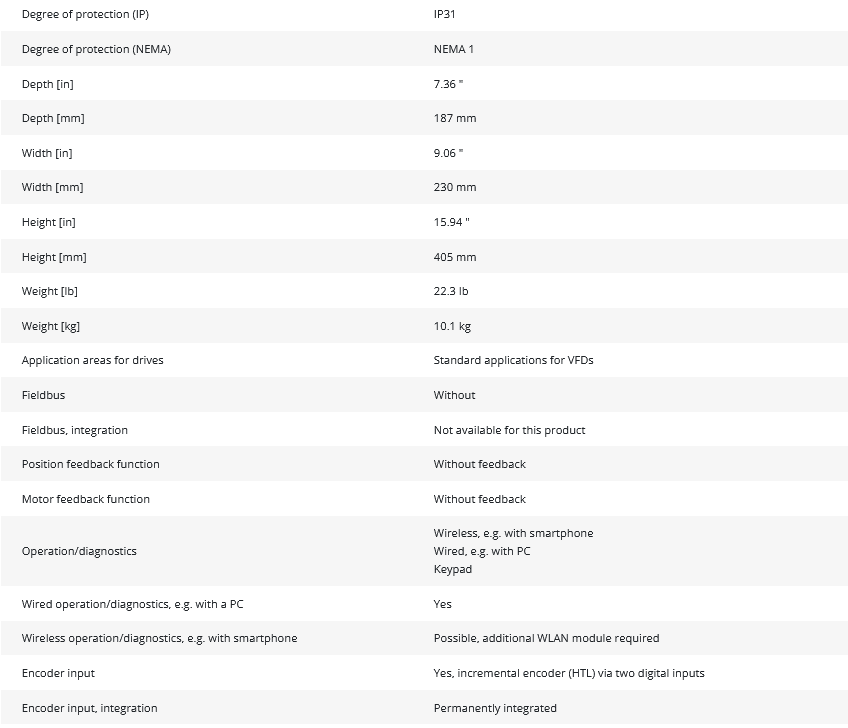

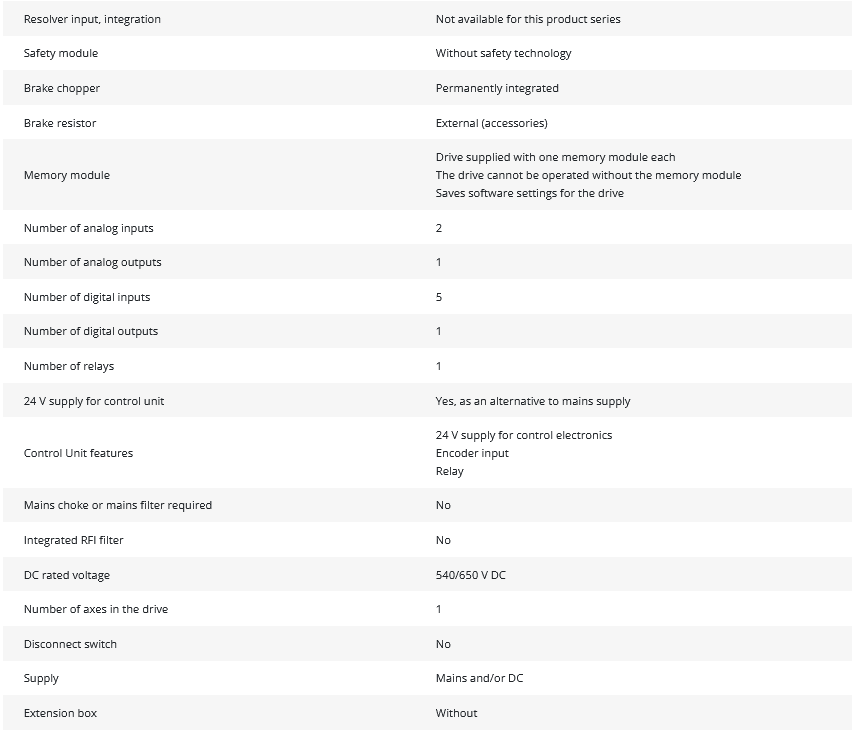

KEY FEATURES

• Product Name: i550-P22/400-3

• Product Group / Series: VFDs, i550 protec (without extension box)

• Power (Heavy Duty): 30 HP / 22 kW

• Power (Light Duty): 40 HP / 30 kW

• Voltage: 3 AC 400/480 V

• Rated Output Current: 47 A

• Frequency: 50 / 60 Hz

• Output Frequency (max): 599 Hz

• Mounting / Design: Wall

• Degree of Protection: IP31 / NEMA 1

• Ambient Temperature: 40 °C

• Efficiency Mode: Reduced overload 120 %

• Dimensions (H×W×D): 15.94 × 9.06 × 7.36 in (405 × 230 × 187 mm)

• Weight: 22.3 lb (10.1 kg)

• Approvals / Conformity: UL, CE, RoHS, UKCA

• Encoder Input: Yes, incremental HTL (integrated)

• Analog I/O: 2 inputs / 1 output

• Digital I/O: 5 inputs / 1 output

• Relays: 1

• Control Supply: 24 V option for control unit and electronics

• Brake Chopper: Permanently integrated (external brake resistor available)

• Memory Module: Included, required for operation

The award-winning i550 protec frequency inverter uses the same tried-and-tested technology used in our control cabinet inverters. It only differs in terms of a higher degree of housing protection and an adapted design. If there is not enough space in the control cabinet or the inverter has to be mounted close to the motor in various machine modules, then this versatile and reliable device is the right solution. Thanks to the extension box, a disconnect switch and operating elements can be used.

The requirements of the Ecodesign Directive, Standard EN IEC 61800-9-2, are met.

Application areas: Conveyor drives, traveling drives, winding drives, hoist drives, extruders, packaging machines, pumps, fans, ...
