I51AE175D10V01001S, i510-C INVERTER 1Hp 1/3PH(i/p) 230V / 230V 3PH(o/p) / 4.2A (o/p) / BASIC IO / CANopen / MODBUS-RTU / IP20
I51AE175D10V01001S, i510-C INVERTER 1Hp 1/3PH(i/p) 230V / 230V 3PH(o/p) / 4.2A (o/p) / BASIC IO / CANopen / MODBUS-RTU / IP20

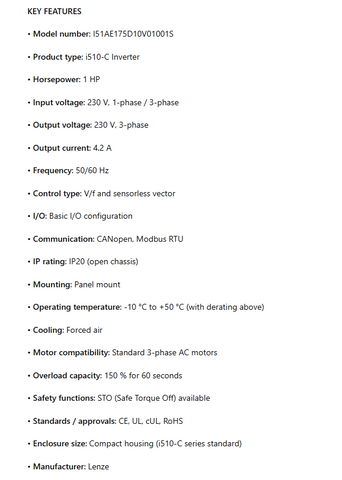

KEY FEATURES
• Model number: I51AE175D10V01001S
• Product type: i510-C Inverter
• Horsepower: 1 HP
• Input voltage: 230 V, 1-phase / 3-phase
• Output voltage: 230 V, 3-phase
• Output current: 4.2 A
• Frequency: 50/60 Hz
• Control type: V/f and sensorless vector
• I/O: Basic I/O configuration
• Communication: CANopen, Modbus RTU
• IP rating: IP20 (open chassis)
• Mounting: Panel mount
• Operating temperature: -10 °C to +50 °C (with derating above)
• Cooling: Forced air
• Motor compatibility: Standard 3-phase AC motors
• Overload capacity: 150 % for 60 seconds
• Safety functions: STO (Safe Torque Off) available
• Standards / approvals: CE, UL, cUL, RoHS
• Enclosure size: Compact housing (i510-C series standard)
• Manufacturer: Lenze
Series Features
- Slimline design for compact installation
- Scalable functionality
- Ideal for simple speed/torque applications up to 3 HP
- Keypad module sold separately (I5MADK0000000S)
- IP20 protection rating
- Zero-clearance mounting (side-by-side without derating)
- Modular system for flexible configurations
- Suitable for pumps, fans, conveyors, winders, tool, and hoist drives
- Three setup methods: keypad, smart keypad-app, EASY starter
- Available with or without CANopen/Modbus-RTU
- Overload capacity: 200% for short-term transients, 150% for 60 seconds
- DC-injection braking
- V/f control (linear, quadratic, VFCeco)
- Sensorless vector control
- Digital I/O (5/1), Analog I/O (2/1)
- Does not support positioning
- PNP/Active High logic only (i550 supports both PNP/Active High and NPN/Active Low logic)
