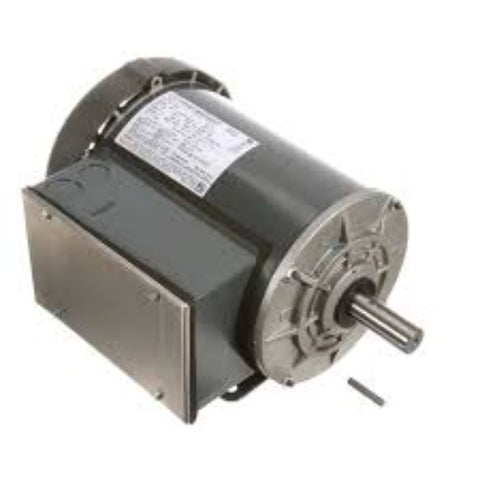

I220, Marathon, 1.5 Hp, 3485 Rpm, 115-208/230V, Fr:143T, 143TBFR5301, TEFC

MARATHON

  • $601.07


I220, Marathon, 143TBFR5301, MTR-152FDCH, Maxmotion

Nameplate Specifications

Output HP : 1.50 HP Output KW : 1.1 kW
Frequency : 60 Hz Voltage : 115/208-230 V
Current : 14.2/7.7-7.1 A Speed : 3485 RPM
Service Factor : 1.15 Phase : 1
Efficiency : 78.5 % Duty : Continous
Insulation Class : B Design Code : L
KVA Code : H Frame : 143T
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : Y
IP Code : 43
Technical Specifications

Electrical Type : Capacitor Start Capacitor Run Starting Method : Across The Line
Poles : 2 Rotation : Selective Counterclockwise
Mounting : Rigid base Motor Orientation : Horizontal
Drive End Bearing : Ball Opp Drive End Bearing : Ball
Frame Material : Rolled Steel Shaft Type : T
Overall Length : 12.87 in Frame Length : 7.56 in
Shaft Diameter : 0.875 in Shaft Extension : 2.28 in
Assembly/Box Mounting : F1 Only UPC : 722856008886
Weight : 33.00 LB
