HT020504NPW22, W22 NEMA Premium Efficiency 20Hp 1770 RPM 4P 254/6T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted

HT020504NPW22,  W22 NEMA Premium Efficiency 20Hp 1770 RPM 4P 254/6T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted

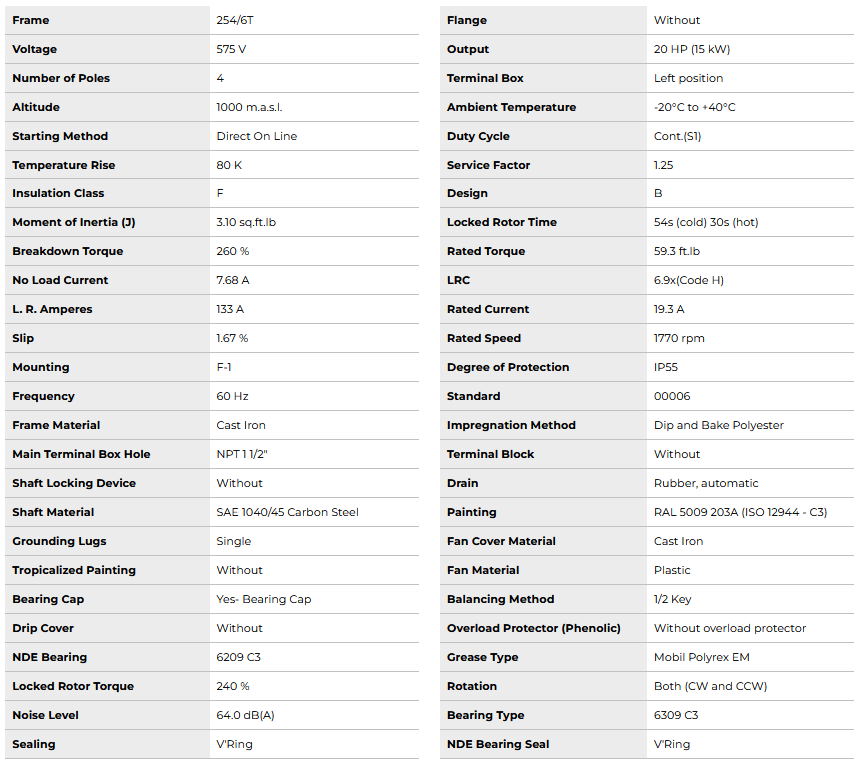

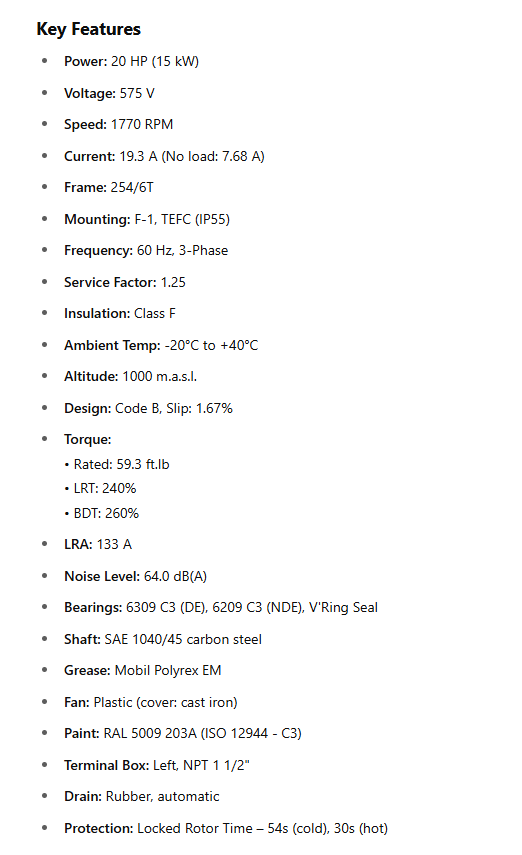

Key Features

• Power: 20 HP (15 kW)

• Voltage: 575 V

• Speed: 1770 RPM

• Current: 19.3 A (No load: 7.68 A)

• Frame: 254/6T

• Mounting: F-1, TEFC (IP55)

• Frequency: 60 Hz, 3-Phase

• Service Factor: 1.25

• Insulation: Class F

• Ambient Temp: -20°C to +40°C

• Altitude: 1000 m.a.s.l.

• Design: Code B, Slip: 1.67%

• Torque:
  • Rated: 59.3 ft.lb
  • LRT: 240%
  • BDT: 260%

• LRA: 133 A

• Noise Level: 64.0 dB(A)

• Bearings: 6309 C3 (DE), 6209 C3 (NDE), V'Ring Seal

• Shaft: SAE 1040/45 carbon steel

• Grease: Mobil Polyrex EM

• Fan: Plastic (cover: cast iron)

• Paint: RAL 5009 203A (ISO 12944 - C3)

• Terminal Box: Left, NPT 1 1/2"

• Drain: Rubber, automatic

• Protection: Locked Rotor Time – 54s (cold), 30s (hot)
