MARATHON  |  SKU: EMN-018183

HG706, Marathon, 1/3-1/6Hp, 1 Ph, 60 Hz, 115 V, 1800 rpm, Fr:56Z, DP,

$329.00
shipping

Estimate shipping

Description

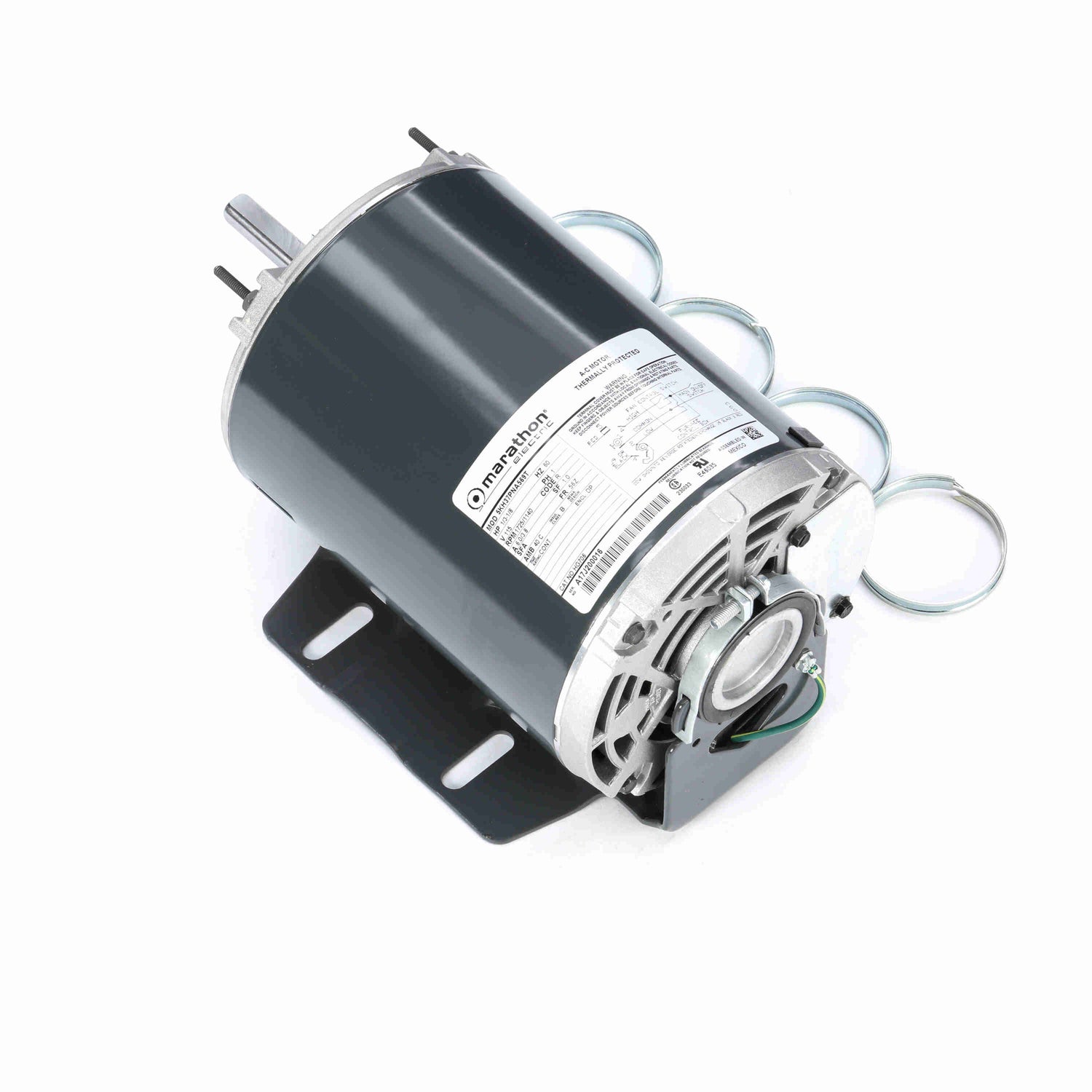

HG706,Marathon Fan and Blower Motor, replace with SGK2034

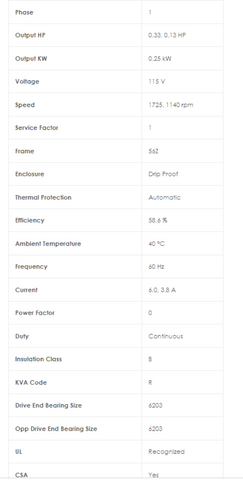

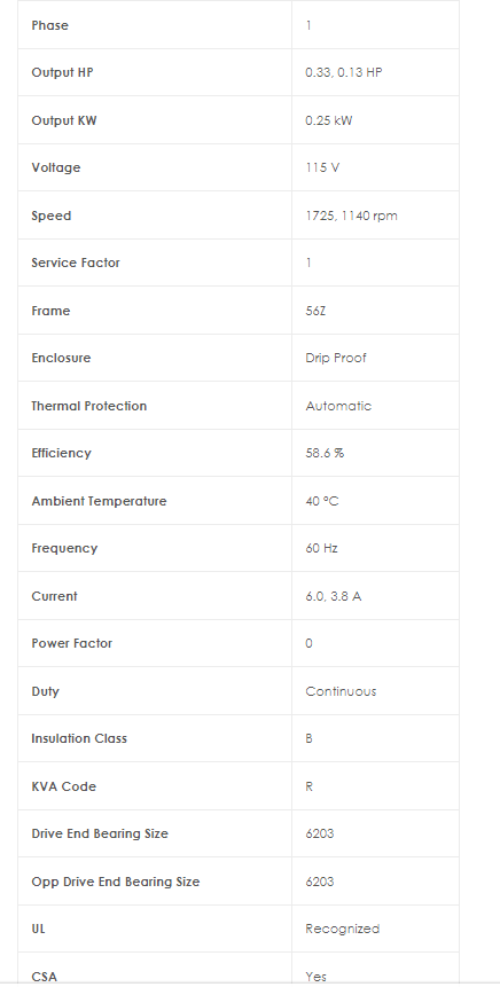

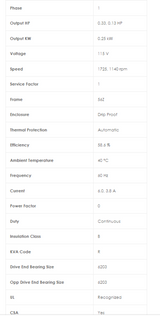

Nameplate Specifications
Phase 1
Output HP 0.33, 0.13 HP
Output KW 0.25 kW
Voltage 115 V
Speed 1725, 1140 rpm
Service Factor 1
Frame 56Z
Enclosure Drip Proof
Thermal Protection Automatic
Efficiency 58.6 %
Ambient Temperature 40 °C
Frequency 60 Hz
Current 6.0, 3.8 A
Power Factor 0
Duty Continuous
Insulation Class B
KVA Code R
Drive End Bearing Size 6203
Opp Drive End Bearing Size 6203
UL Recognized
CSA Yes
CE No
Number of Speeds 2
Technical Specifications
Electrical Type Split Phase
Starting Method SM
Poles 4
Rotation Clockwise/Counterclockwise
Mounting Resilient Base
Motor Orientation ANY
Drive End Bearing BALL
Opp Drive End Bearing BALL
Frame Material Rolled Steel
Overall Length 11.01 in
Frame Length 6.62 in
Shaft Diameter 0.500 in
Shaft Extension 2 in
General Specifications
UPC 722856040244
Weight 20.00 LB
Packaged Length 13.69 IN
Packaged Width 7.13 IN
Packaged Height 7.50 IN
HTC 8501.40.4040
Country of Origin Mexico
  • Automatic reset thermal protector prevents overheating.
  • Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
  • Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
  • Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
  • Vertical/horizontal mounting for proper placement of the fan within airflow
