H165, 0.33Hp, 1725 RPM, 115 V, 1 Ph, 60 Hz, Open Drip Proof, Frame 48Z, 5KH32JN3128X

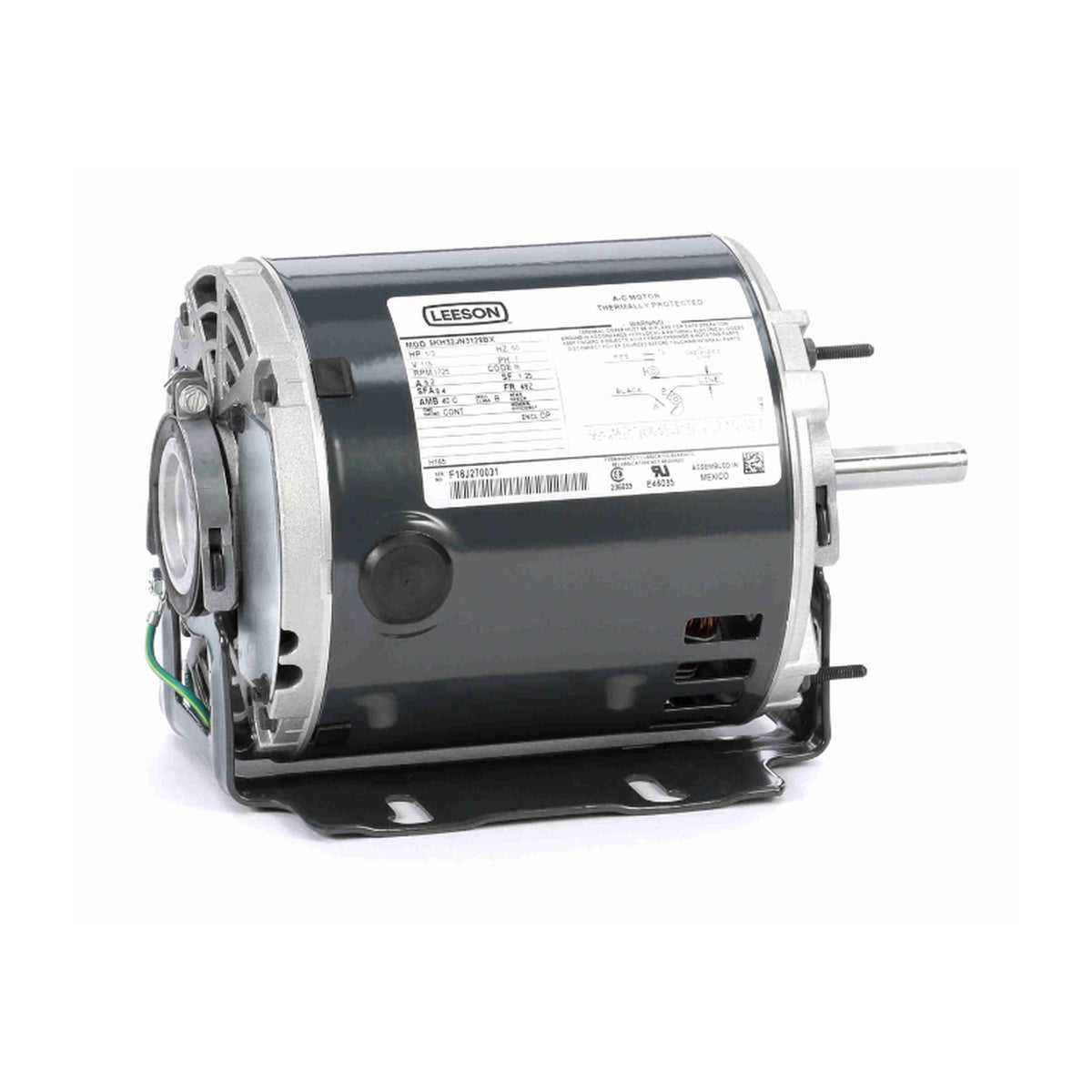

This fan and blower motor is a single-phase HVAC/R motor delivering approximately 0.33 Hp at 1725 RPM, designed for continuous-duty applications in air handling systems. It features a compact 48Z frame with an open drip-proof enclosure and resilient base mounting.

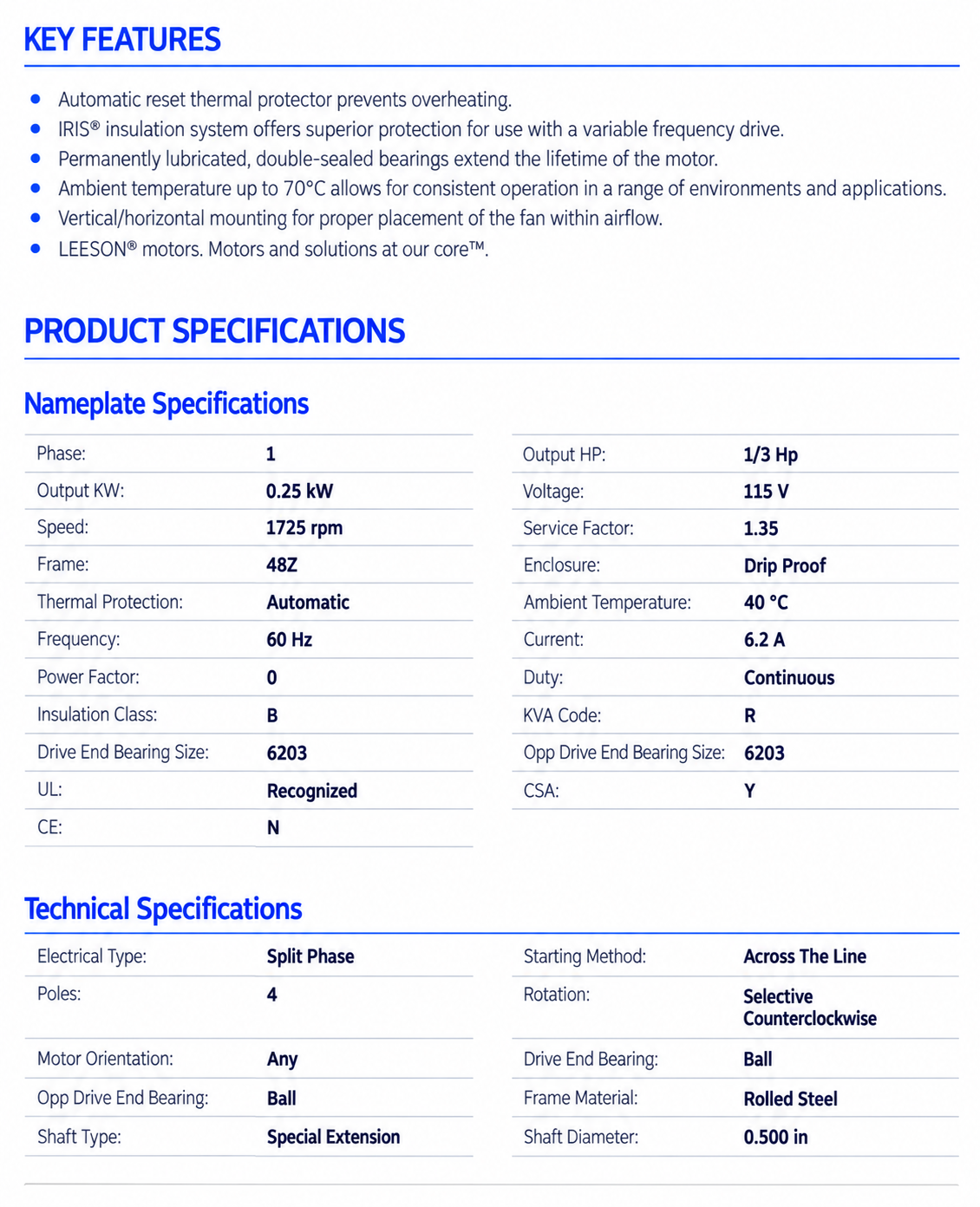

KEY FEATURES

• Model: H165

• Product Type: Fan and Blower Motor

• Horsepower: 0.33 Hp

• Voltage: 115 V @ 60 Hz

• Speed: 1725 RPM

• Frame: 48Z

• Enclosure: Open Drip Proof (ODP)

• Service Factor: 1.35

• Efficiency: 57.4 %

• Current: 6.2 A

• Duty: Continuous

• Insulation Class: B

• Thermal Protection: Automatic

• Mounting: Resilient Base

• Shaft: 1/2" diameter × 1‑7/8" length

• Bearings: Ball bearings

• Frame Material: Rolled Steel

• Rotation: CW/CCW

• Number of Speeds: 1

• IP Code: 12

• Certifications: UL, CSA

• Ambient Rating: 40 °C

The motor’s compact 48Z frame and resilient base mounting make it well-suited for HVAC blower applications, offering reliable single-phase performance with reversible rotation and thermal protection.
