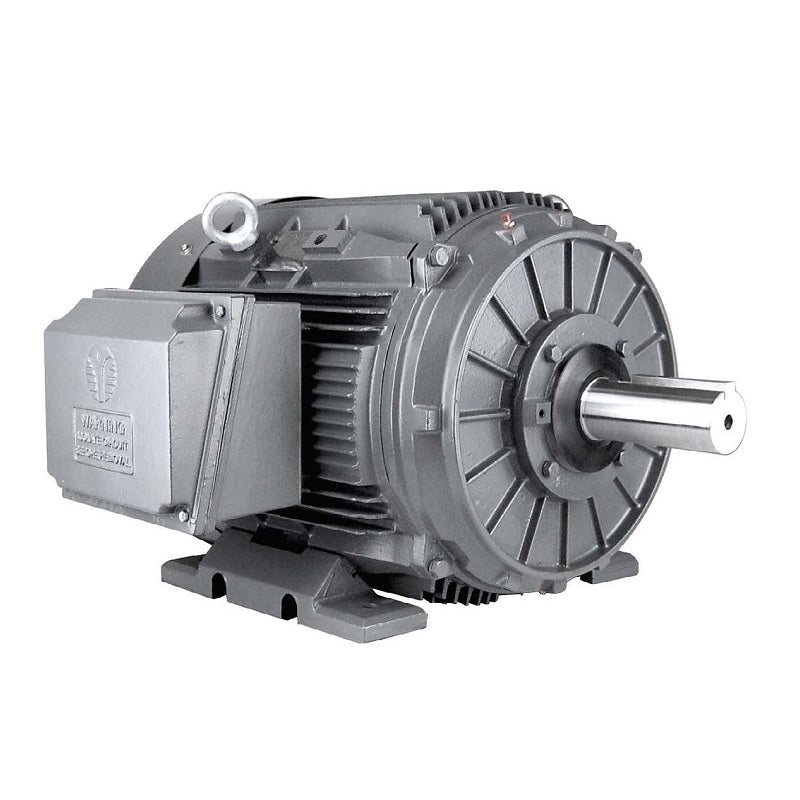

GRC0254F, TECHTOP, 25HP, 1800 RPM, FR: 284T, TEFC, 600V, TXC284T25U4B,

TECHTOP

  • $1,800.90


TECHTOP, GRC0254F, PREMIUM MOTOR

  • 25 HP
  • 1800 RPM
  • 575 VOLTS
  • FRAME:284T
  • PREMIUM EFFICENCY
  • CAST IRON CONSTRUCTION
  • VFD SUITABLE
  • 50/60 HZ
  • 3 PHASES
  • TEFC ENCLOSURE

Three phase, enhanced performance cast iron, premium efficient NEMA design B motors. Features a multi-mount arrangement incorporating bolt on feet* or flange mount configuration. 2, 4 and 6 pole, 1 to 250HP, ideal for numerous light and heavy duty industrial applications.

Standard Features • *Removable feet F1, F2, F0 field convertible up to and including 326T frame, F2 convertible 364T and larger • 1.25 Service Factor through 326T frame, 1.15 Service Factor for larger frames with 60Hz operation / 1.0 Service Factor with 50Hz operation • 36 month warranty • Cast iron construction with C and D flange kits available • Cast Iron fan cover kits available • Cast iron conduit box is 90o rotatable • 1045 steel shaft though 405T, 4140 grade for 444T and larger • Regreasable bearings 254T frame and larger • Shear stabalized polyurea grease • CSA Certified for Class I, Division II, Groups A, B, C and D / Class I, Zone 2, Groups IIC, IIB, IIA • Anti-microbial (tropicalization) on stator winding • Surface finish: • Alkyd enamel RAL7024 - Graphite Gray • Stainless steel nameplate • Corrosion resistant hardware • Ultra high strength, reusable lifting straps included with motors 254T frame and large
