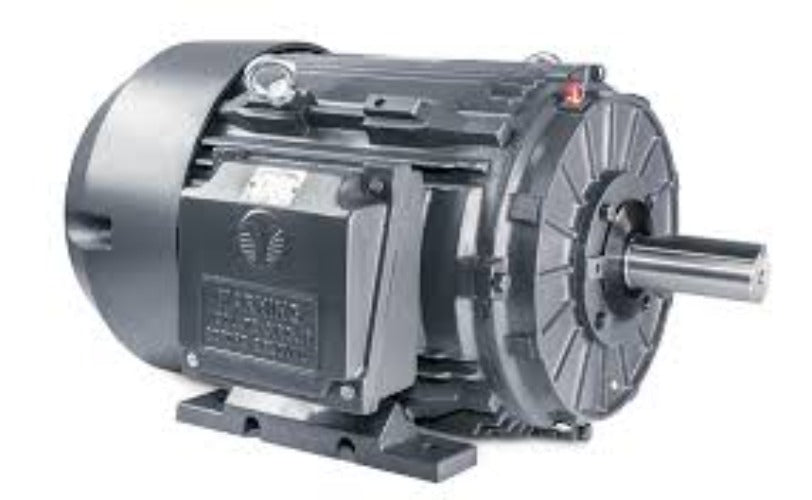

GRC0154F, Techtop, 15 Hp, 1800 Rpm, 575 Volts, TXC254T15U4B,FRAME 254T

GRC0154F, TXC254T15U4B, Techtop

• 15 Hp
• 1800 Rpm
• 575 Volts
• Frame 254T
• Amps 14.4A
• Enclosure Tefc
• Premium Efficiency
• Nema Premium
• Cast iron Casting
• Vfd suitable
• Techtop

Three phase, enhanced performance cast iron, premium efficient NEMA design B torque motors. Features a multi-mount arrangement incorporating bolt on feet* or flange mount configuration. 2, 4 and 6 pole, 1 to 250HP, ideal for numerous light and heavy duty industrial and severe applications. STANDARD FEATURES

• *Removable feet F1, F2, F0 field convertible up to and including 326T frame, F2 convertible 364T and larger
• 1.25 Service Factor through 326T frame, 1.15 Service Factor for larger frames with 60Hz operation / 1.0 Service Factor with 50Hz operation
• 36 Month warranty

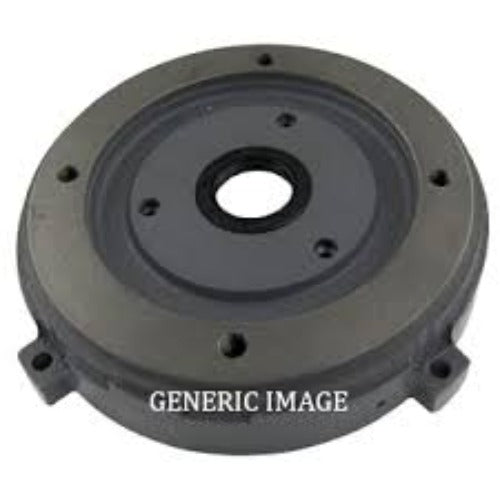

• Cast iron construction with C and D flange kits available
• Cast iron fan cover standard for all frame sizes
• Cast iron Conduit Box is 90º rotatable
• 1045 Steel shaft though 405T, 4140 grade for 444T and larger
• Regreasable bearings 254T frame and larger
• Mobil Polyrex EM polyurea grease
• CSA Certified for Class I, Division II, Groups A, B, C and D / Class I, Zone 2, Groups IIC, IIB, IIA
• IEEE 45 Marine Duty
• Anti-microbial (tropicalization) on stator winding
• Surface finish: - 2-Part epoxy coating RAL7024 - Graphite Gray
• Stainless steel nameplate
• Corrosion resistant hardware
• Ultra high strength, reusable lifting straps included with motors 254T frame and larger PREMIUM T-FRAME CAST IRON MOTORS 1 - 250HP, PREMIUM EFFICIENT, THREE PHASE, TEFC Energy Verified Only C US 224693 CC096A BASIC SPECIFICATIONS
• Power Ratings from 1 to 250HP
• Three Phase, 2, 4 and 6 pole, 50/60Hz
• 230/460V (Usable @ 208V), 460V & 575V 60Hz, 190/380V 50Hz
• Totally Enclosed Fan Cooled (TEFC)
• INSULATION AND INVERTER RATING
• Class F Insulation (Impregnation resin, magnet wire and insulation materials are Class H)
• Designed to Class B temperature rise
• Vacuum Impregnated
• Inverter Rated 15:1 Constant Torque, 30:1 Variable Torque (1.0 S.F. on VFD Power).
• Exceeds NEMA MG 1 Part 31.4.4.2
