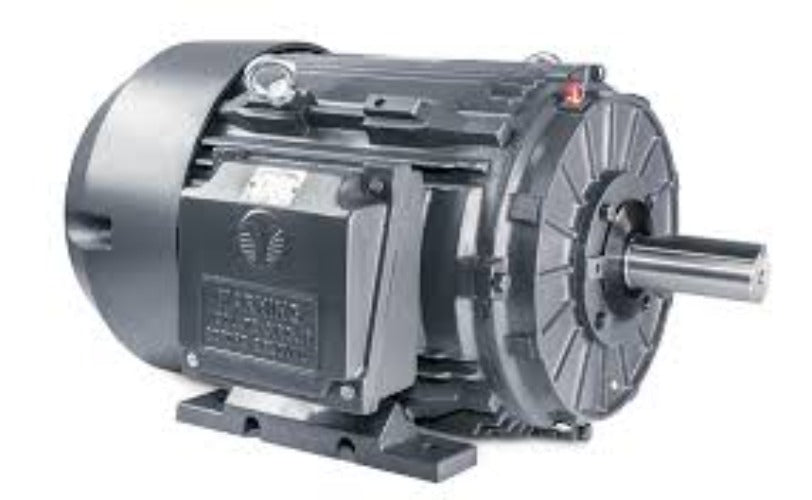

GRC0152F, Techtop, 15 Hp, 3600 Rpm, 575 Volts, TXC254T15U2B,FRAME 254T

TECHTOP

  • $1,391.48


GRC0152F, TXC254T15U2B, Techtop, GRC015F-TC

  • 15 Hp
  • 3600 Rpm
  • 575 Volts
  • Frame 254T
  • Amps 14.2A
  • Enclosure Tefc
  • Premium Efficiency
  • Nema Premium
  • Cast iron Casting
  • Vfd suitable
  • Techtop

Three phase, enhanced performance cast iron, premium efficient NEMA design B torque motors. Features a multi-mount arrangement incorporating bolt on feet* or flange mount configuration. 2, 4 and 6 pole, 1 to 250HP, ideal for numerous light and heavy duty industrial and severe applications. STANDARD FEATURES

• *Removable feet F1, F2, F0 field convertible up to and including 326T frame, F2 convertible 364T and larger

• 1.25 Service Factor through 326T frame, 1.15 Service Factor for larger frames with 60Hz operation / 1.0 Service Factor with 50Hz operation

• 36 Month warranty

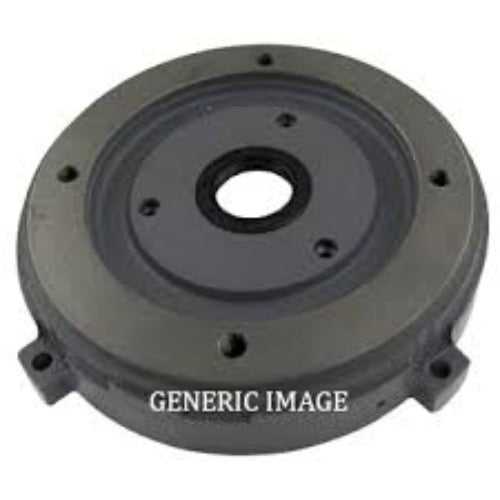

• Cast iron construction with C and D flange kits available

• Cast iron fan cover standard for all frame sizes

• Cast iron Conduit Box is 90º rotatable

• 1045 Steel shaft though 405T, 4140 grade for 444T and larger

• Regreasable bearings 254T frame and larger

• Mobil Polyrex EM polyurea grease

• CSA Certified for Class I, Division II, Groups A, B, C and D / Class I, Zone 2, Groups IIC, IIB, IIA

• IEEE 45 Marine Duty

• Anti-microbial (tropicalization) on stator winding

• Surface finish: - 2-Part epoxy coating RAL7024 - Graphite Gray

• Stainless steel nameplate

• Corrosion resistant hardware

• Ultra high strength, reusable lifting straps included with motors 254T frame and larger PREMIUM T-FRAME CAST IRON MOTORS 1 - 250HP, PREMIUM EFFICIENT, THREE PHASE, TEFC Energy Verified Only C US 224693 CC096A BASIC SPECIFICATIONS

• Power Ratings from 1 to 250HP

• Three Phase, 2, 4 and 6 pole, 50/60Hz

• 230/460V (Usable @ 208V), 460V & 575V 60Hz, 190/380V 50Hz

• Totally Enclosed Fan Cooled (TEFC)

INSULATION AND INVERTER RATING

• Class F Insulation (Impregnation resin, magnet wire and insulation materials are Class H) • Designed to Class B temperature rise

• Vacuum Impregnated • Inverter Rated 15:1 Constant Torque, 30:1 Variable Torque (1.0 S.F. on VFD Power).

• Exceeds NEMA MG 1 Part 31.4.4.2
