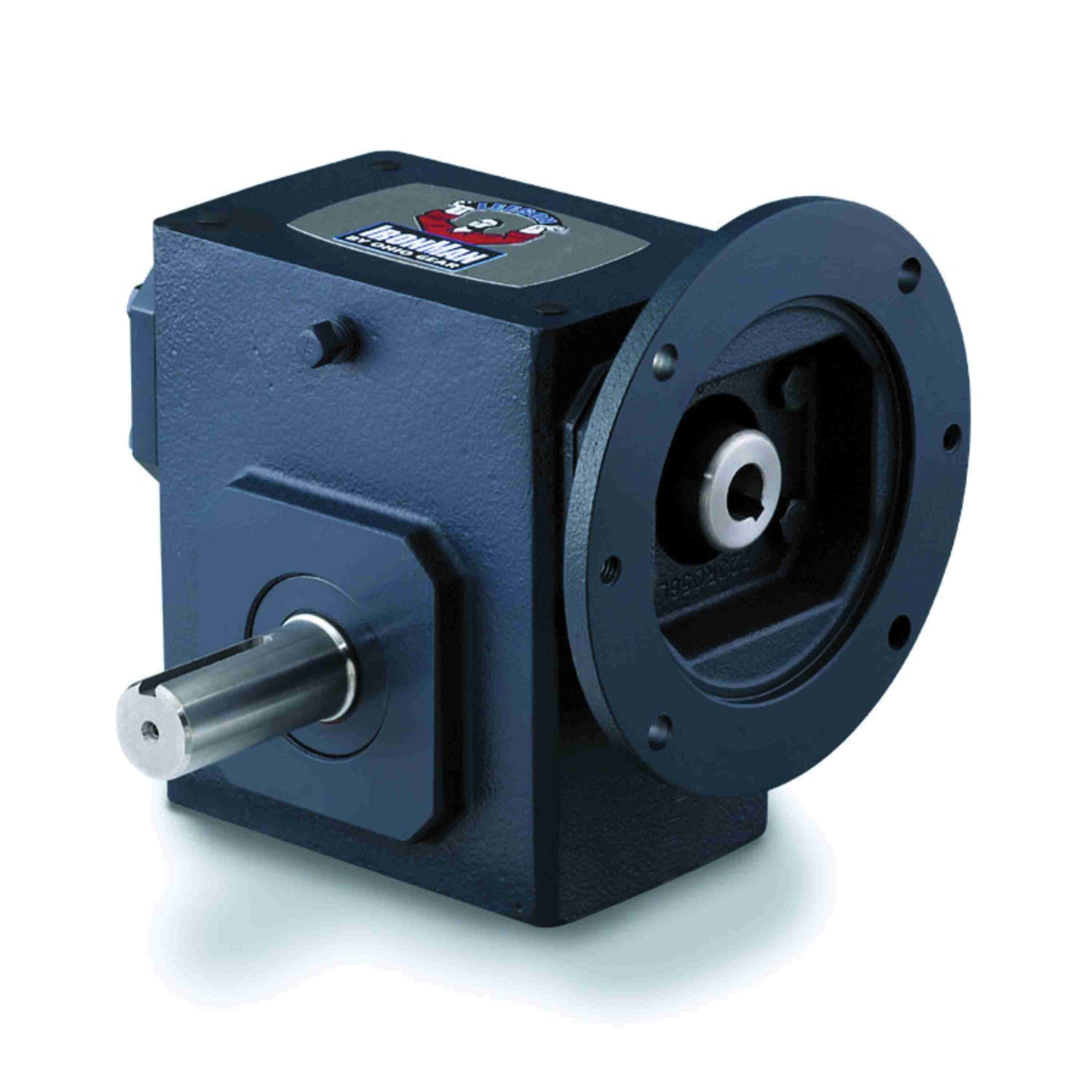

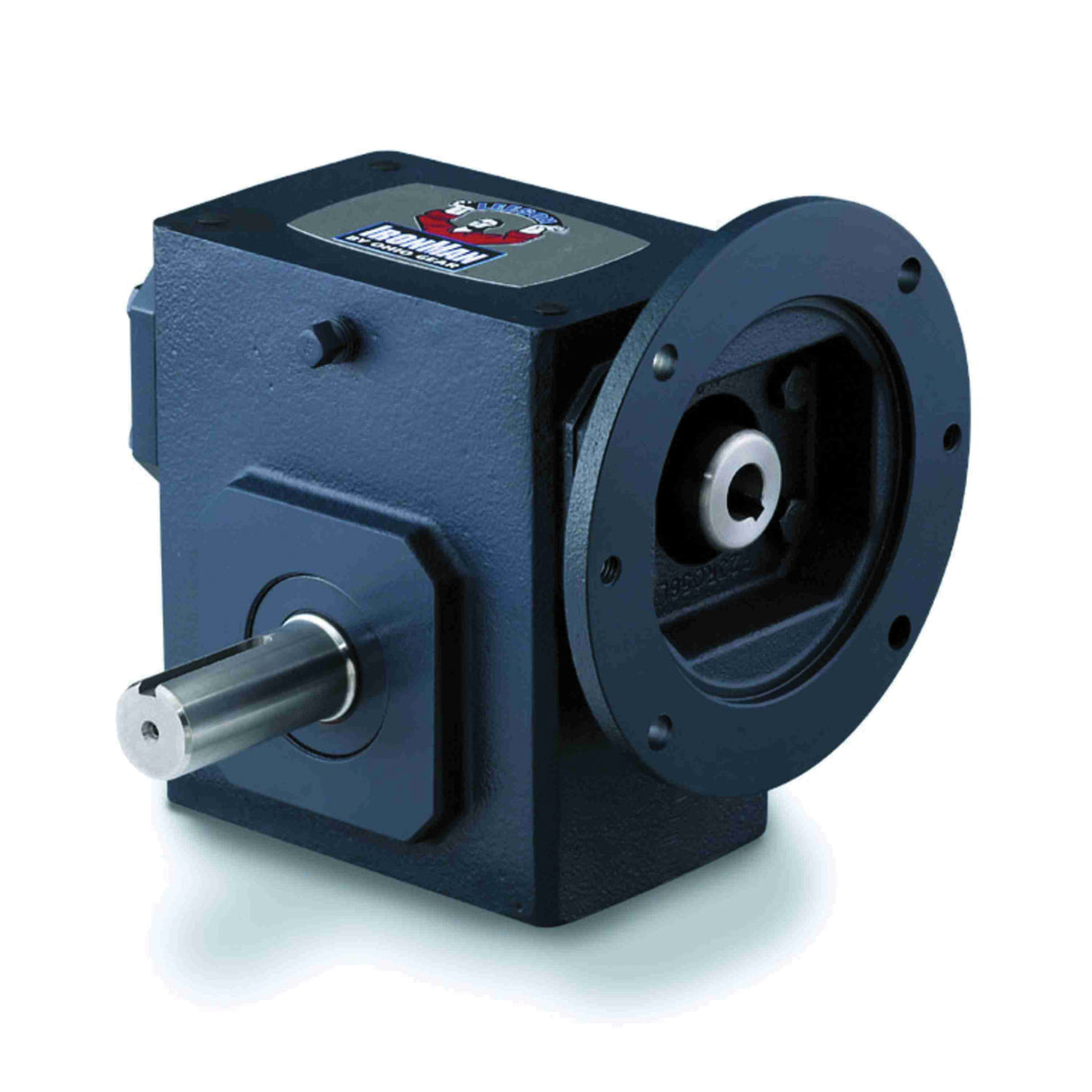

GR8420056,00 / BM842-40-R-56 *ratio 40: 1 R -56, GEARBOX IRON MAN

GR8420056,00 / BM842-40-R-56 *ratio 40: 1 R -56, GEARBOX IRON MAN

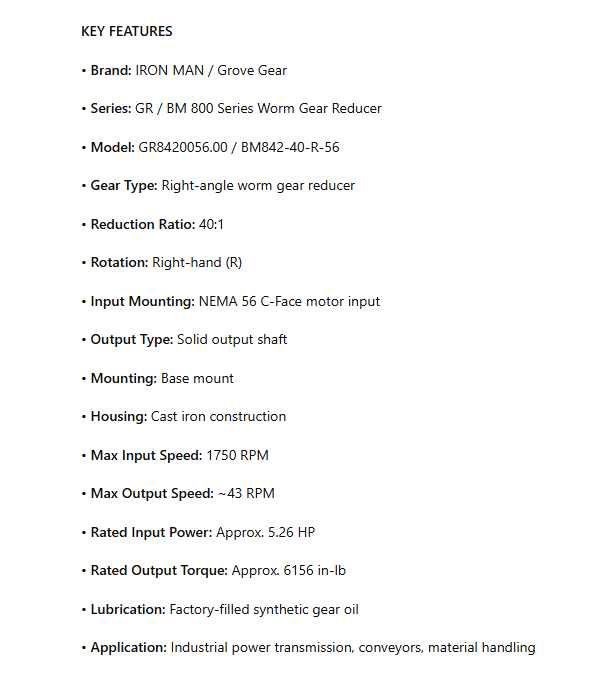

KEY FEATURES

• Brand: IRON MAN / Grove Gear

• Series: GR / BM 800 Series Worm Gear Reducer

• Model: GR8420056.00 / BM842-40-R-56

• Gear Type: Right-angle worm gear reducer

• Reduction Ratio: 40:1

• Rotation: Right-hand (R)

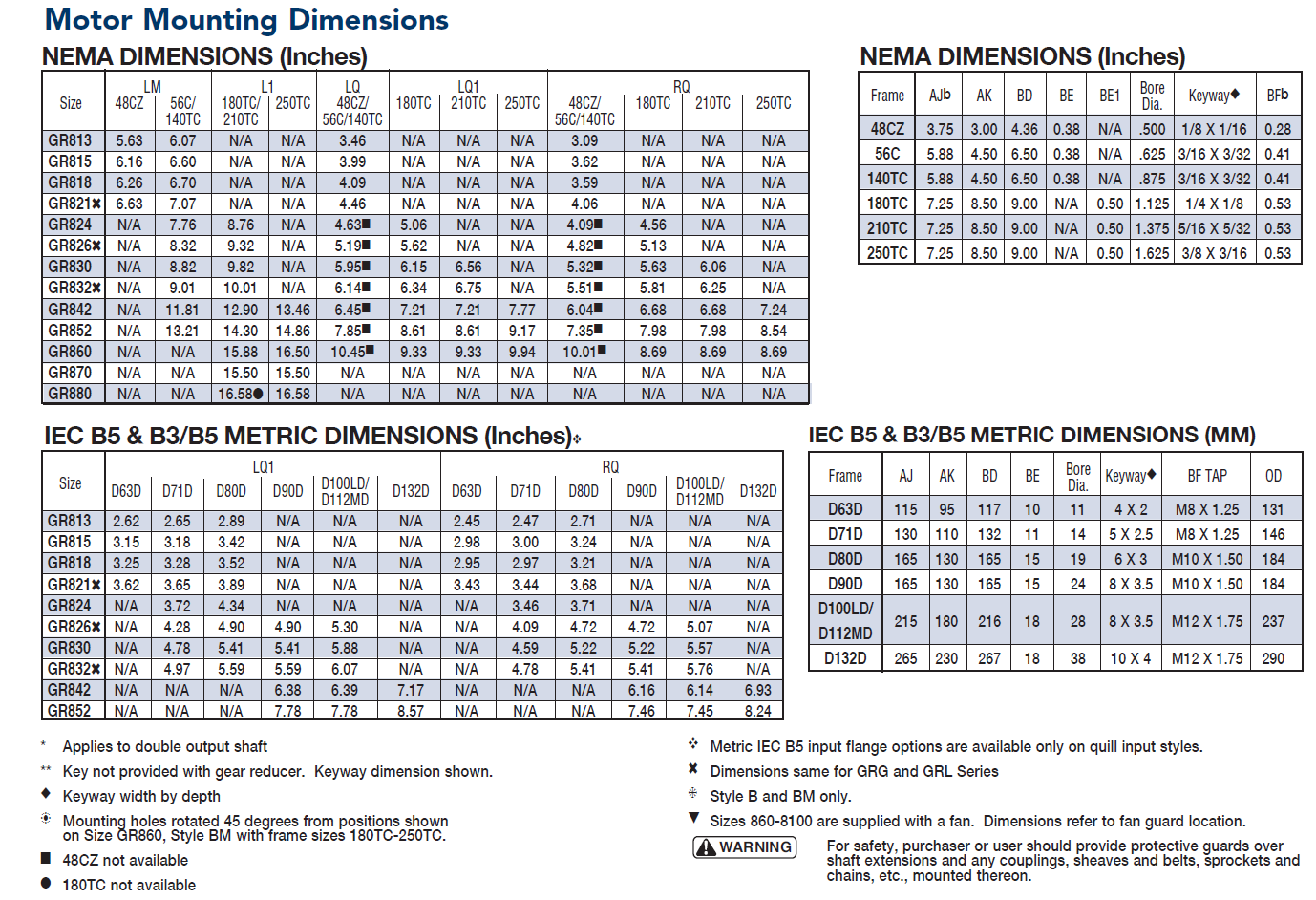

• Input Mounting: NEMA 56 C-Face motor input

• Output Type: Solid output shaft

• Mounting: Base mount

• Housing: Cast iron construction

• Max Input Speed: 1750 RPM

• Max Output Speed: ~43 RPM

• Rated Input Power: Approx. 5.26 HP

• Rated Output Torque: Approx. 6156 in-lb

• Lubrication: Factory-filled synthetic gear oil

• Application: Industrial power transmission, conveyors, material handling
