GR8130073.00, 0.285Hp, 1750 RPM, 50:1 Ratio, Right‑Angle Worm Gear Reducer, Cast Iron, GR-BMQ813-50-L-56

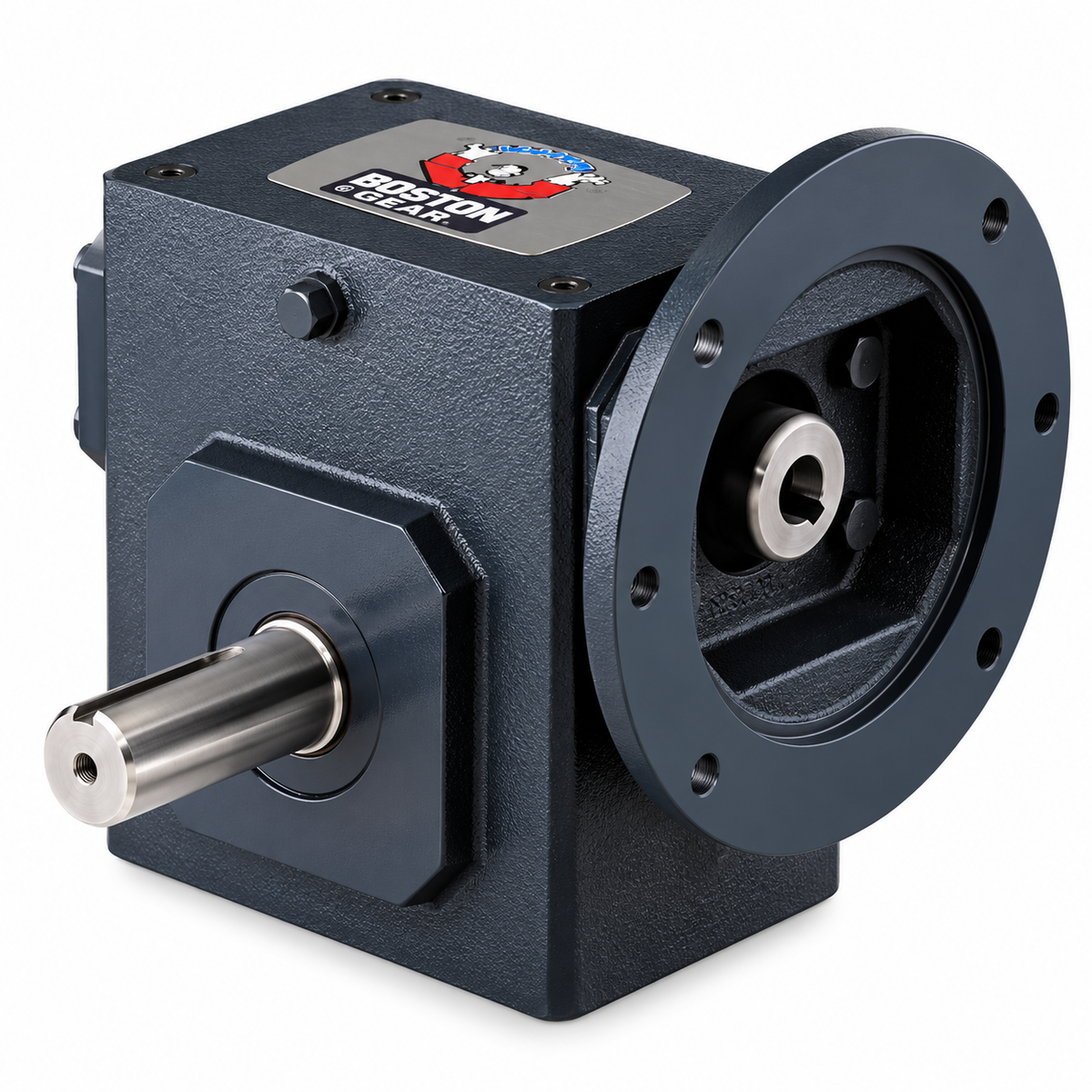

This right‑angle single‑reduction worm gear reducer is designed for heavy‑duty industrial applications, offering robust torque transmission in a compact cast iron housing with quill input and left‑shaft output.

KEY FEATURES

• Part Number: GR8130073.00

• Model: GR‑BMQ813‑50‑L‑56

• Product Type: Worm Speed Reducer

• Horsepower: 0.285 Hp Input

• Ratio: 50:1

• Speed (Input/Output): 1750 RPM Input / 35 RPM Output

• Frame: 56C

• Enclosure: Cast Iron Housing

• Input Type: C‑Face Quill Input

• Output Type: Left Solid Shaft

• Output Torque: 327 in‑lb

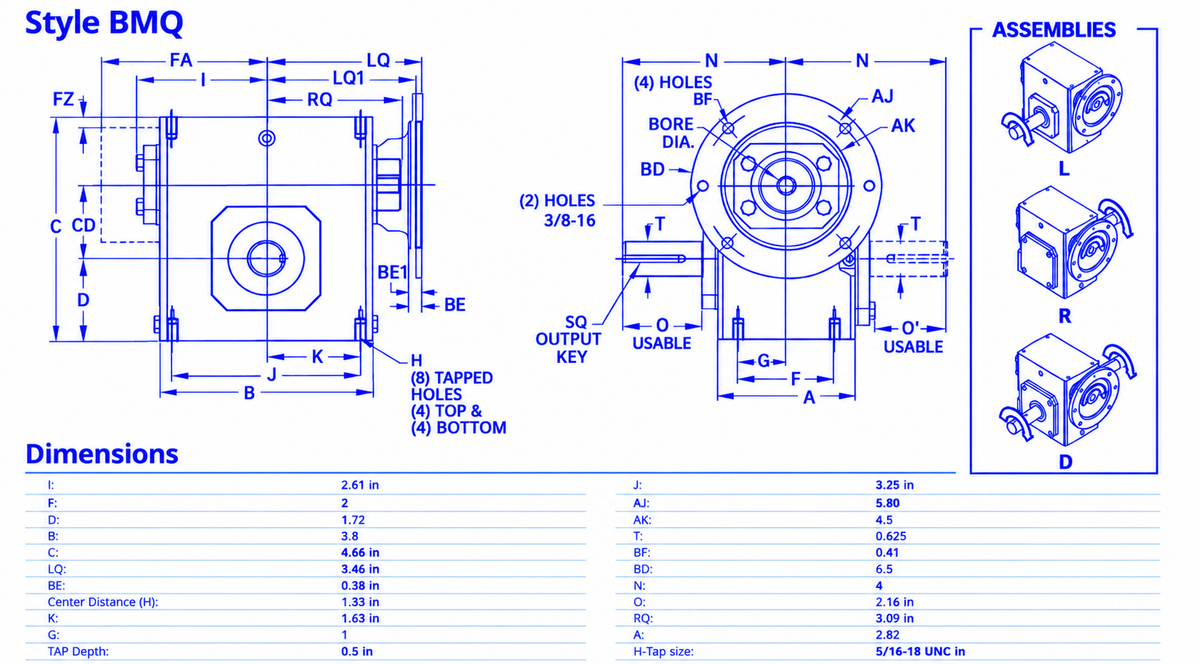

• Center Distance: 1.33 in

• Weight: 17.0 lb

• Mounting: Base Mount

• Lubrication: PAG Synthetic Oil (i mea)

• Seals: Viton double‑lip seals

• Bearings: Oversized high‑speed bearings and tapered roller bearings on output shaft

• Housing Material: One‑piece cast iron, CNC machined

• Service Factor: 1

The design emphasizes durability, precision alignment, and resistance to shock loading and frequent reversing.
