G845, 0.75Hp, 1800 RPM, 575 V, 3Ph, 60 Hz, EPFC, Frame 56C, 056T17G5319

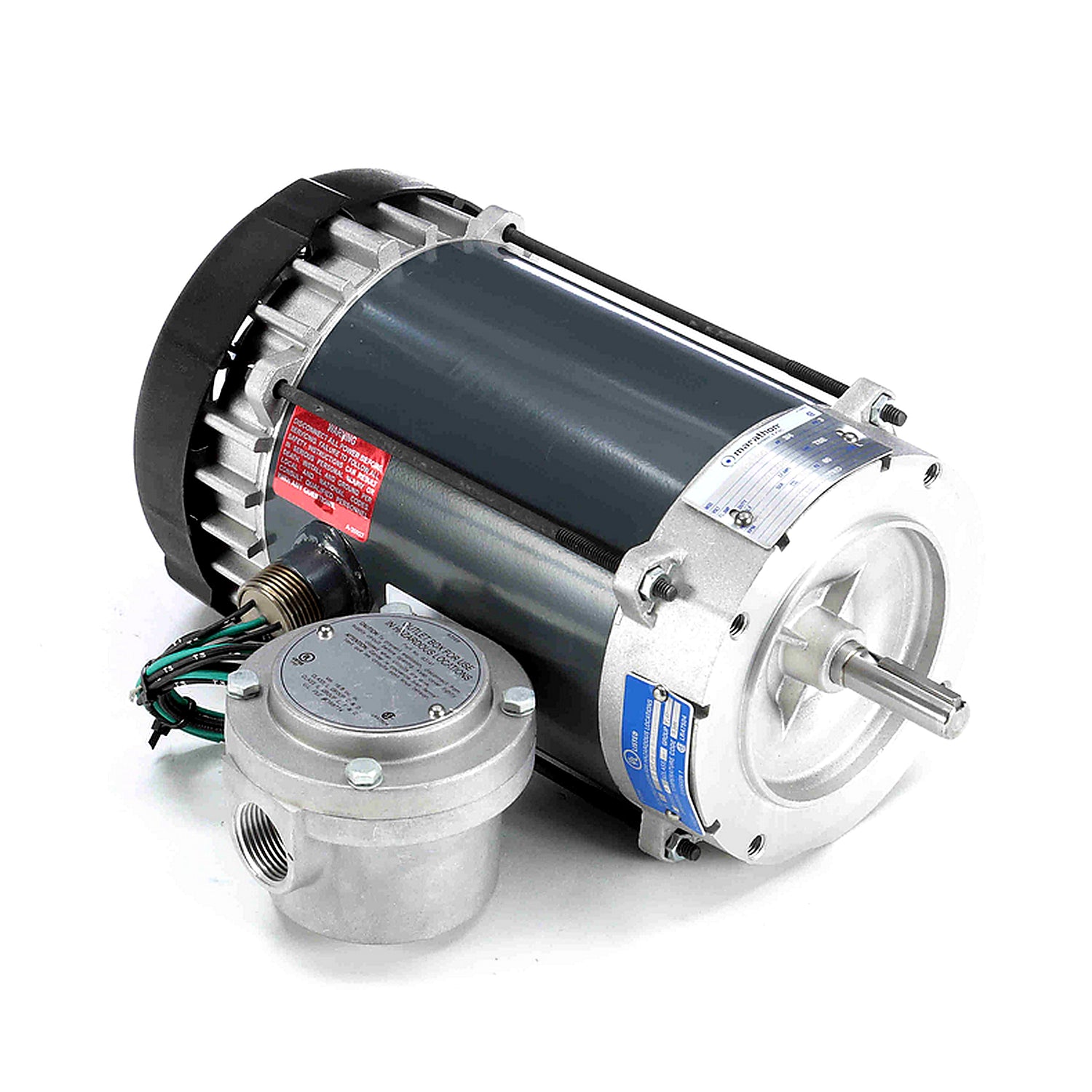

This three‑phase explosion‑proof fan‑cooled AC motor is engineered for continuous duty in hazardous environments, delivering 0.75 Hp at 1800 RPM and optimized for 575 V, 60 Hz operation in a compact 56C frame.

Replace 35E374G123, VXM050742-5

KEY FEATURES

• Model: G845

• Horsepower: 0.75 Hp (0.56 kW)

• Voltage: 575 V @ 60 Hz – 3 Phase

• Speed: 1800 RPM @ 60 Hz

• Frame: 56C

• Enclosure: Explosion Proof Fan Cooled (EPFC)

• Duty: Continuous

• Insulation Class: B

• Service Factor: 1.00

• Efficiency: 75.5 %

• Power Factor: 66.3 %

• Current: 1.2 A (full load)

• Thermal Protection: Automatic

• Design Code: B – KVA Code L

• Mounting: F1 only (round mount)

• Shaft: NEMA 56 – 0.625 in diameter

• Bearings: Ball (6203 DE & ODE)

• Frame Material: Rolled Steel

• Rotation: Reversible

• Number of Speeds: 1

• IP Code: IP54

• Certifications: UL Listed, CSA Certified

• Ambient Rating: 40 °C

• Hazardous Location: Class I Groups C & D; Class II Groups F & G; Division I; Temperature Code T3B

The explosion‑proof construction and 575 V rating make this motor ideal for demanding industrial settings where safety and reliable performance are critical.
