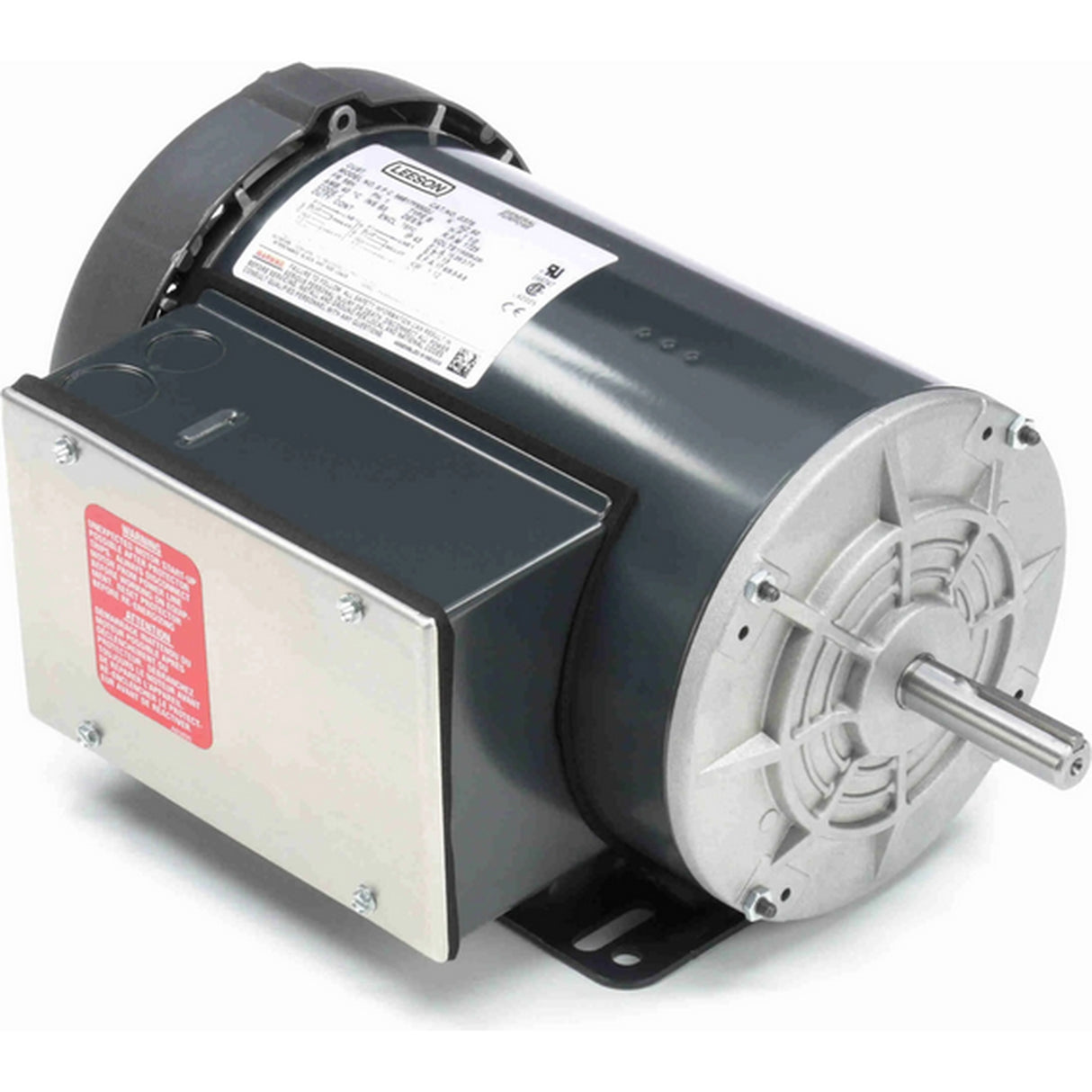

G378, 1.50Hp, 1800 RPM, 115/208‑230 V, 1 Ph, 60 Hz, TEFC, Frame 56H, 056B17F5302

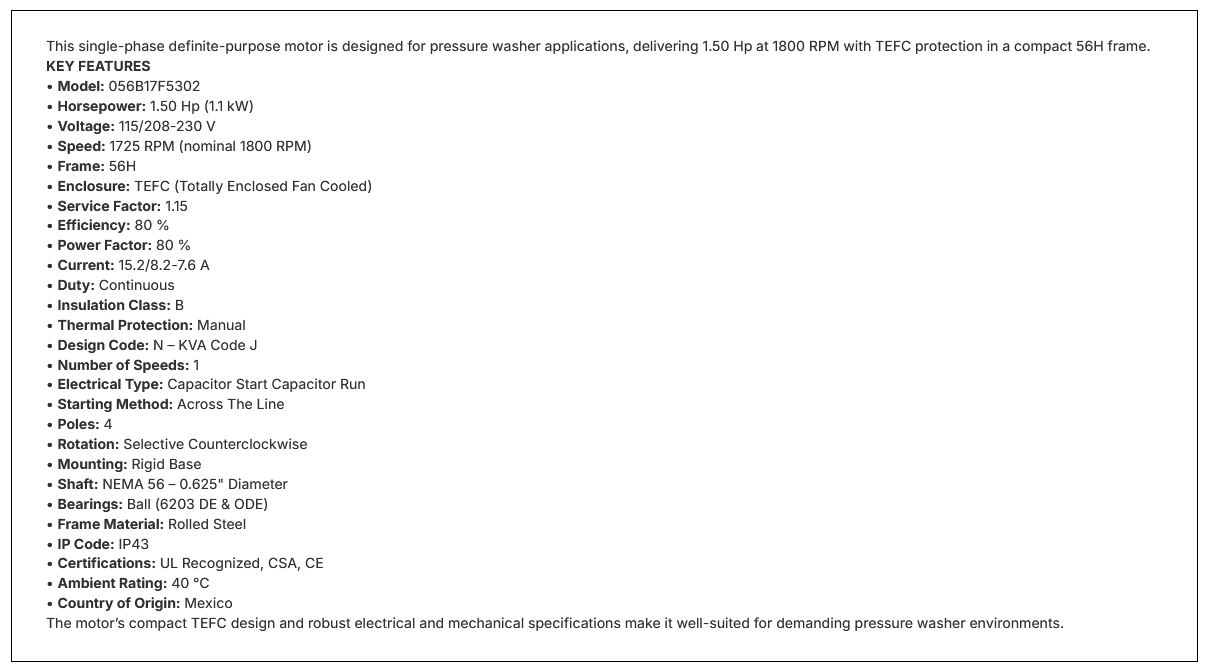

This single-phase definite-purpose motor is designed for pressure washer applications, delivering 1.50 Hp at 1800 RPM with TEFC protection in a compact 56H frame.

KEY FEATURES

• Model: 056B17F5302

• Horsepower: 1.50 Hp (1.1 kW)

• Voltage: 115/208‑230 V

• Speed: 1725 RPM (nominal 1800 RPM)

• Frame: 56H

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Service Factor: 1.15

• Efficiency: 80 %

• Power Factor: 80 %

• Current: 15.2/8.2‑7.6 A

• Duty: Continuous

• Insulation Class: B

• Thermal Protection: Manual

• Design Code: N – KVA Code J

• Number of Speeds: 1

• Electrical Type: Capacitor Start Capacitor Run

• Starting Method: Across The Line

• Poles: 4

• Rotation: Selective Counterclockwise

• Mounting: Rigid Base

• Shaft: NEMA 56 – 0.625" Diameter

• Bearings: Ball (6203 DE & ODE)

• Frame Material: Rolled Steel

• IP Code: IP43

• Certifications: UL Recognized, CSA, CE

• Ambient Rating: 40 °C

• Country of Origin: Mexico

The motor’s compact TEFC design and robust electrical and mechanical specifications make it well-suited for demanding pressure washer environments.
