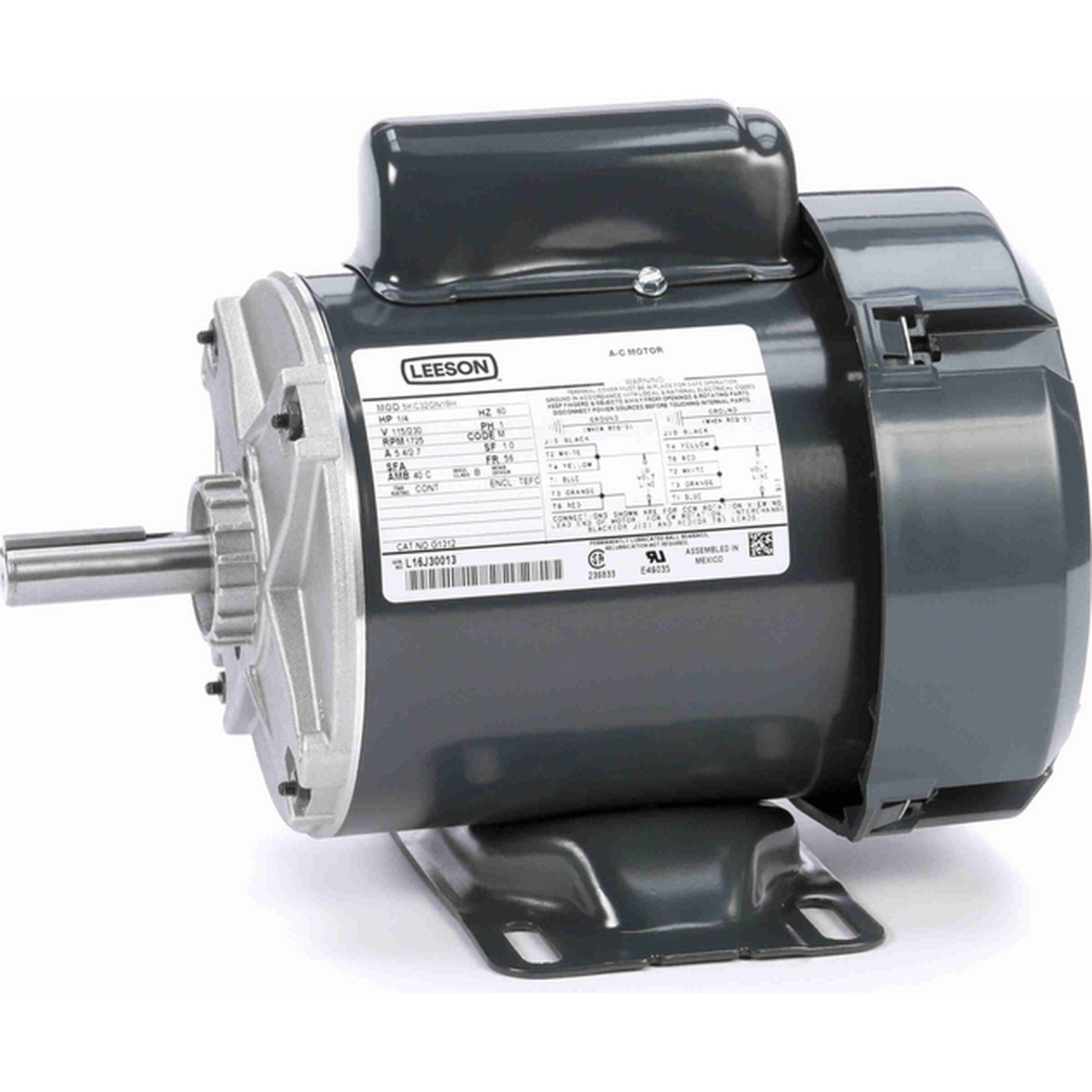

G1312, 0.25Hp, 1725 RPM, 115/230 V, 1 Ph, 60 Hz, TEFC, Frame 56, Capacitor‑Start, 5KC32GN19

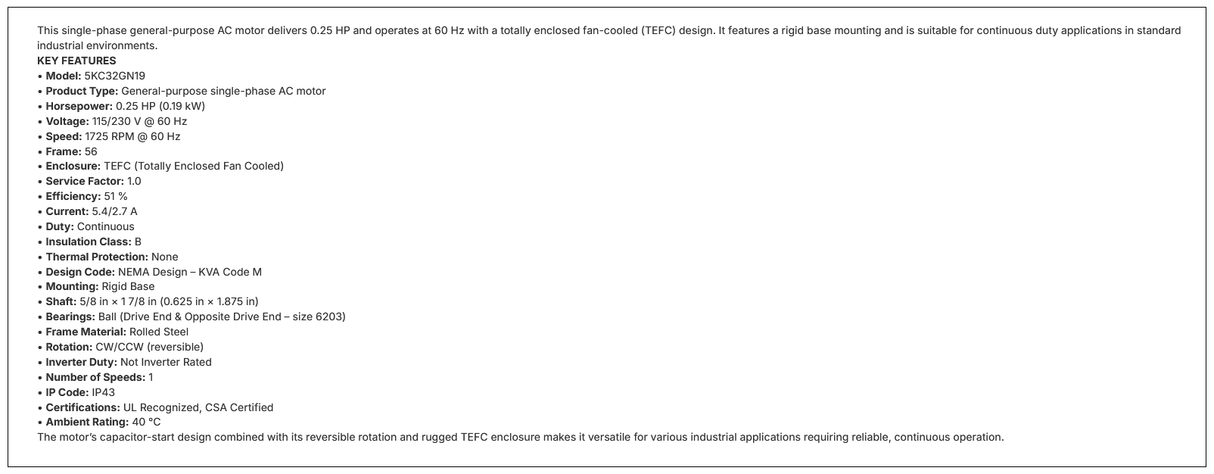

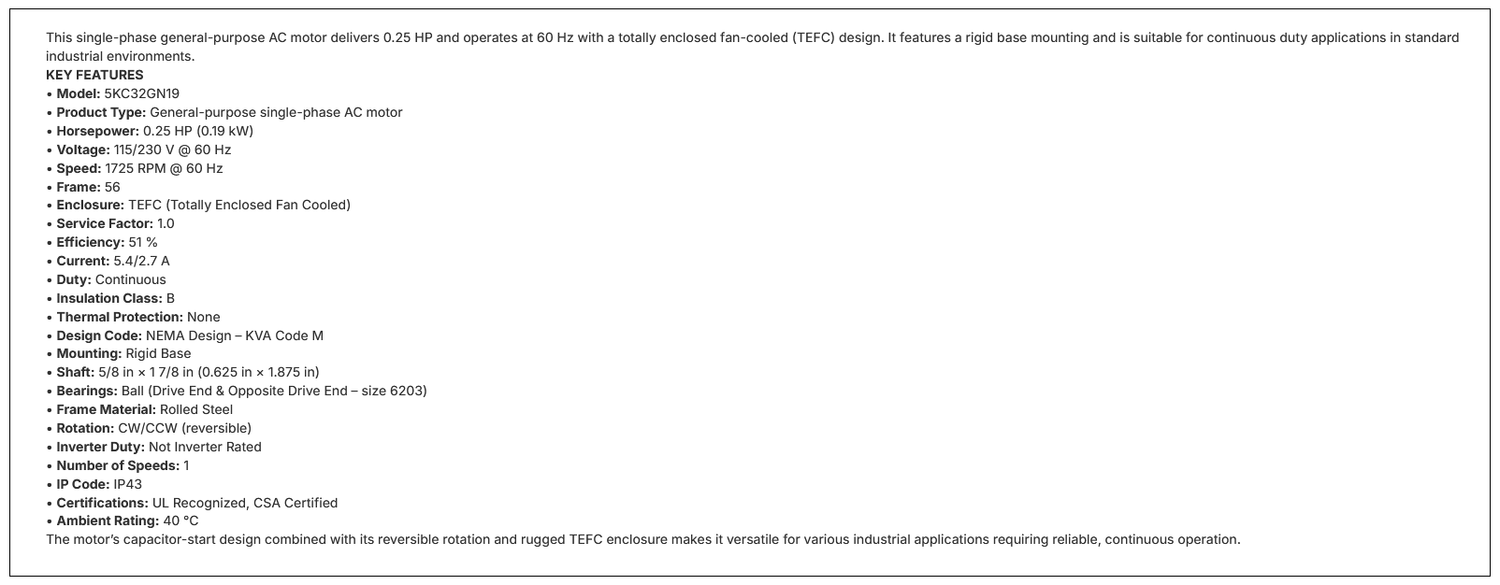

This single‑phase general‑purpose AC motor delivers 0.25 HP and operates at 60 Hz with a totally enclosed fan‑cooled (TEFC) design. It features a rigid base mounting and is suitable for continuous duty applications in standard industrial environments.

Replace: TF.25104W01DOE

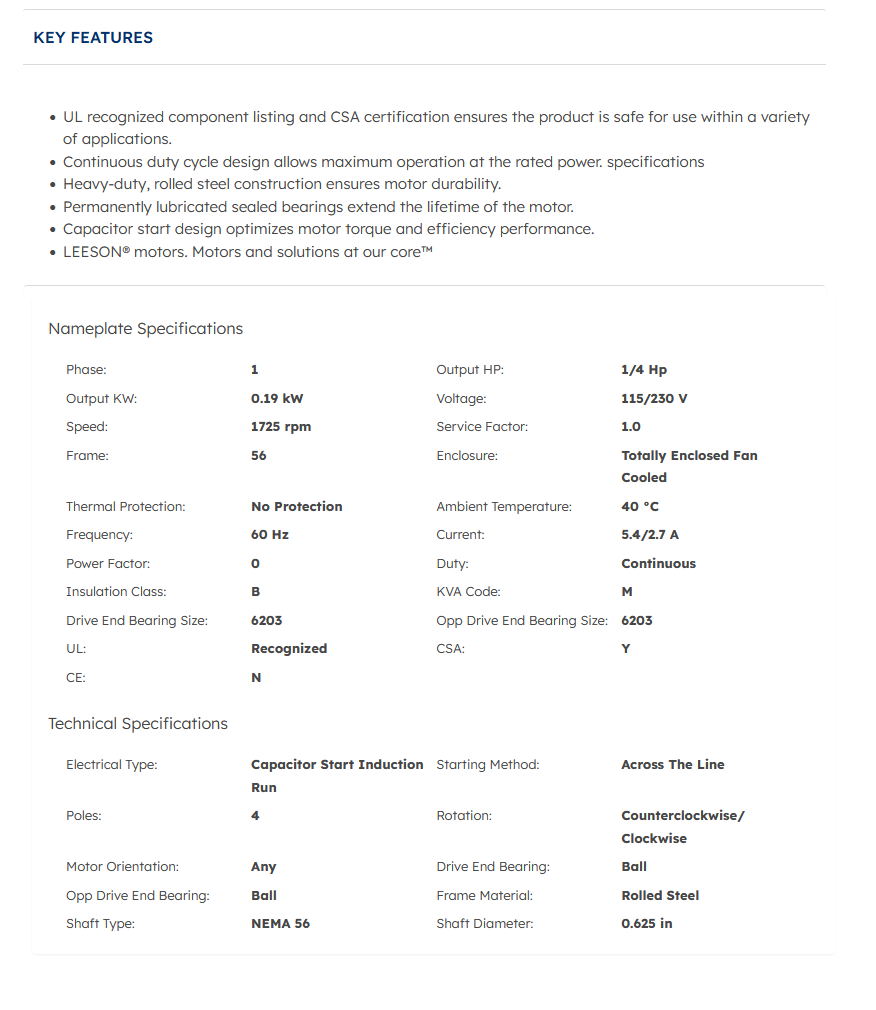

KEY FEATURES

• Model: 5KC32GN19

• Product Type: General‑purpose single‑phase AC motor

• Horsepower: 0.25 HP (0.19 kW)

• Voltage: 115/230 V @ 60 Hz

• Speed: 1725 RPM @ 60 Hz

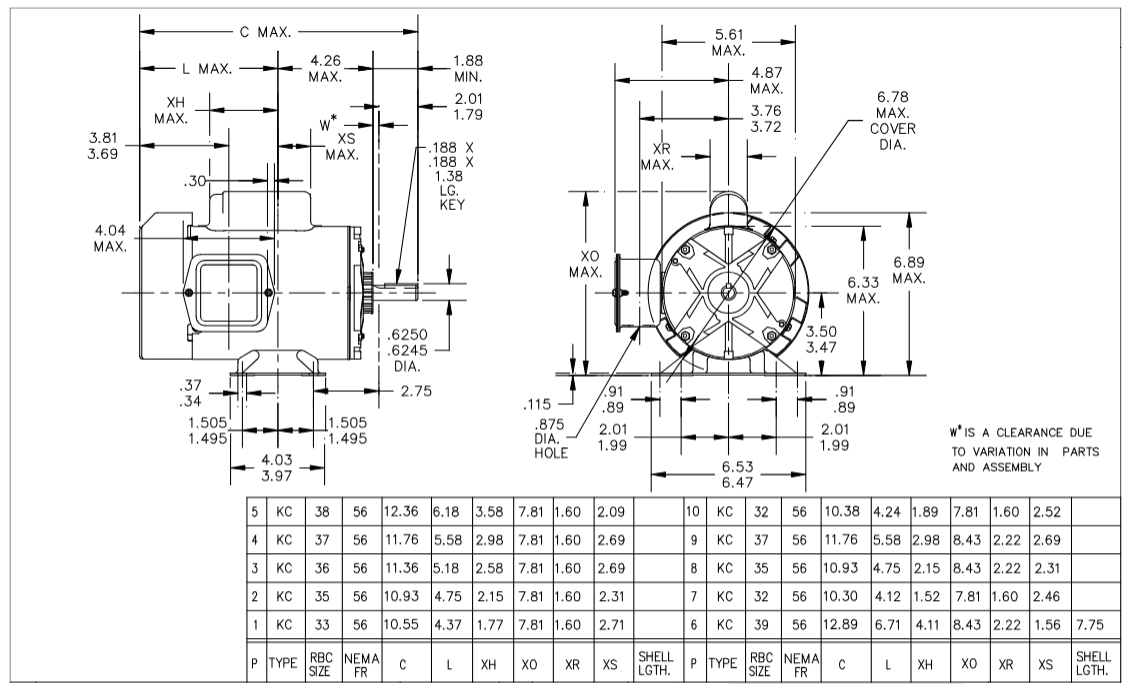

• Frame: 56

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Service Factor: 1.0

• Efficiency: 51 %

• Current: 5.4/2.7 A

• Duty: Continuous

• Insulation Class: B

• Thermal Protection: None

• Design Code: NEMA Design – KVA Code M

• Mounting: Rigid Base

• Shaft: 5/8 in × 1 7/8 in (0.625 in × 1.875 in)

• Bearings: Ball (Drive End & Opposite Drive End – size 6203)

• Frame Material: Rolled Steel

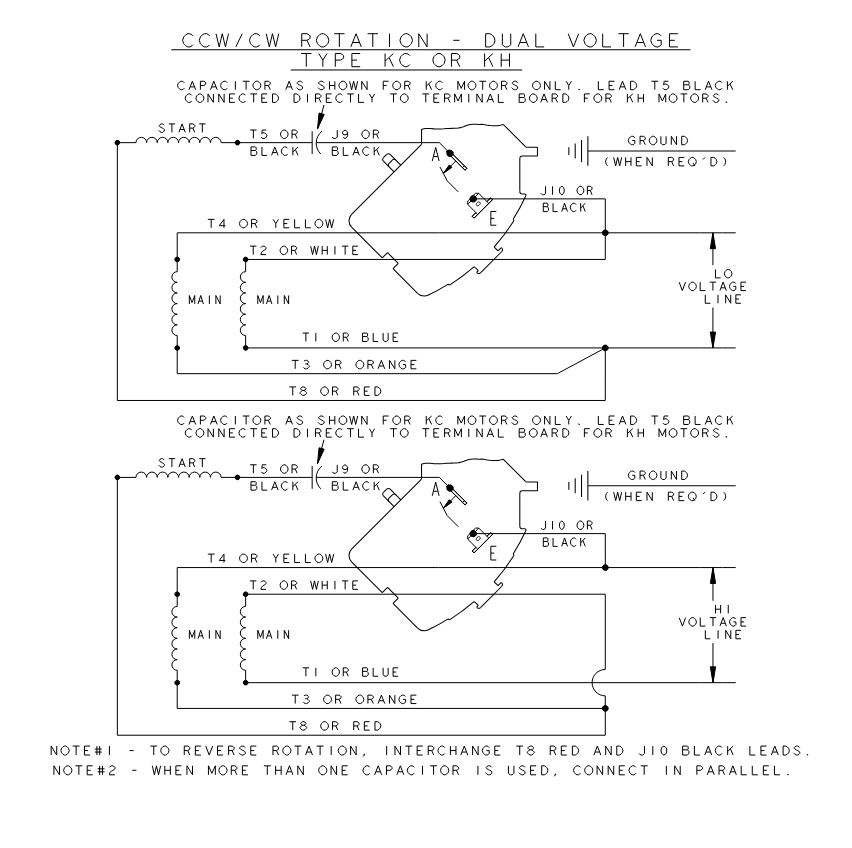

• Rotation: CW/CCW (reversible)

• Inverter Duty: Not Inverter Rated

• Number of Speeds: 1

• IP Code: IP43

• Certifications: UL Recognized, CSA Certified

• Ambient Rating: 40 °C

The motor’s capacitor‑start design combined with its reversible rotation and rugged TEFC enclosure makes it versatile for various industrial applications requiring reliable, continuous operation.
