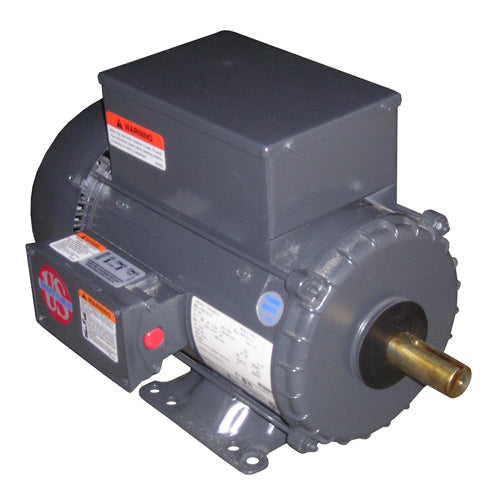

FD7CM2K21, Agri Duty High Torque, 7.5Hp, 1740 RPM, 230V, 1 Ph, Frame 215T, TEFC, F853

FD7CM2K21, Agri Duty High Torque, 7.5Hp, 1740 RPM, 230V, 1 Ph, Frame 215T, TEFC, F853

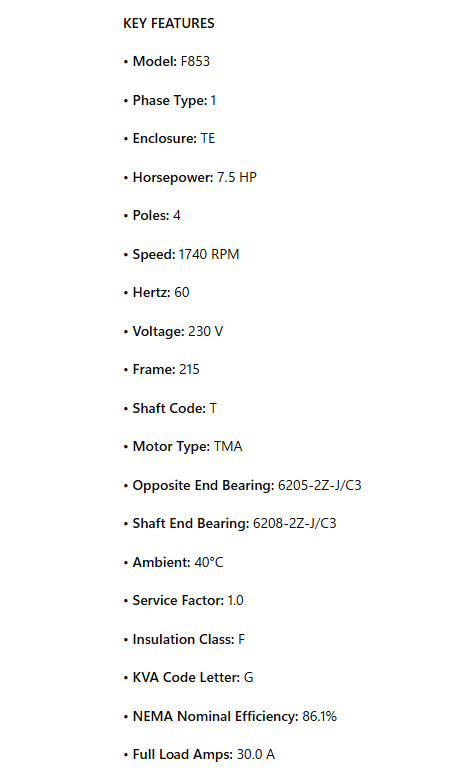

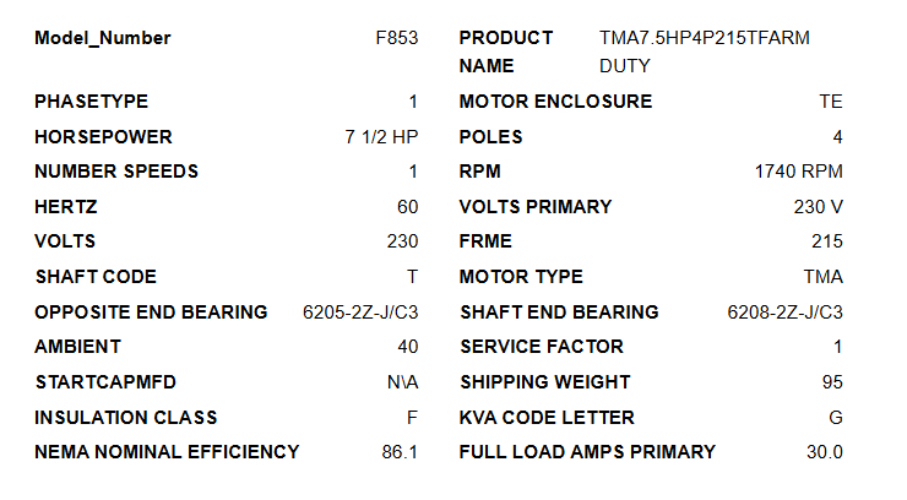

KEY FEATURES

• Model: F853

• Phase Type: 1

• Enclosure: TE

• Horsepower: 7.5 HP

• Poles: 4

• Speed: 1740 RPM

• Hertz: 60

• Voltage: 230 V

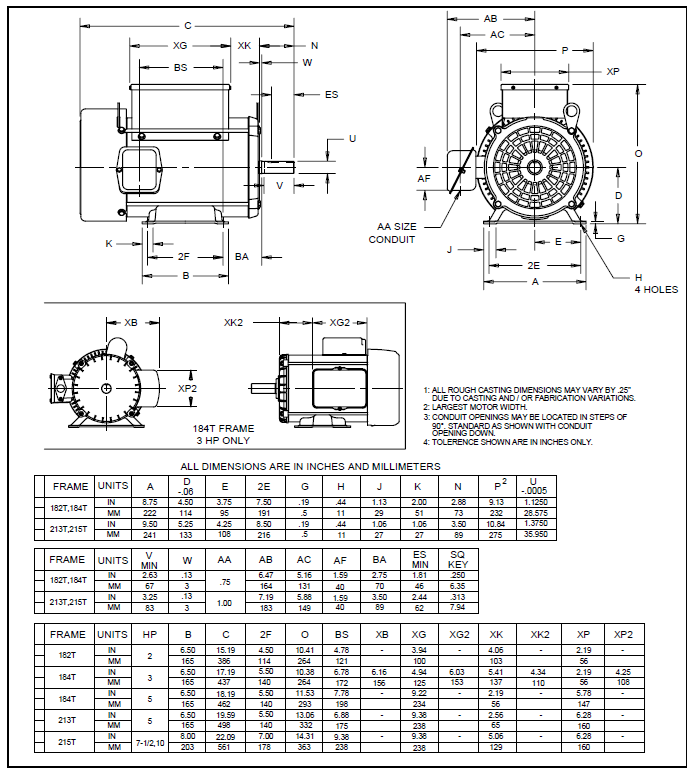

• Frame: 215

• Shaft Code: T

• Motor Type: TMA

• Opposite End Bearing: 6205-2Z-J/C3

• Shaft End Bearing: 6208-2Z-J/C3

• Ambient: 40°C

• Service Factor: 1.0

• Insulation Class: F

• KVA Code Letter: G

• NEMA Nominal Efficiency: 86.1%

• Full Load Amps: 30.0 A
