FD32CA1P14, 1.5Hp, 3600 Rpm, 115-230V, Frame:143TZ, Teao, Aeration fan,

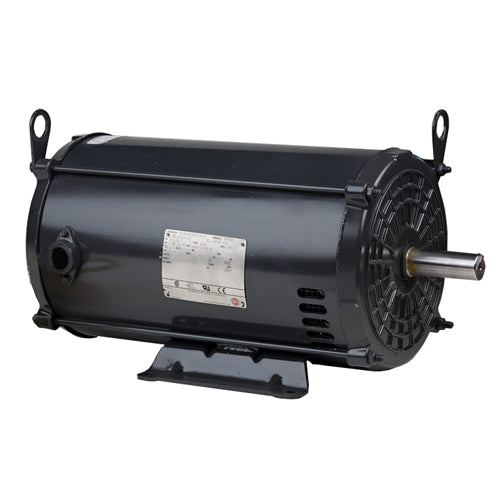

FD32CA1P14, C063JCA5265012B, Aeration fan motor

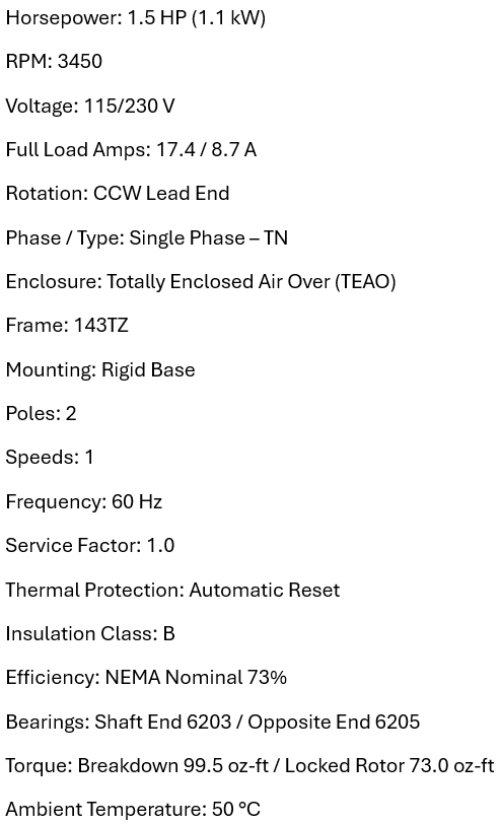

• Horsepower: 1.5 HP (1.1 kW)

• RPM: 3450

• Voltage: 115/230 V

• Full Load Amps: 17.4 / 8.7 A

• Rotation: CCW Lead End

• Phase / Type: Single Phase – TN

• Enclosure: Totally Enclosed Air Over (TEAO)

• Frame: 143TZ

• Mounting: Rigid Base

• Poles: 2

• Speeds: 1

• Frequency: 60 Hz

• Service Factor: 1.0

• Thermal Protection: Automatic Reset

• Insulation Class: B

• Efficiency: NEMA Nominal 73%

• Bearings: Shaft End 6203 / Opposite End 6205

• Torque: Breakdown 99.5 oz-ft / Locked Rotor 73.0 oz-ft

• Ambient Temperature: 50 °C
