US Motors - Nidec | SKU:
EMN-019089

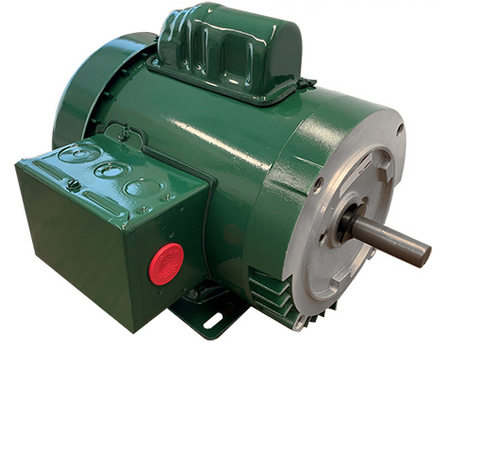

FD2CM2PHC,T063DCF2312015B, E-Motor, 2Hp, 1725 Rpm, 115/230V, Fr:145TC
Regular price
$529.23
Unit price
/
Unavailable
FD2CM2PHC,T063DCF2312015B, E-Motor, 2Hp, 1725 Rpm, 115/230V, Fr:145TC is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
FD2CM2PHC,T063DCF2312015B, E-Motor, 2Hp, 1725 Rpm, 115/230V, Fr:145TC
Regular price
$529.23
Unit price
/
Unavailable
Description
Description
FD2CM2PHC, T063DCF2312015B,
| Specification | Details |
|---|---|
| Motor Enclosure | TEFC (Totally Enclosed Fan Cooled) |
| Horsepower (HP) | 2 HP |
| Kilowatts (kW) | 1.5 kW |
| Poles | 4 |
| Number of Speeds | 1 |
| Speed (RPM) | 1725 RPM |
| Frequency (Hz) | 60 Hz |
| Voltage (Primary) | 115/230 V |
| Voltage | 115 V |
| Voltage 2 | 230 V |
| Frame | 145TC |
| Shaft Code | TC |
| Stator Diameter | 6.3 in |
| Stack | 4.25 in |
| Mounting | C-Face |
| Motor Type | FHP |
| Opposite End Bearing | 6205 |
| Shaft End Bearing | 6203 |
| Ambient Temperature | 40°C |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Run Capacitor (MFD) | 60 MFD |
| Run Capacitor Voltage | 280 V |
| Start Capacitor (MFD) | 896 MFD |
| Thermal Protection | Manual Reset |
| Breakdown Torque | 230.7 oz-ft |
| Locked Rotor Torque | 331.9 oz-ft |
| Insulation Class | F |
| KVA Code Letter | H |
| Locked Rotor Amps | 113.8 A |
| NEMA Nominal Efficiency | 81.5% |
| Full Load Amps (Primary) | 18.9/9.4 A |
| Service Factor Amps (Primary) | 18.9/9.4 A |
