FD1CA1PZ, Aeration Fan Motors, 1Hp, 3450 RPM, 115/230V, 1PH, 60Hz, TEAO, Frame 56Z, C063JBZ5264012B

FD1CA1PZ, Aeration Fan Motors, 1Hp, 3450 RPM, 115/230V, 1PH, 60Hz, TEAO, Frame 56Z, C063JBZ5264012B

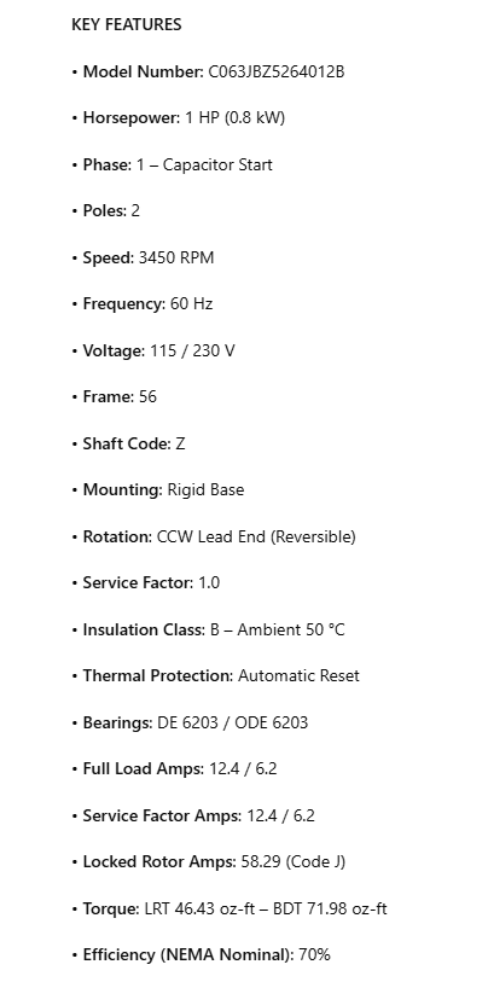

KEY FEATURES

• Model Number: C063JBZ5264012B

• Horsepower: 1 HP (0.8 kW)

• Phase: 1 – Capacitor Start

• Poles: 2

• Speed: 3450 RPM

• Frequency: 60 Hz

• Voltage: 115 / 230 V

• Frame: 56

• Shaft Code: Z

• Mounting: Rigid Base

• Rotation: CCW Lead End (Reversible)

• Service Factor: 1.0

• Insulation Class: B – Ambient 50 °C

• Thermal Protection: Automatic Reset

• Bearings: DE 6203 / ODE 6203

• Full Load Amps: 12.4 / 6.2

• Service Factor Amps: 12.4 / 6.2

• Locked Rotor Amps: 58.29 (Code J)

• Torque: LRT 46.43 oz-ft – BDT 71.98 oz-ft

• Efficiency (NEMA Nominal): 70%
